Shimadzu GC-2014 Service Manual

Chapter 5 Detector Unit
GC-2014 Service Manual
52

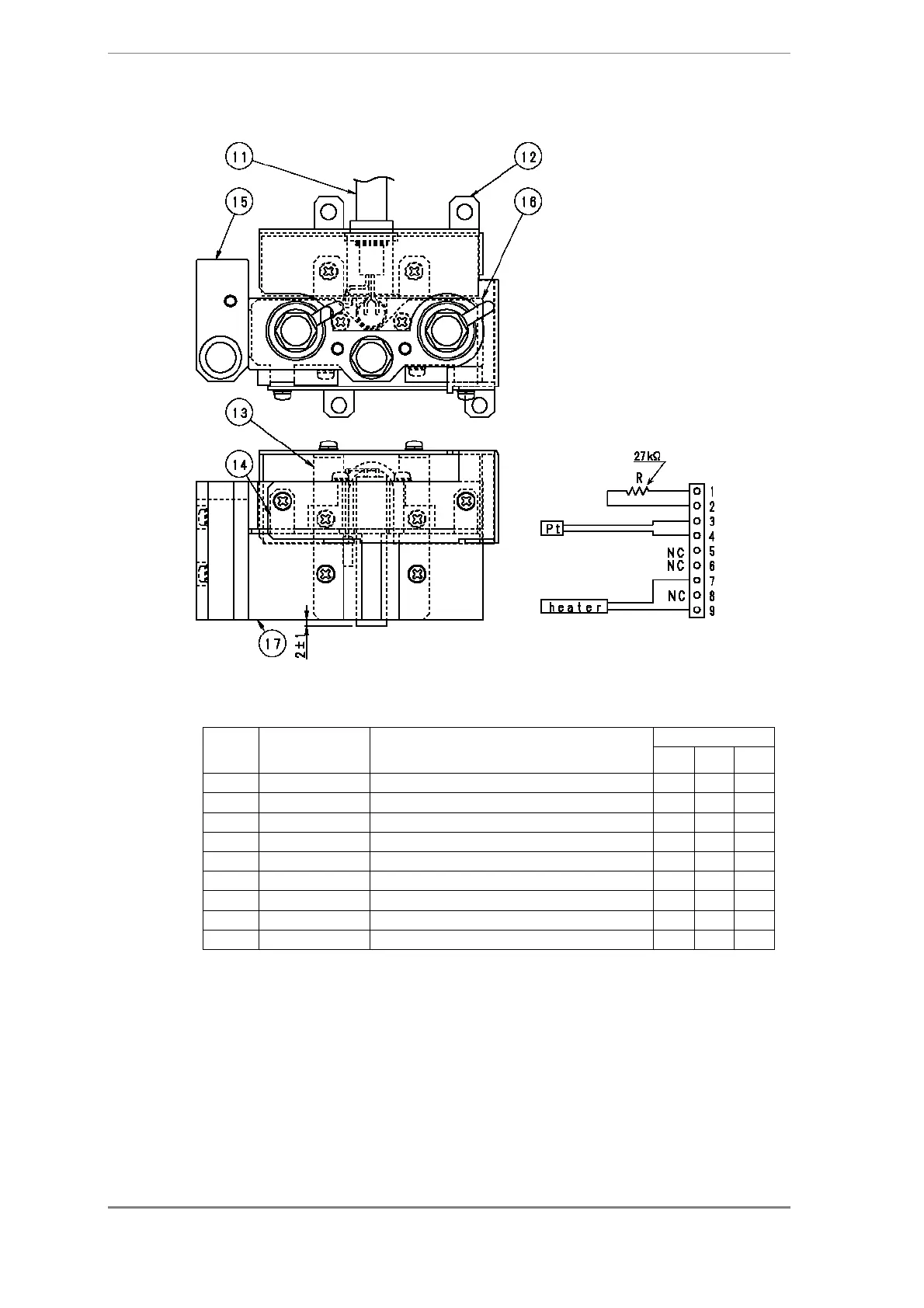

5.1.1 DET HEATER ASSY, FT
Parts List for DET HEATER ASSY, FT, S221-75086-44 (230 V), -41 (100 V), -42 (115 V)
Quantity
No. P/N Part Name
230 V 100 V 115 V
11
HEATER, PT ASSY, D-FID, 230 1
11
HEATER, PT ASSY, D-FID, 100 1
11
HEATER, PT ASSY, D-FID, 115 1
12
221-70125 DET, DUAL, UPPER COVER, TCD 1 1 1
13
221-70127 DET, DUAL, BLOCK PLATE A 1 1 1
14
221-70139 LOCK RING, DET, DUAL 1 1 1
15
221-70141 TCD BLOCK 1 1 1
16
221-70136 DET, DUAL, BLOCK, UPPER 1 1 1
17
221-70137 DET, DUAL, BLOCK, LOWER 1 1 1

Shimadzu GC-2014 Specifications

General

Type	Gas Chromatograph
Display	LCD
Maximum Heating Rate	120°C/min
Data Acquisition	Digital
Maximum Number of Detectors	4
Weight	Approx. 45 kg
Carrier Gas	Helium, Nitrogen, Hydrogen
Detector Options	FID, TCD, ECD, FPD
Injection Port	Split/Splitless, On-column
Gas Control	Electronic Flow Control (EFC)
Temperature Programming Rate	0.1 to 120 °C/min
Power Requirements	230 V AC, 50/60 Hz
Detector Temperature Range	Up to 400°C (depending on detector type)
