Shimadzu GC-2014 Service Manual

Chapter 2 Configuration of GC-2014
GC-2014 Service Manual
24

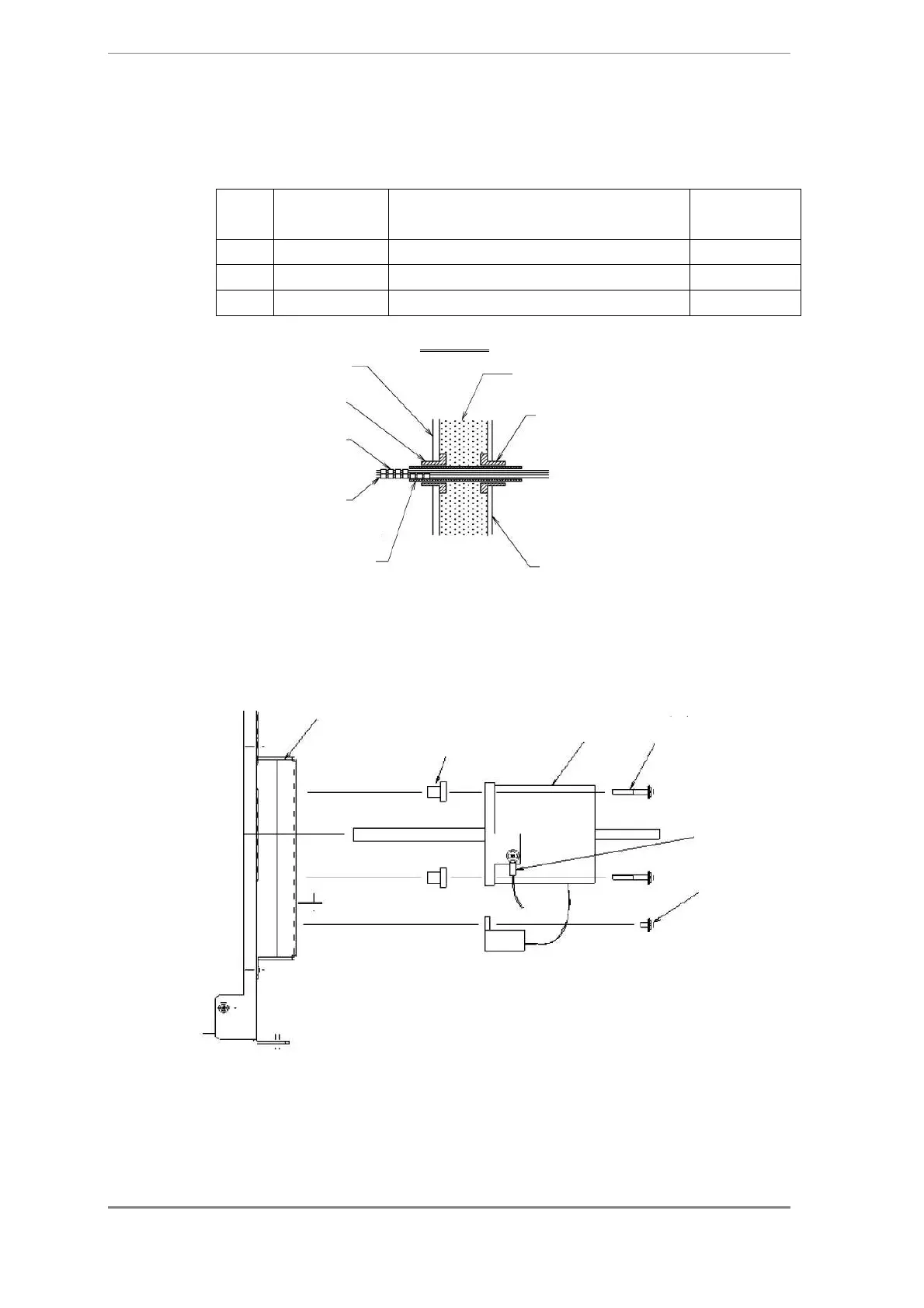

2.2.6 Heater and PT Sensor/Thermocouple
HEATER ASSY
P/N Part Name
Heater
Resistance
Value
100 V S221-75052-41 COLUMN OVEN HEATER ASSY, 100 V, 1.3 kW
7.1 to 7.9

115 V S221-75052-42 COLUMN OVEN HEATER ASSY, 115 V, 1.3 kW
9.5 to 10.3

200 V S221-75052-44 COLUMN OVEN HEATER ASSY, 230 V, 2.1 kW
24.6 to 25.8

2.2.7 Fan Motor
Rear Side
Inside wall of oven
Heat insulating material
Tubular insulators
Insulator
Insulator
Heater cable
Motor base
100-mm silicon glass tube
(The end of the tube must
protrude a little from the
insulator.)
MOTOR BASE
NUT, ANTI-VIBRATION,
Q-4
S023-44907-02
FAN MOTOR ASSY
S221-73248-41 (100 V)
S221-73248-42 (115 V)
S221-73248-48 (230 V)
SCREW, SUS, SEMS P3, M4

30
S020-46554
SCREW, SUS SEMS P3
M430
S020-46554
GND WIRE
S221-47656-10

Shimadzu GC-2014 Specifications

General

Type	Gas Chromatograph
Display	LCD
Maximum Heating Rate	120°C/min
Data Acquisition	Digital
Maximum Number of Detectors	4
Weight	Approx. 45 kg
Carrier Gas	Helium, Nitrogen, Hydrogen
Detector Options	FID, TCD, ECD, FPD
Injection Port	Split/Splitless, On-column
Gas Control	Electronic Flow Control (EFC)
Temperature Programming Rate	0.1 to 120 °C/min
Power Requirements	230 V AC, 50/60 Hz
Detector Temperature Range	Up to 400°C (depending on detector type)
