Shimadzu GC-2014 Service Manual

Chapter 8 Service Window
GC-2014 Service Manual
83

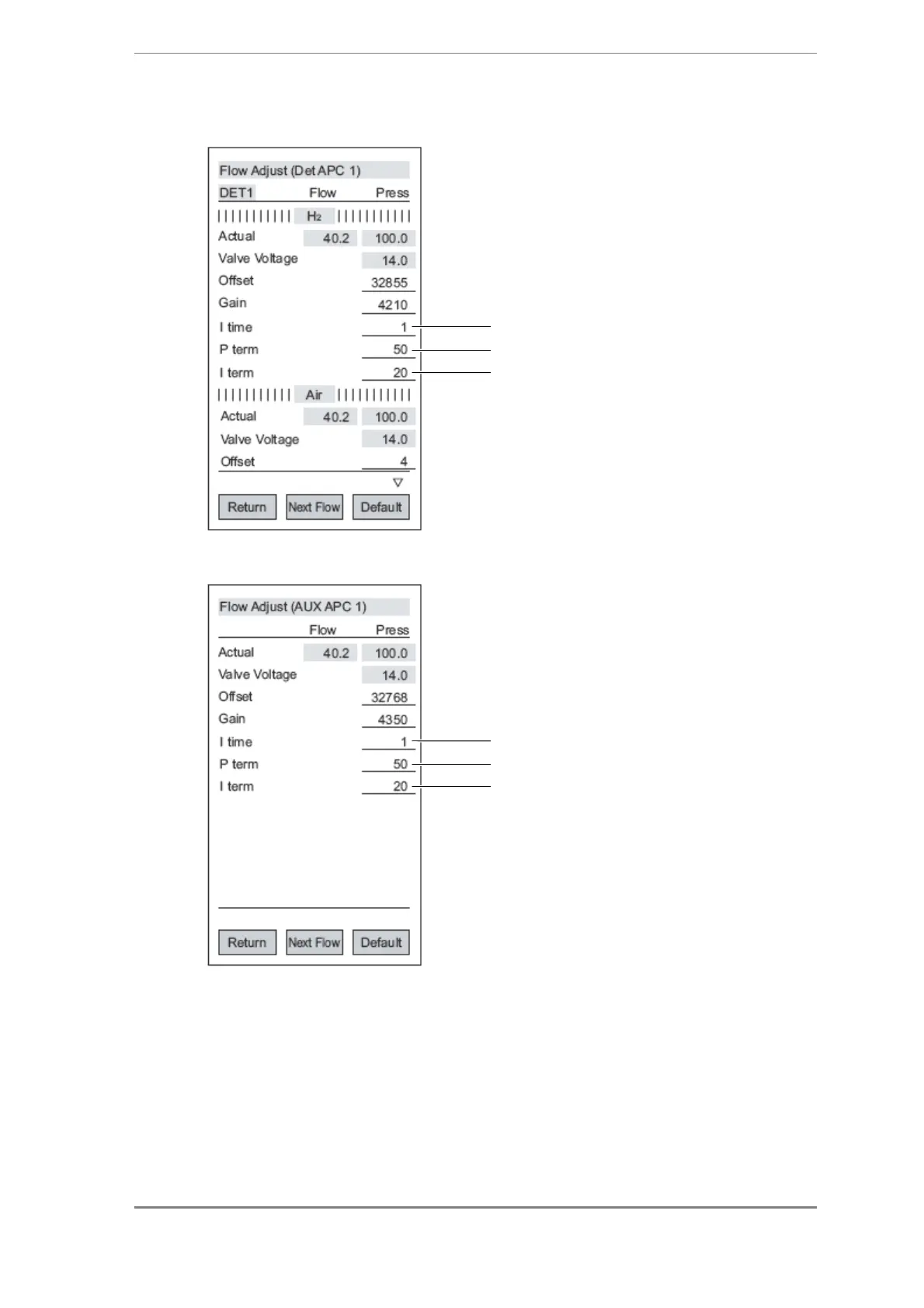

8.2 Flow Adjust (DetAPC) (Options only)
8.3 Flow Adjust (AUX APC)
Note: As an example, the window on the left shows the
items displayed for H
2
. The items are the same for the
APCs of air and make-up gas. Note, however, that
the displayed contents may vary depending on the
type of Det APC.
pf4: ROM wrt
pf5: BASE, INJECTION UNIT A ASSY
Default value (same for air, H
2
, and make-up gas)
Default value (same for air, H
2
, and make-up gas)
Default value (same for air, H
2
, and make-up gas)
Note:
There is no display for AUX APCs that have not been
installed.
pf4: ROM wrt
pf5: Offset
Default value
Default value
Default value

Shimadzu GC-2014 Specifications

General

Type	Gas Chromatograph
Display	LCD
Maximum Heating Rate	120°C/min
Data Acquisition	Digital
Maximum Number of Detectors	4
Weight	Approx. 45 kg
Carrier Gas	Helium, Nitrogen, Hydrogen
Detector Options	FID, TCD, ECD, FPD
Injection Port	Split/Splitless, On-column
Gas Control	Electronic Flow Control (EFC)
Temperature Programming Rate	0.1 to 120 °C/min
Power Requirements	230 V AC, 50/60 Hz
Detector Temperature Range	Up to 400°C (depending on detector type)
