102 FLOWSIC100 Flare · Operating Instructions · 8013344/11L2/V 2-5/2018-10 · © SICK Engineering GmbH
Assembly and Installation
Subject to change without notice
3.3.3.2 Explosion-protected version for Ex zone 1

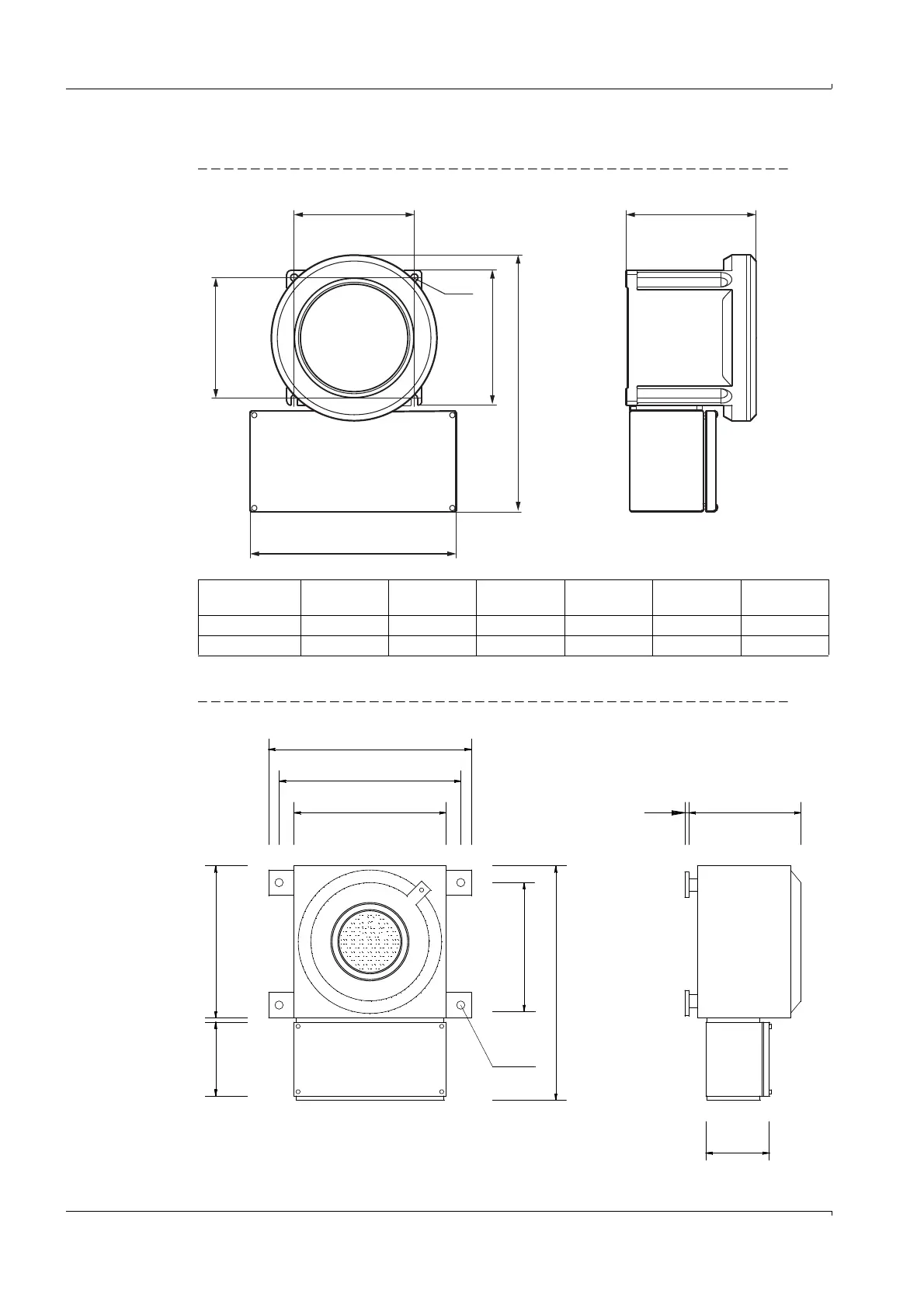

Fig. 46 MCUP in Ex housing for zone 1 [all dimensions in mm]
Special housing variant - stainless steel
Figure 47 MCUP in Ex housing for zone 1 - stainless steel [all dimensions in mm]
Housing
variant
A B C D E F
Size 4 210 11 260 445 227 360
Size 6 312 11,5 335 605 281 360
C
A
Ø B
A
E
D
F
360176,5
426
360
Ø18
275
550,5
12
150
265
470
