4.3.2 Entering counter function parameters
 Select device file "MCU-P", enter the Level 1 password and set the measuring system to
"Maintenance" mode (
→ pg. 161, § 4.1.4).
 Select the "Parameter / Measuring Point 1(2/3) / Measure Point Parameter" directory.
 Enter values for volume counter resolution and mass counter resolution in the "Measur-
ing point 1 - Counter Parameter" window.
 When the counter resolution has been changed, reset the counter by clicking "Reset
counter".

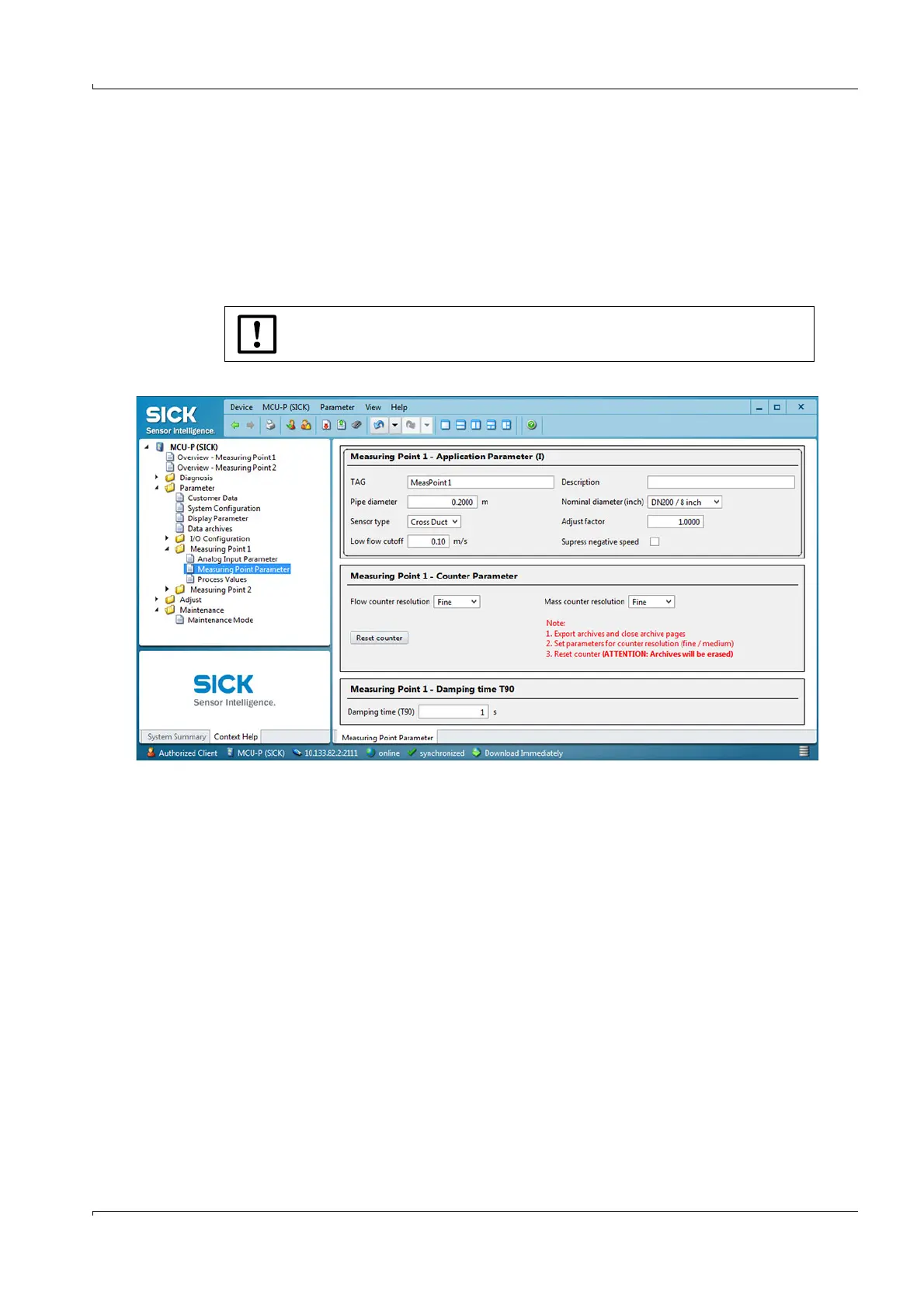

Figure 123 "Parameter / Measuring Point 1 / Measuring Point Parameter" directory
The current counter level (cumulated) can be viewed in the "Overview Measuring Point 1"
directory.
4.3.3 Data archives
Nine (three per measuring point) non-volatile data archives are implemented in the MCUP
control unit to create reports according to defined intervals.
4.3.3.1 Configuring the data archives
The data archives must be configured before being used for the first time.
● Select device file "MCU-P", enter the Level 1 password and set the measuring system to
"Maintenance" mode (
→ pg. 161, § 4.1.4).
● Switch to the "Parameter / Data archives" directory.
● Enter the parameters for recording interval, entry depth, write mode and reference to
measuring point for all 9 archives.
NOTICE:
Archives are erased when resetting the counter.
