222 FLOWSIC100 Flare · Operating Instructions · 8013344/11L2/V 2-5/2018-10 · © SICK Engineering GmbH
Specifications
Subject to change without notice
6.2.3 FLOWSIC100 EX-PR sender/receiver units
Sender/receiver units FLSE100-EXPR according to ATEX for Ex zone 2 only, non-
retractable
1
,
2

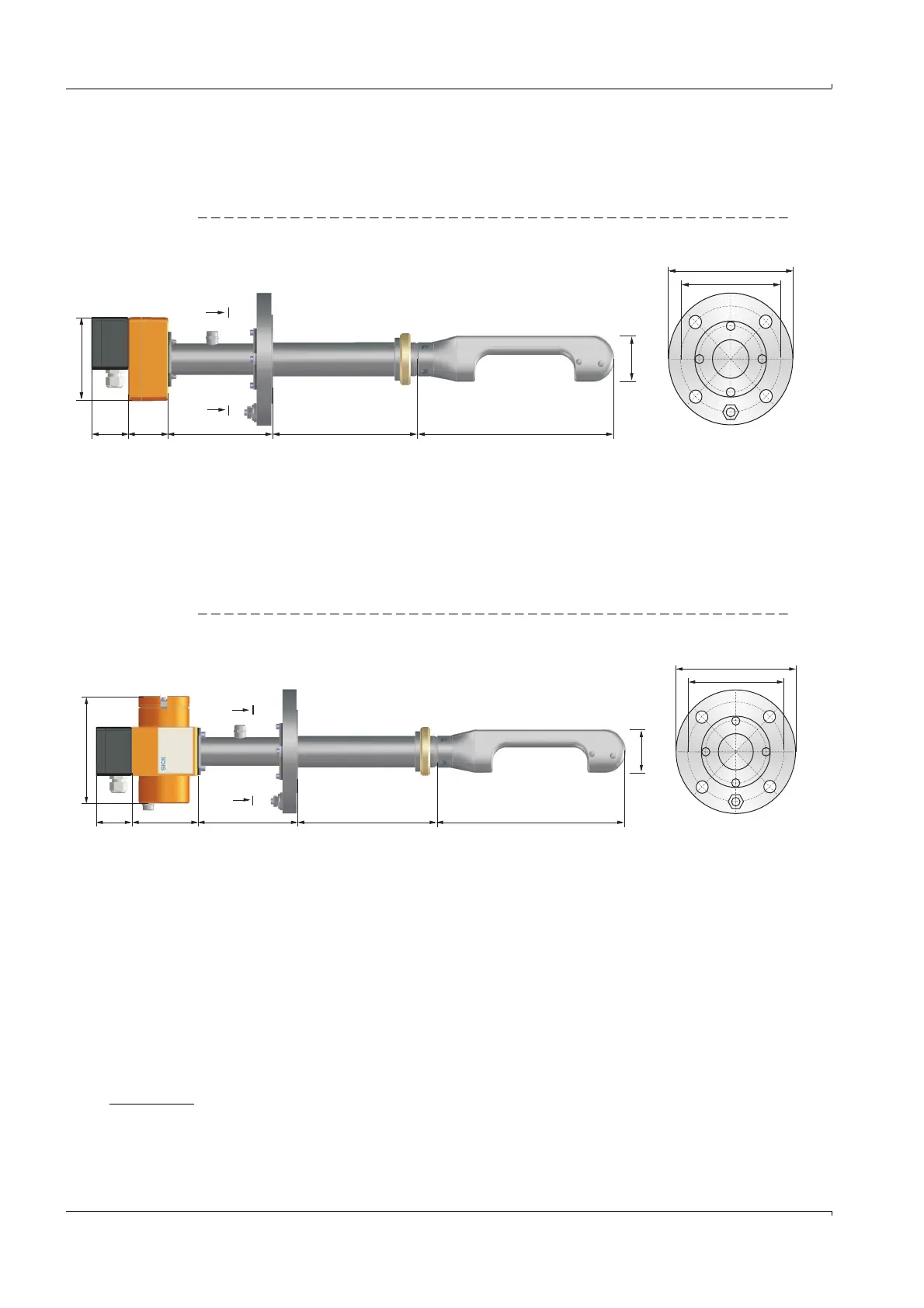

Fig. 156 Sender/receiver unit FLSE100-EXPR
Sender/receiver units FLSE100-EXPR according to ATEX for Ex zone 1/zone 2, non-
retractable
1
,
2
Fig. 157 Sender/receiver unit FLSE100-EXPR
1 For part nos. see → p. 225, 6.2.4
2 Process connections to fit flange 3" CL150 RF acc. to ASME B16.5. DN80 PN16 form B1 acc. to EN
1092-1 available as option
A
A
55.5 60 158 220 297
A -A
120
65
Ø 190
Ø 152.4
A
A
56.5 103 158 220 297
A -A
163
65
Ø 190
Ø 152.4
