116 FLOWSIC100 Flare · Operating Instructions · 8013344/11L2/V 2-5/2018-10 · © SICK Engineering GmbH
Assembly and Installation
Subject to change without notice

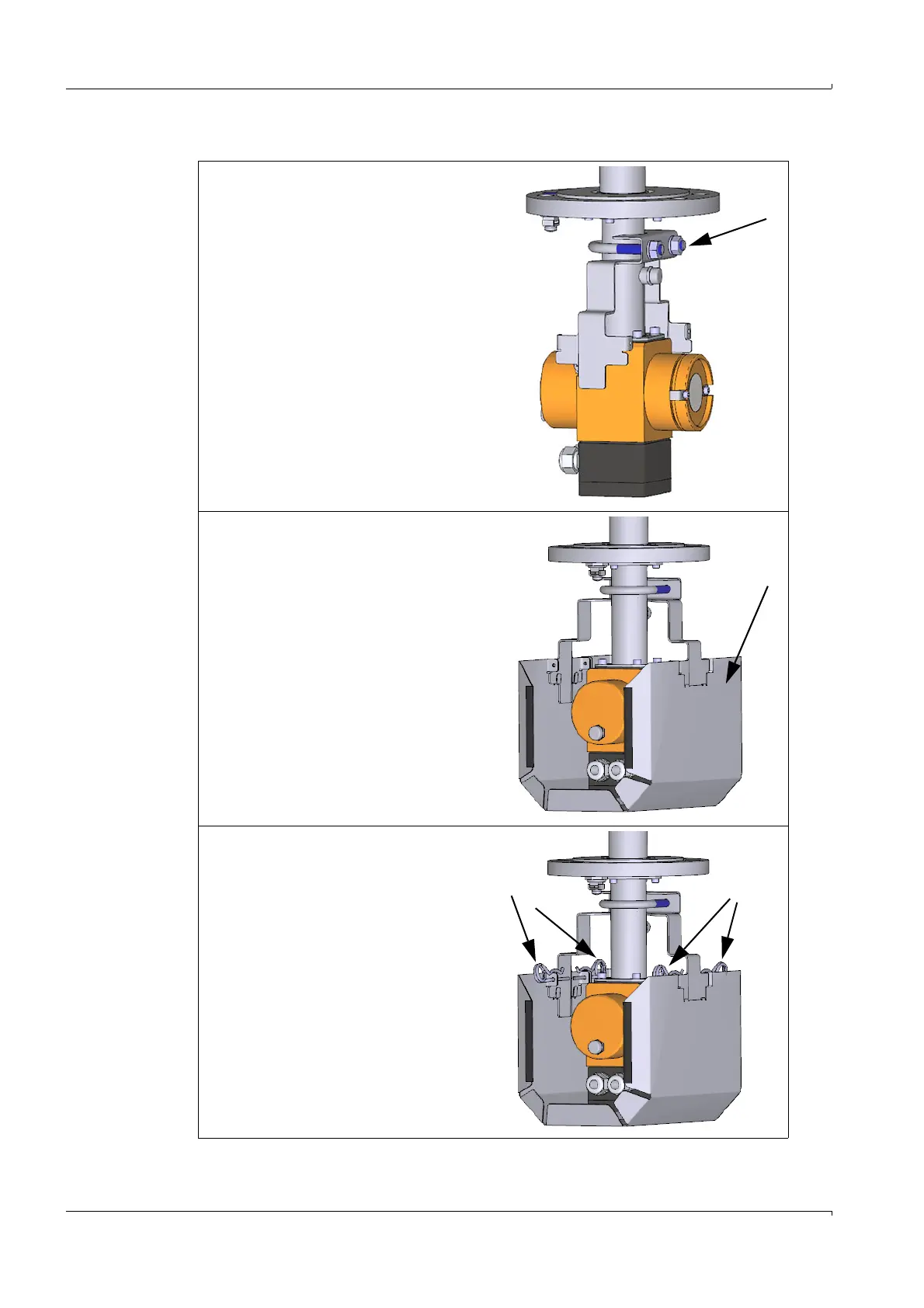

3.7.1 Installing the sun roof for the sender/receiver units
1 Fix the holder to the sender/receiver unit:
Use the hexagon nuts with washers to
attach the holder with round steel
bow to the probe neck of the sender/
receiver unit.
Pay attention to the correct alignment
of the holder. See adjacent figure.
2 Position the protective hood on the
holder.
3 Secure the sun roof with the 4 split pins.
