3.2.2 Special notes for handling the meter body option
Transport and storage
Secure for all transport and storage operations that:
– the meter body is firmly secured at all times
– measures are taken to avoid mechanical damage
– ambient conditions are within the specified limits (
→
pg. 210, § 6.1).
Protect sealing surfaces of the flanges and the interior of the meter body if it must be
stored outside for more than one day, e.g. with Anticorit spray (not required for meter
bodies from stainless steel). Do the same if the meter must be stored in dry condition,
but for more than a week.
Lifting requirements

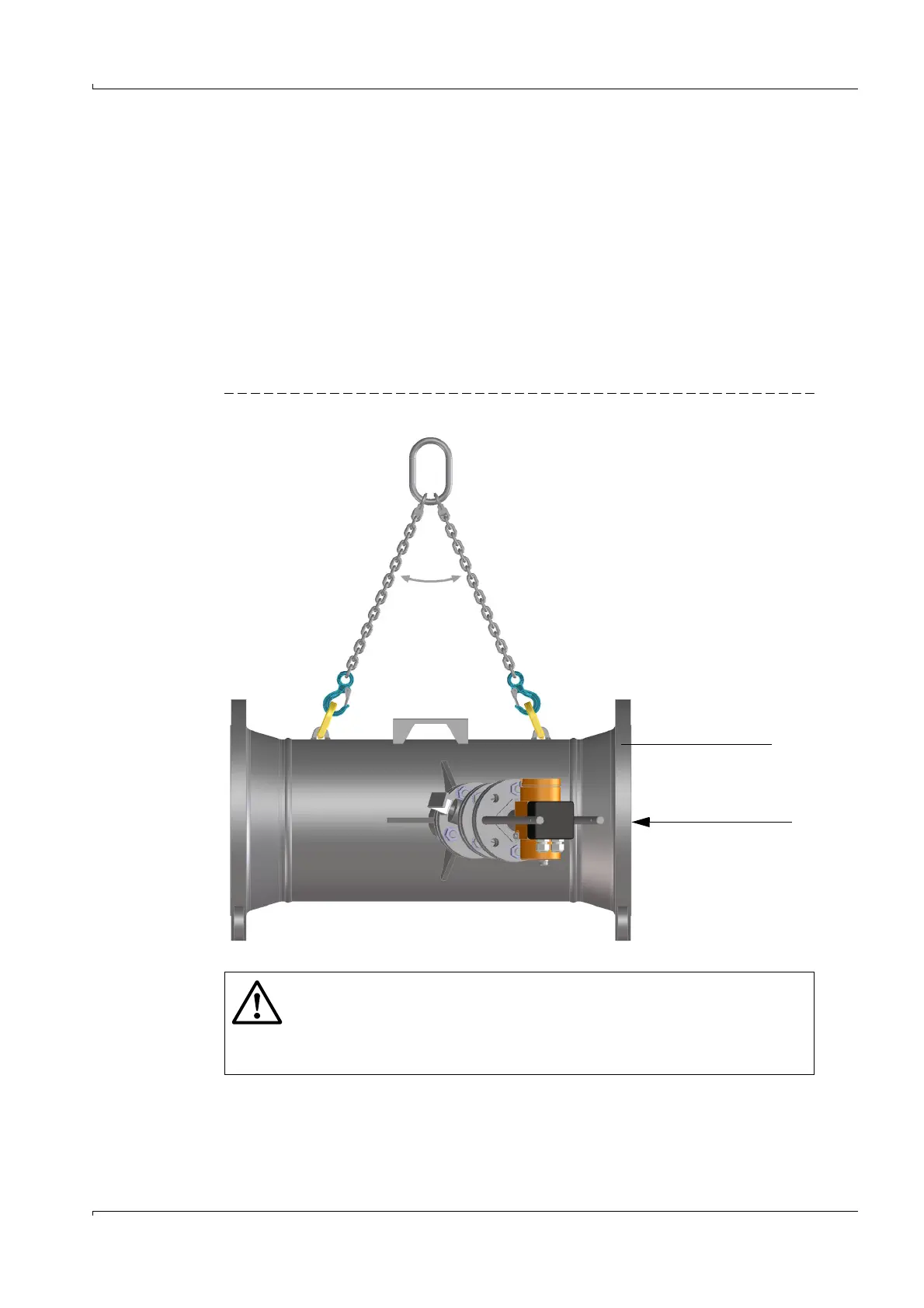

Fig. 33 Lifting requirements
WARNING: Danger due to size and mass of the meter body
Only use lifting gear and load handling equipment (e.g. lifting straps) which
are suitable for the weight to be lifted. Max. load information can be found
on the type plate of the lifting gear.
Only use the eye bolts when lifting the meter body.
max. 60 °
Meter body option
Flange sealing surface
