198 FLOWSIC100 Flare · Operating Instructions · 8013344/11L2/V 2-5/2018-10 · © SICK Engineering GmbH
Start-up and Parameter Settings
Subject to change without notice
4.4 Operating/setting parameters via the optional LC-Display
4.4.1 General information on use
The display and operating interface of the LC-Display contains the functional elements
shown in
→ Fig. 134.

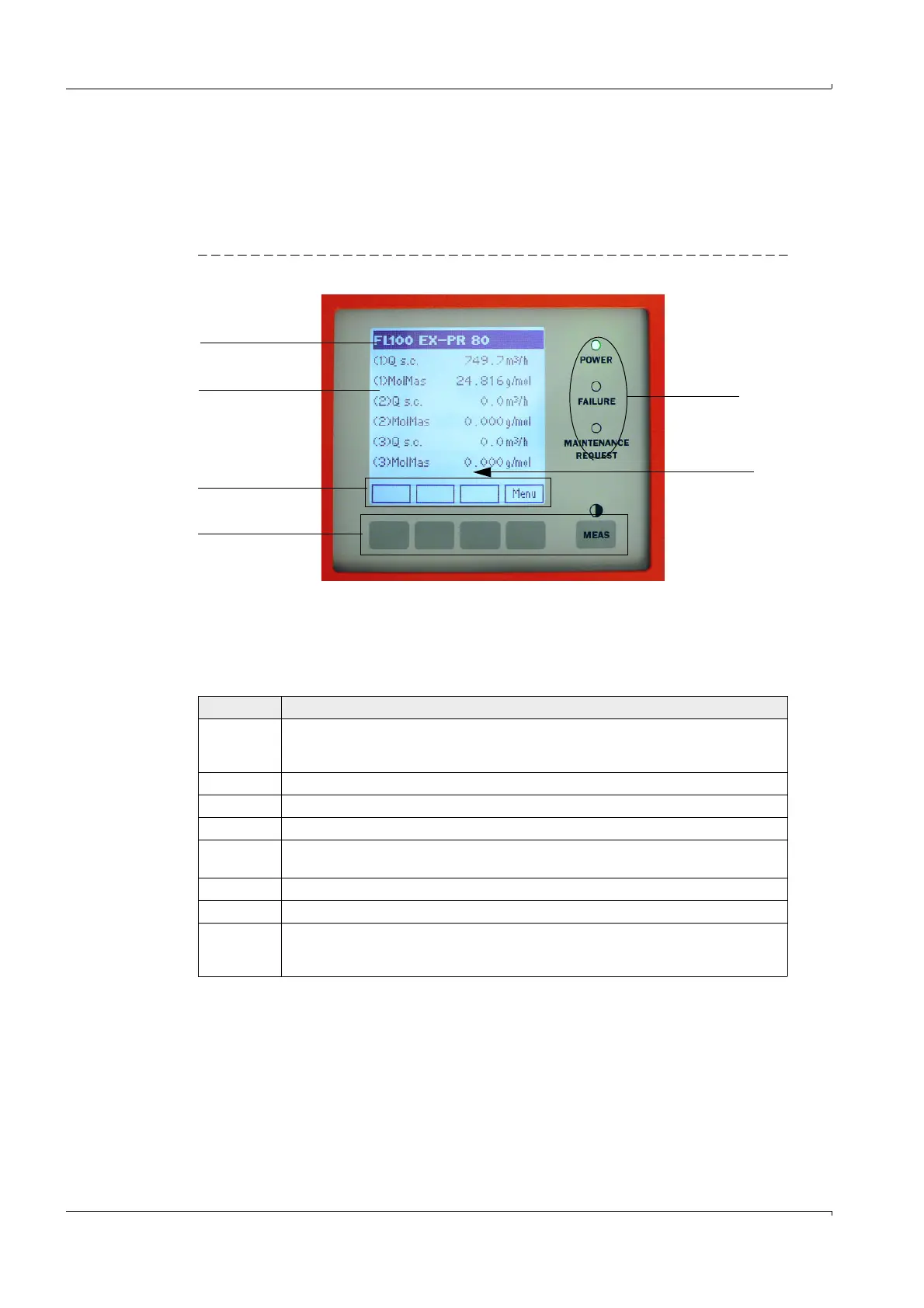

Fig. 134 LC-Display functional elements
Button functions
The function shown depends on the menu currently selected. Only the function shown in
the button is available.
Status bar
Display field
Current button
function
Control buttons
Status LED
Selected menu
Button Function
Diag
Diagnostic information display (warnings and errors during a start using the Main menu,
sensor information during a start using the Diagnostics menu → Fig. 135)
This function is only active when warnings or malfunctions are present.
Back Switch to higher level menu
Arrow  Scroll up
Arrow  Scroll down
Enter
Execution of the action selected with an arrow button (switch to a submenu, confirm
parameter selected during parameter setting)
Start Start an action
Save Store a changed parameter
Meas
Toggle between test and graphic display
Return from submenu to main menu
Display the contrast setting (after 2.5 s)
