6.2.2 FLOWSIC100 EX/EX-RE sender/receiver units

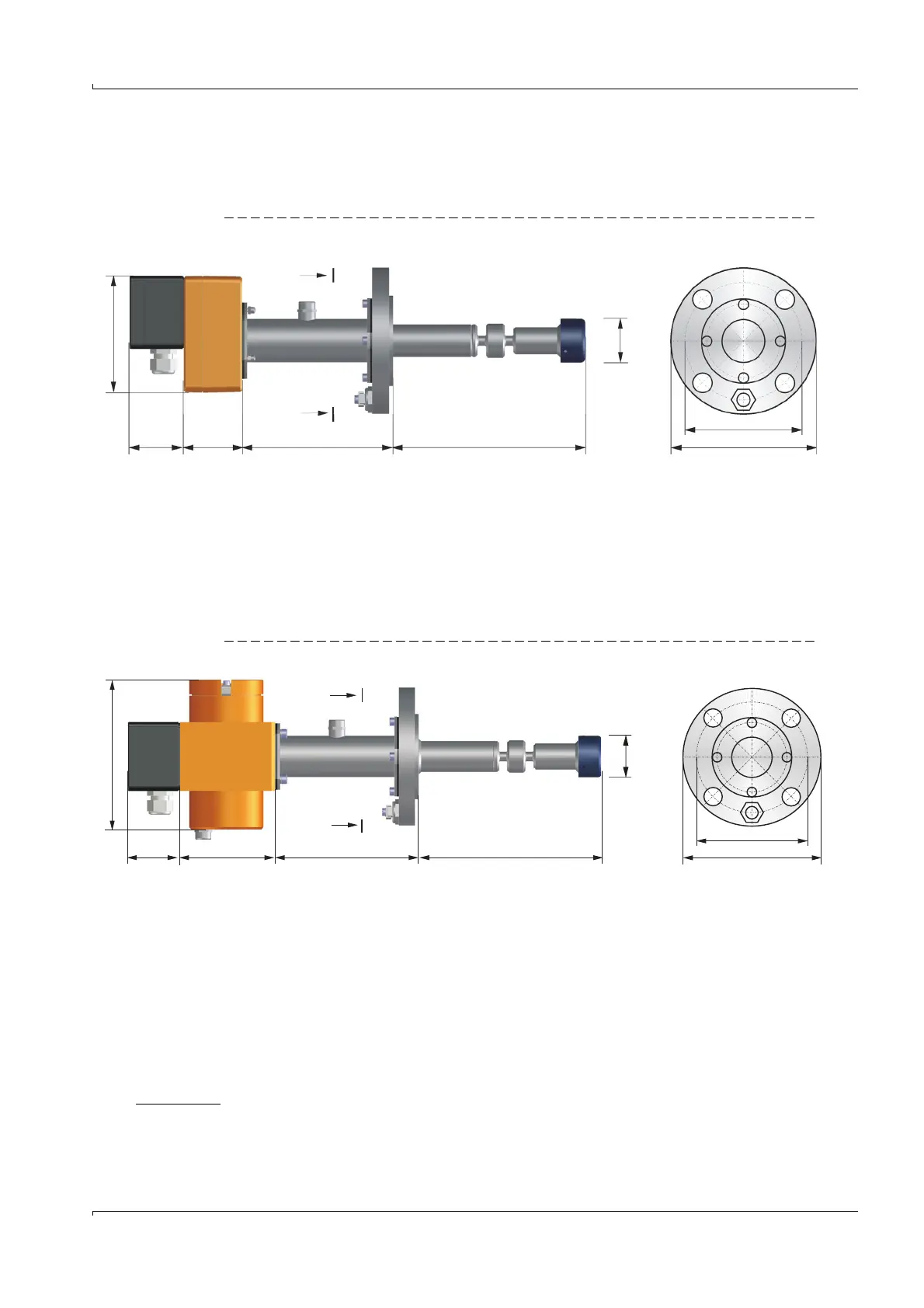

Sender/receiver units FLSE100-EX according to ATEX for Ex Zone 2 only, non-retractable
1
,
2
Fig. 150 Sender/receiver unit FLSE100-EX
Sender/receiver units FLSE100-EX according to ATEX for Ex Zone 1/ zone 2, non-
retractable
1
,
2
Fig. 151 Sender/receiver unit FLSE100-EX
1 For part nos. see → p. 225, 6.2.4
2 Process connections to fit flange 2" CL150 RF acc. to ASME B16.5. DN50 PN16 form B1 acc. to EN
1092-1 available as option
A
A
55.5 60 155.5 198
A -A
120
45
Ø 120.7
Ø 150
A
A
56.5 103 155.5 198
A -A
163
Ø 120.7
45
Ø 150
