3.5.2 Sun roof MCUP mounting on 2-inch post
3.5.2.1 Components/Scope of delivery
The sun roof MCUP for mounting on 2-inch post (Part. No. 2069405) is delivered as a set of
the following components:
Blue (4)
MCUP STAHL size 6 (with or
without terminal
compartment)
Mounting kit MCUP Gr.
A,B,C,D
Black (5)
MCUP STAHL Stainless Steel
Mounting kit MCUP Gr. E

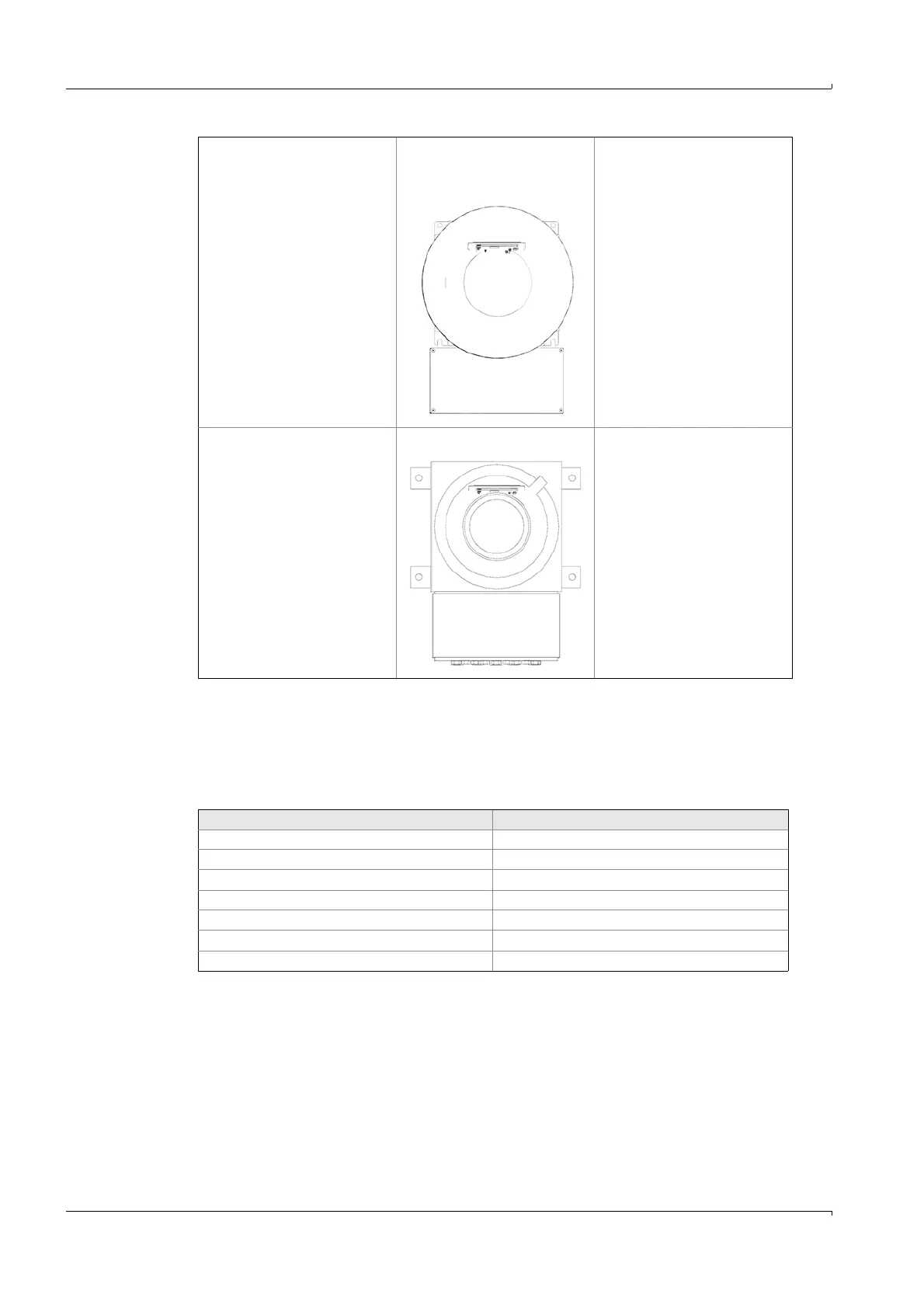

Table 4 Scope of delivery MCUP for mounting on 2-inch post
Description Part No.
Sun roof 4075713
Mounting plate 4075714
Mounting kit post bracket 2-inch 2061076
Mounting kit sun roof 2072663
Mounting kit MCUP Size A 2072665
Mounting kit MCUP Size B,C,D 2072666
Mounting kit MCUP Size E 2072664
