Assembly and Installation
FLOWSIC100 Flare · Operating Instructions · 8013344/11L2/V 2-5/2018-10 · © SICK Engineering GmbH 109
Subject to change without notice

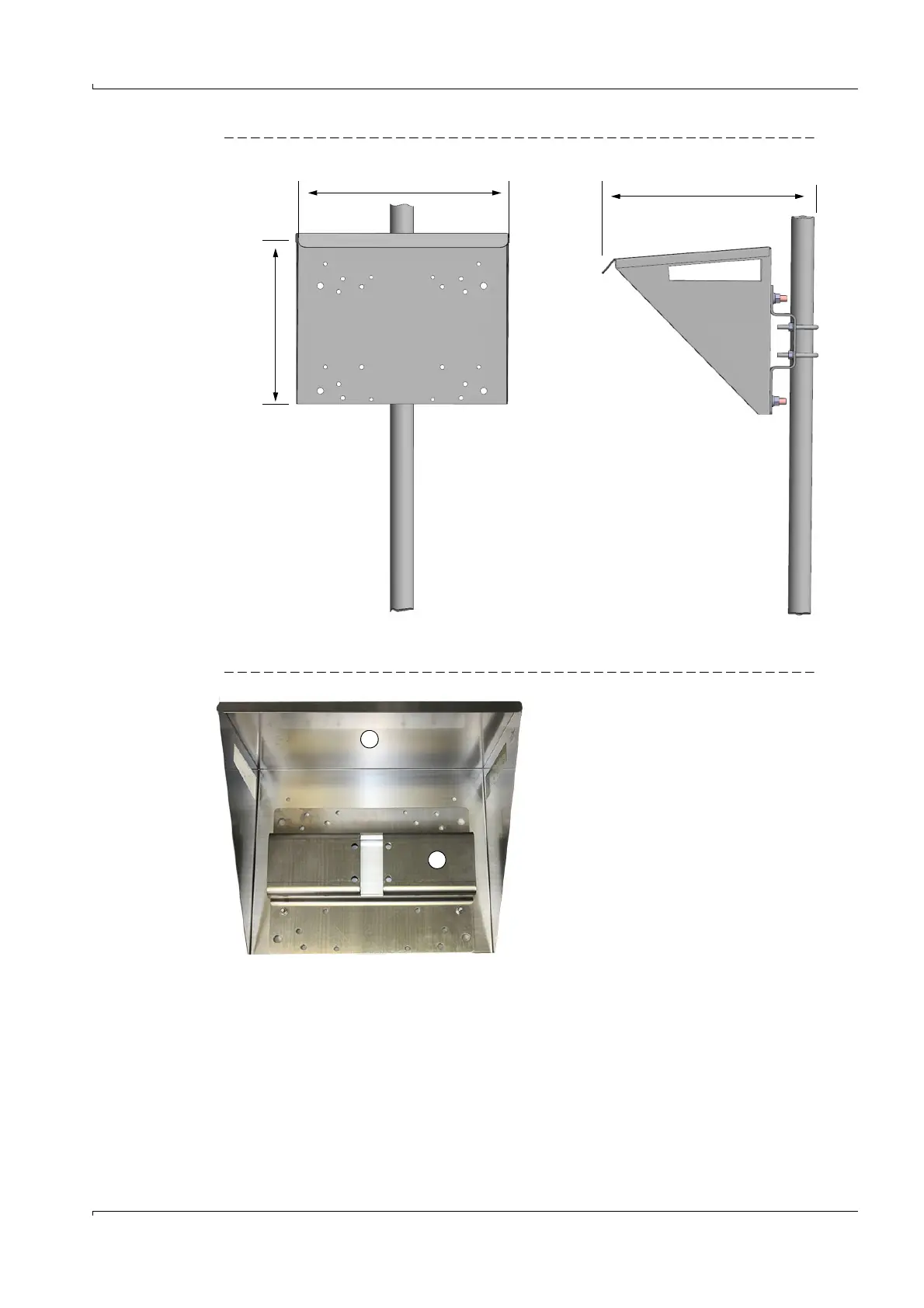

Figure 53 Mounting on 2-inch post [all dimensions in mm]
3.5.2.2 Mounting sun roof on 2-inch post
Figure 54 Mounting on 2-inch post
The sun roof for wall mounting is by default delivered with the mounting plate (1) fixed to
the inside of the sun roof (2) with the „mounting kit sun roof”.
For the mounting on the 2-inch post remove the mounting plate (1) from the sun
roof
(2).
Then fix the mounting plate (1) to the 2-inch post with the „mounting kit post bracket
2-inch”.
Finally fix the sun roof (2) on the mounting plate (1) with the “mounting kit sun roof”
according to
Fig. 55.
