104 FLOWSIC100 Flare · Operating Instructions · 8013344/11L2/V 2-5/2018-10 · © SICK Engineering GmbH
Assembly and Installation
Subject to change without notice
3.4 Installing the MCUP with option "Set fixing plate for 2-inch post"
For Control Unit MCUP an optional set for mounting to a 2-inch post is available (not
suitable for MCUP compact size or 19“ rack version).

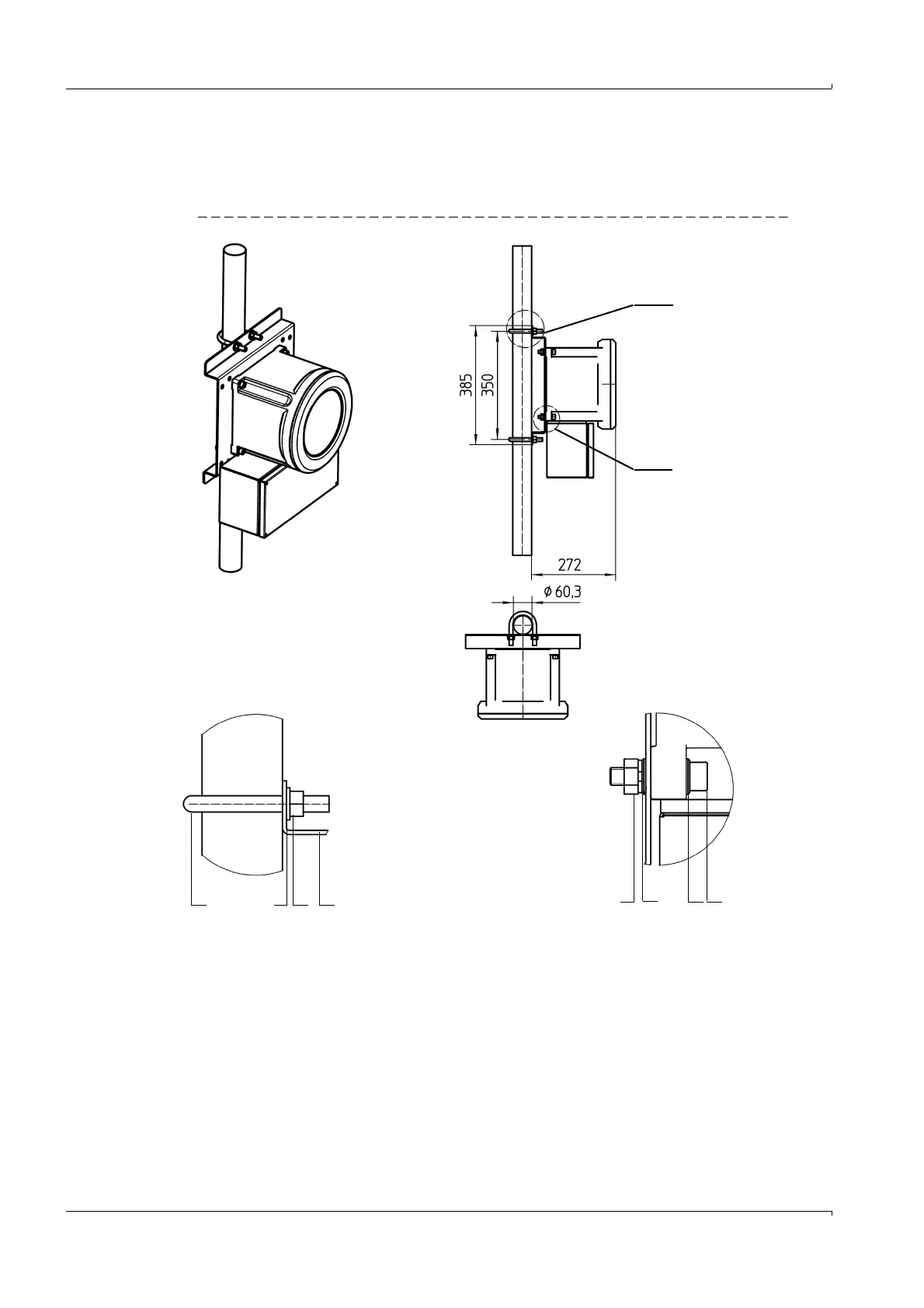

Fig. 49 MCUP Ex d fixing plate
4
Directions for mounting:
 Fix plate (4) to post using round steel bow (1), nut (3) and washer (2)
 Mount MCUP to fixing plate using screw (8), washer (7), washer plus
spring washer (7) + (6) and nut (5).
Detail 1
Detail 2
Detail 1
Detail 2
1
2
3
7
5
6 & 7
8
1 Round steel bow DIN3570
2 Washer A13 -A4
3 Nut M12 -A4
4 Fixing plate
5 Nut M10 DIN934
6 Spr. washer B10 DIN127
7 Washer B10,5 DIN125
8 Screw M10 DIN912
