Assembly and Installation
FLOWSIC100 Flare · Operating Instructions · 8013344/11L2/V 2-5/2018-10 · © SICK Engineering GmbH 81
Subject to change without notice

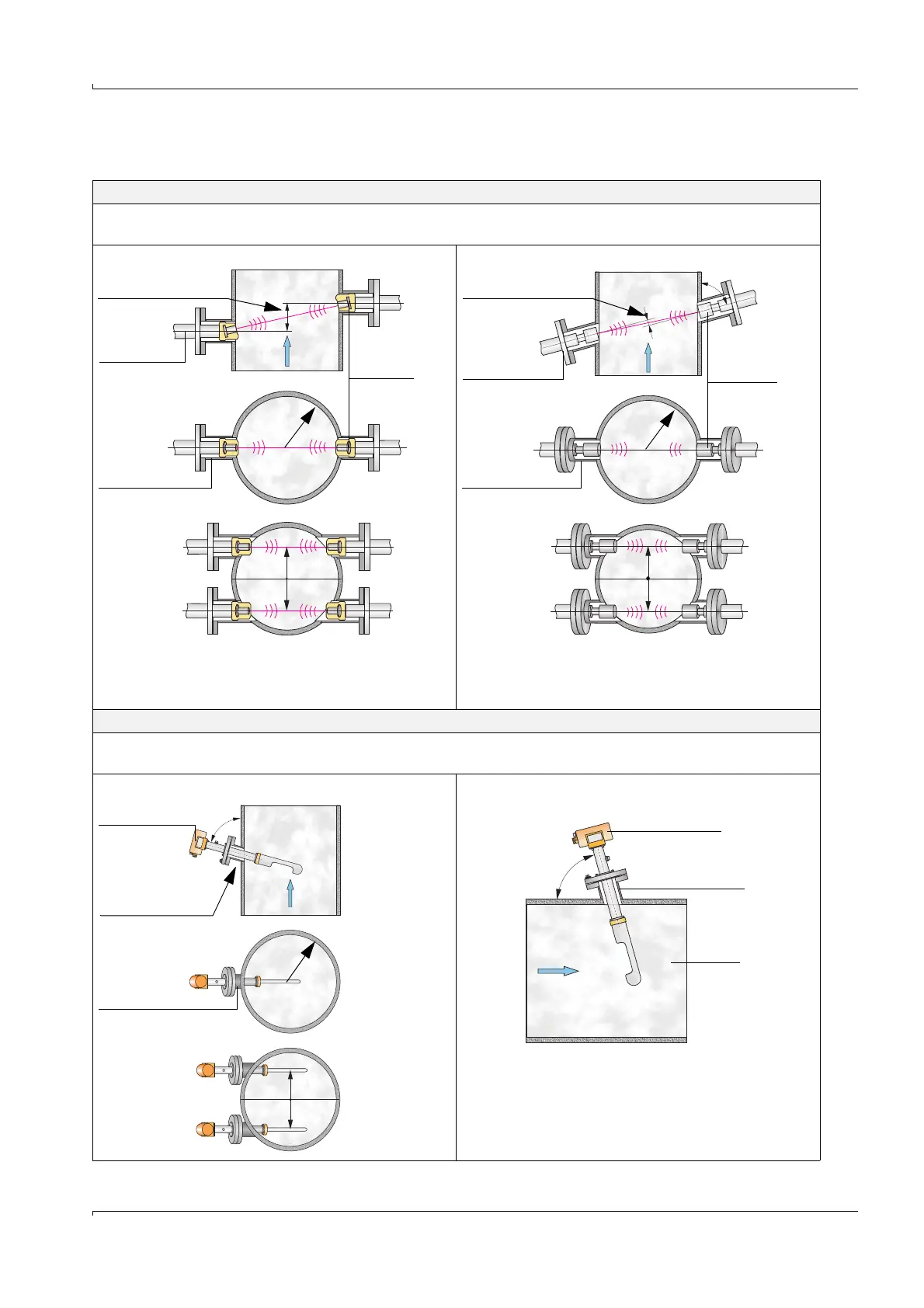

3.1.3 Notes for installation of sender/receiver units in 1-path, 2-paths or 3x1 path
configuration
Cross-duct version
Weld the assembly nozzles vertically (FLSE100-EXS) or at an angle of 75° (FLSE100-EX) with parallel offset
onto the pipeline.
FLSE100-EXS
Special alignment of the ultrasonic transducer provides the
angle to the flow axis required for measurement.
Ensure that the sensors are facing each other.
The parallel offset depends on the pipe diameter.
FLSE100-EX/EXRE
The installation angle of the assembly nozzle and the parallel
offset provide the angle to the flow axis required for
measurement. The parallel offset depends on the pipe diameter.
Probe version (FLSE100-EXPR)
In order to capture a representative part of the flow, select the sender/receiver unit in a short or long version
depending on the pipeline diameter (§2.2.1 Part
„Application area, configurations“) and fit it as follows.
Pipeline
Probe offset
FLSE100-EXS
1-path measurement
Assembly nozzle
2-path measurement
Flow
direction
Ultrasonic
transducer
0.6 •r
0.6 •r
r
75°
Pipeline
Probe offset
FLSE100-EX/EXRE
1-path measurement
Assembly nozzle
2-path measurement
Flow
direction
Ultrasonic
transducer
0.6 •r
0.6 •r
r
FLSE100-EXPR
Mounting
direction
prevents condensate
accumulations in
nozzle tube
1-path
measurement
Assembly nozzle
2-path
measurement
Pipeline
Flow
direction
75°
Installation at vertical pipelines
0.6 •r
0.6 •r
r
Assembly nozzle
FLSE100-EXPR
Pipeline
Flow
direction
75°
Installation at horizontal pipelines
