Assembly and Installation
FLOWSIC100 Flare · Operating Instructions · 8013344/11L2/V 2-5/2018-10 · © SICK Engineering GmbH 105
Subject to change without notice
3.5 Installing the sun roof MCUP (option)
3.5.1 Sun roof MCUP for wall mounting
3.5.1.1 Components/scope of delivery
The sun roof MCUP for wall mounting (Part. No. 2069568) is delivered as a set of the
following components.

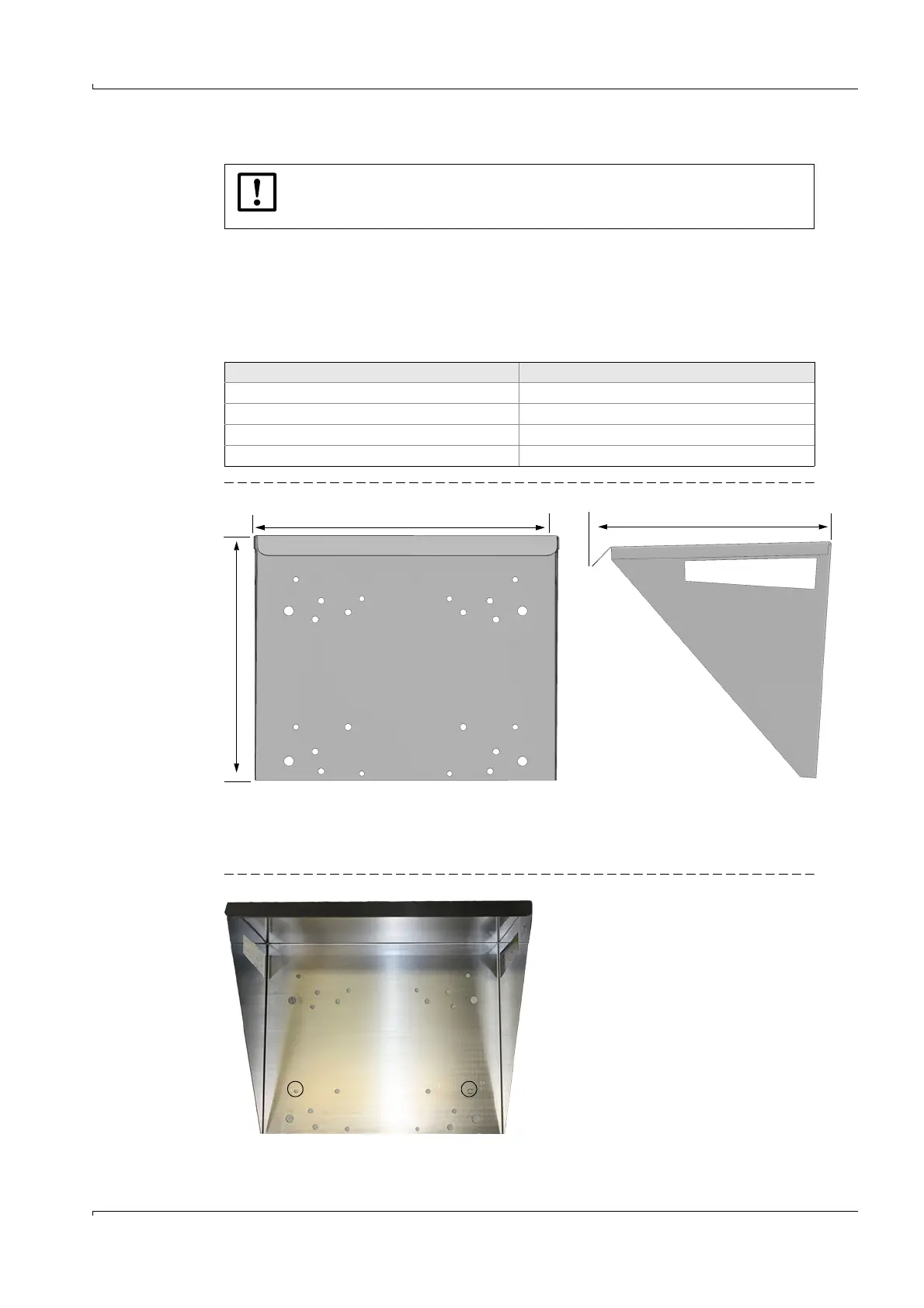

Figure 50 Dimensions [mm]
3.5.1.2 Mounting sun roof MCUP on the wall
 Use „mounting kit sun roof” on the wall.
 Use the holes marked in Fig. 51.
Figure 51 Mounting sun roof to the wall
NOTICE:
The sun roof is only to be used to protect the MCUP from direct solar radiation
and is not suitable as protection from precipitation.
Table 2 Scope of delivery MCUP for wall mounting
Description Part no.
Sun roof 4075713
Mounting kit sun roof 2072670
Mounting kit MCUP Size A,B,C,D 2072671
Mounting kit MCUP Size E 2072679
447
448
554
