Specifications
FLOWSIC100 Flare · Operating Instructions · 8013344/11L2/V 2-5/2018-10 · © SICK Engineering GmbH 213
Subject to change without notice
6.2 Dimensions and Part Numbers
All measurements specified are in millimeters.
6.2.1 FLOWSIC100 EX-S sender/receiver units
1
Sender/receiver units FLSE100-EXS according to ATEX for Ex Zone 2 only, non-
retractable
2

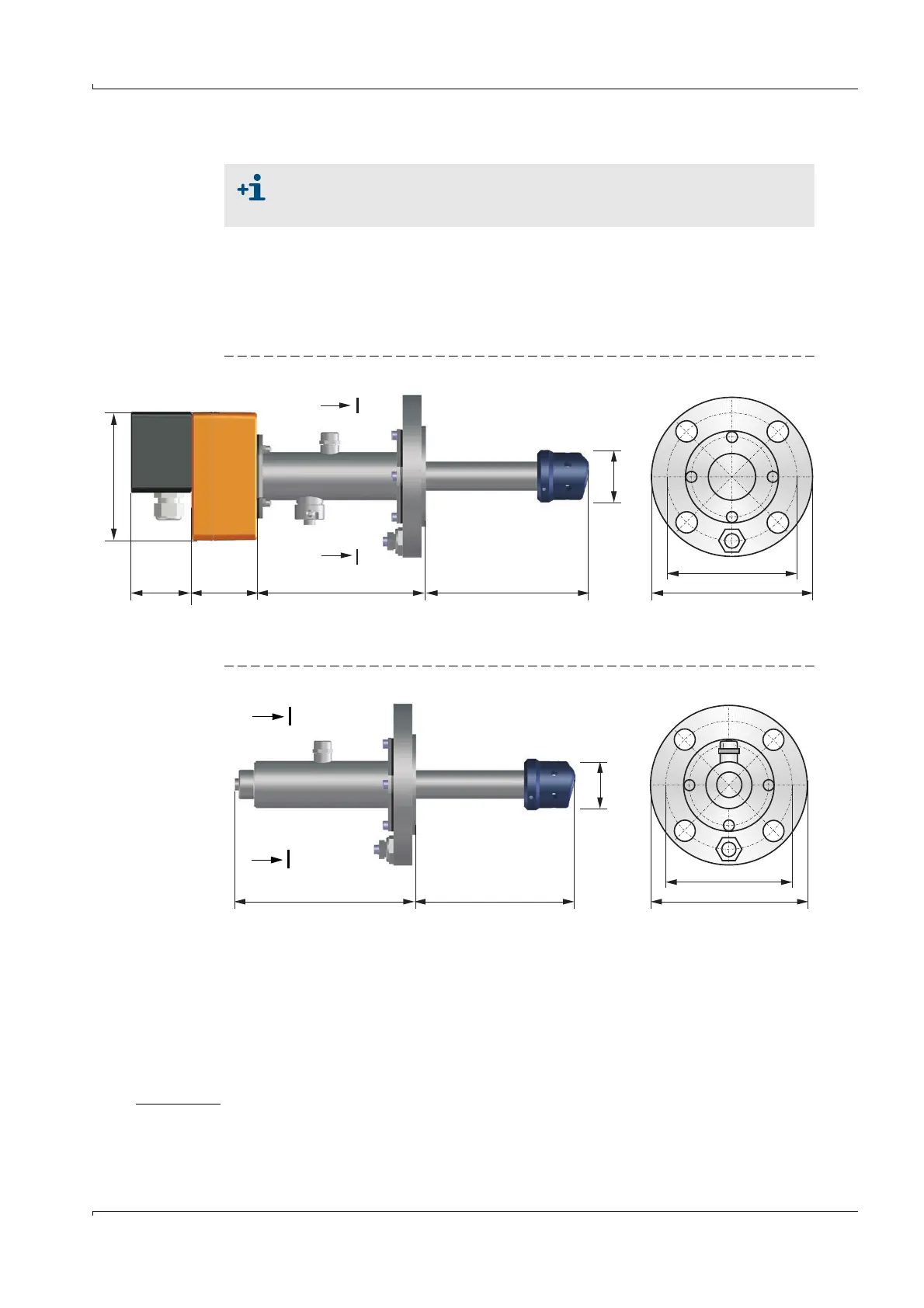

Fig. 138 Sender/receiver unit FLSE100-EXS Master
Fig. 139 Sender/receiver unit FLSE100-EXS Slave
The devices of the FLOWSIC100 Flare measuring system adhere at least the
limits of the EMC guideline class A . The requirements on the disturbing
radiation in residential areas weren't taken into account in the approval.
1 For part nos. see
→
p. 225, 6.2.4
2 Process connections to fit flange 2" CL150 RF acc. to ASME B16.5. DN50 PN16 form B1 acc. to EN
1092-1 available as option
A
A
55.5 60 155.5 150
Ø 120.7
A -A
120
48
Ø 150
171.5 150
48
A -A
A
A
Ø 120.7
Ø 150
