SICK FLOWSIC100 Flare User Manual

220 FLOWSIC100 Flare · Operating Instructions · 8013344/11L2/V 2-5/2018-10 · © SICK Engineering GmbH
Specifications
Subject to change without notice
Sender/receiver unit FLSE100-EX according to ATEX for Ex Zone 1/zone 2, IECEx zone 1
and according to CSA for Cl I, Div.1/Div.2, non-retractable
1
,
2

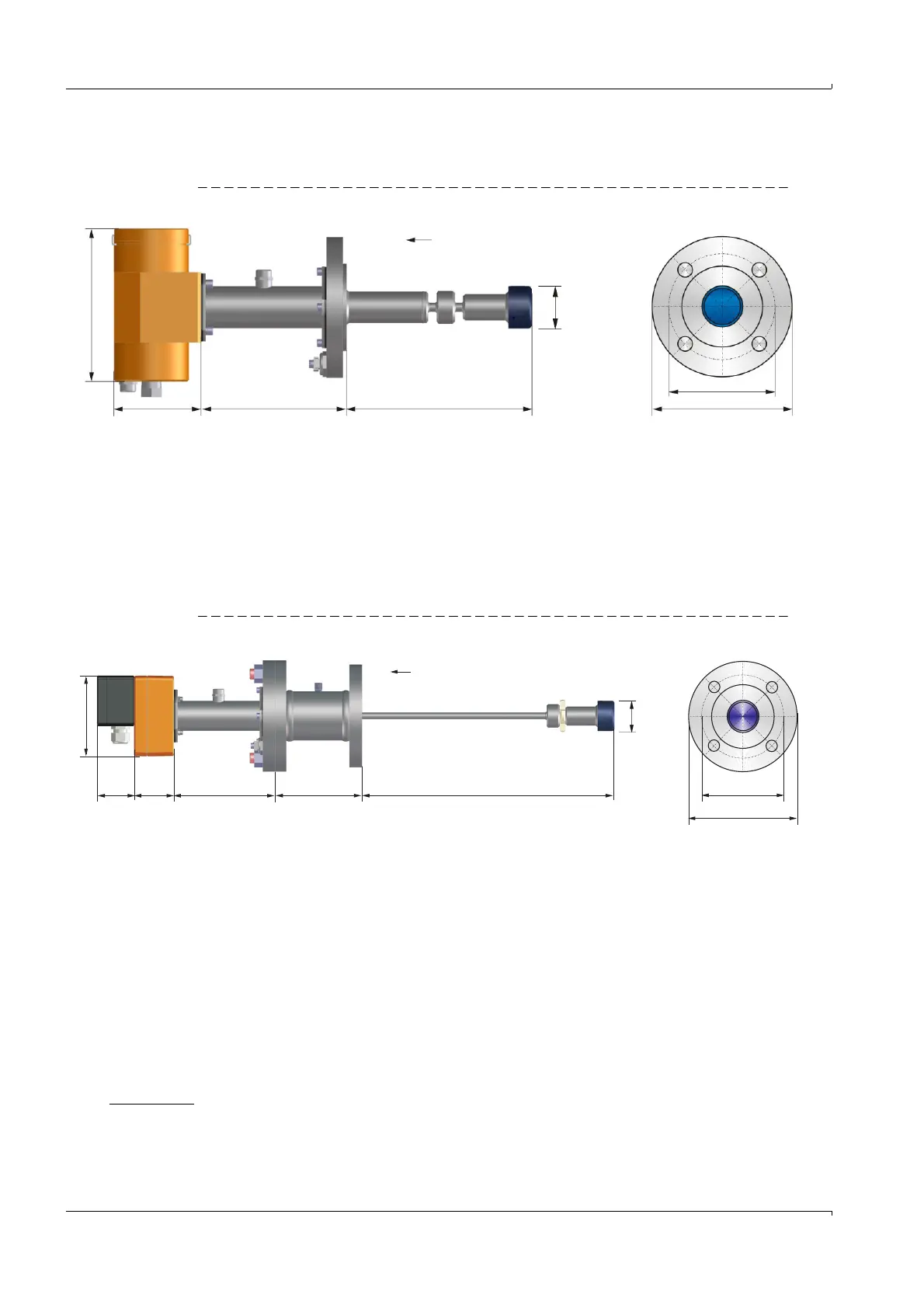

Fig. 152 Sender/receiver unit FLSE100-EX
Sender/receiver units FLSE100-EXRE according to ATEX for Ex Zone 2 only,
retractable
1
,
2
Fig. 153 Sender/receiver unit FLSE100-EXRE
1 For part nos. see → p. 225, 6.2.4
2 Process connections to fit flange 2" CL150 RF acc. to ASME B16.5. DN50 PN16 form B1 acc. to EN
1092-1 available as option
A
A
93 155.5 198
A
163
45
Ø 120.7
Ø 150
A
55,5 60 152 131.5 380
A
120
45
Ø 120.7
Ø 152.4
