Sender/receiver units FLSE100-EXRE according to ATEX for Ex zone 1/zone 2,
retractable
1
,
2

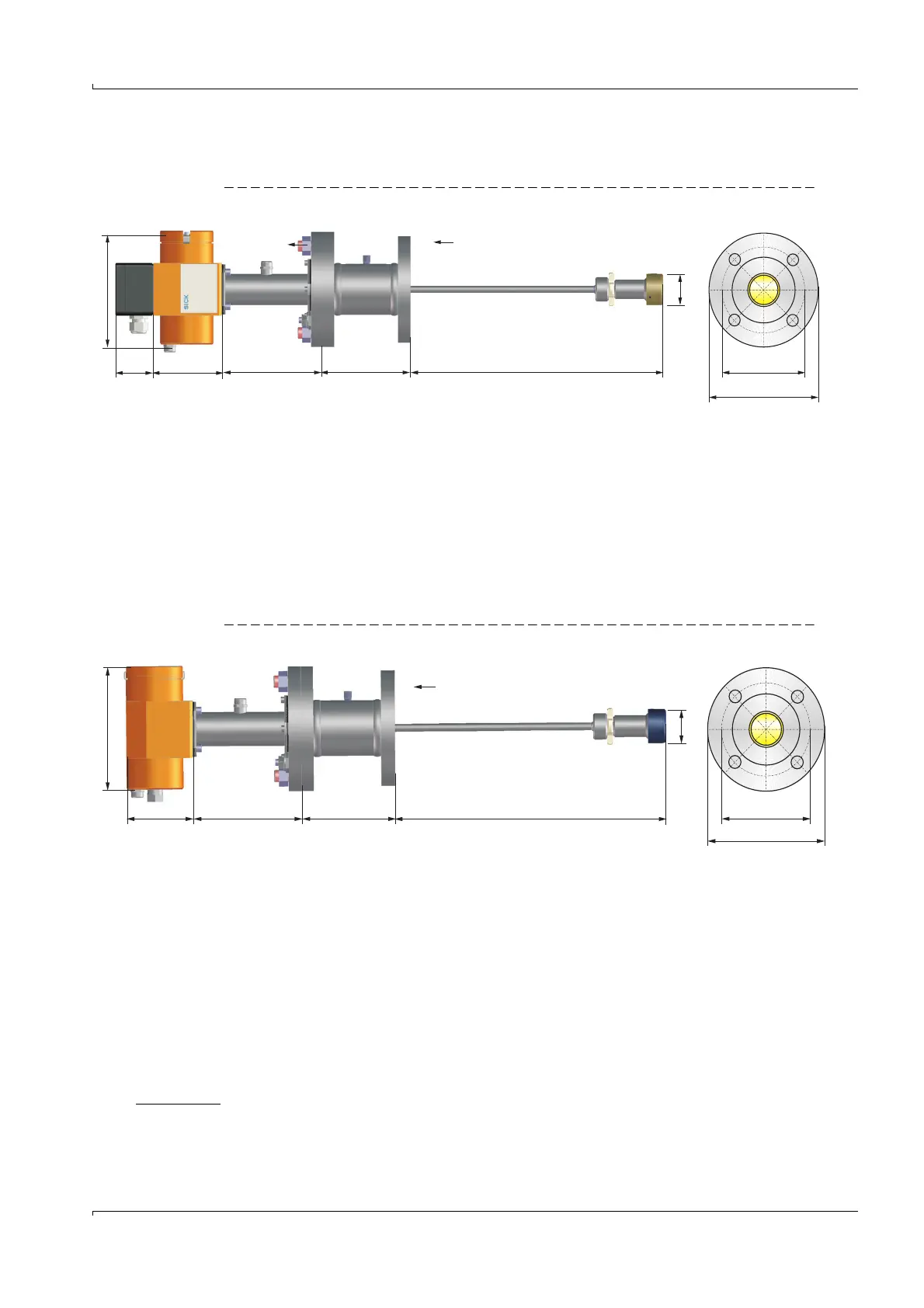

Fig. 154 Sender/receiver unit FLSE100-EXRE
Sender/receiver units FLSE100-EXRE according to ATEX for Ex Zone 1/zone 2, IECEx
zone
1 and according to CSA for Cl I, Div.1/Div.2, retractable
1
,
2
Fig. 155 Sender/receiver unit FLSE100-EXRE
1 For part nos. see → p. 225, 6.2.4
2 Process connections to fit flange 2" CL150 RF acc. to ASME B16.5. DN50 PN16 form B1 acc. to EN
1092-1 available as option
A
56,5 103 152 131.5 380
163
A
45
Ø 120.7
Ø 152.4
A
93 152 131.5 380
163
A
45
Ø 120.7
Ø 152.4
