Specifications
FLOWSIC100 Flare · Operating Instructions · 8013344/11L2/V 2-5/2018-10 · © SICK Engineering GmbH 217
Subject to change without notice
Sender/receiver units FLSE100-EXS according to ATEX for Ex zone 1/ zone 2,
retractable
1
,
2

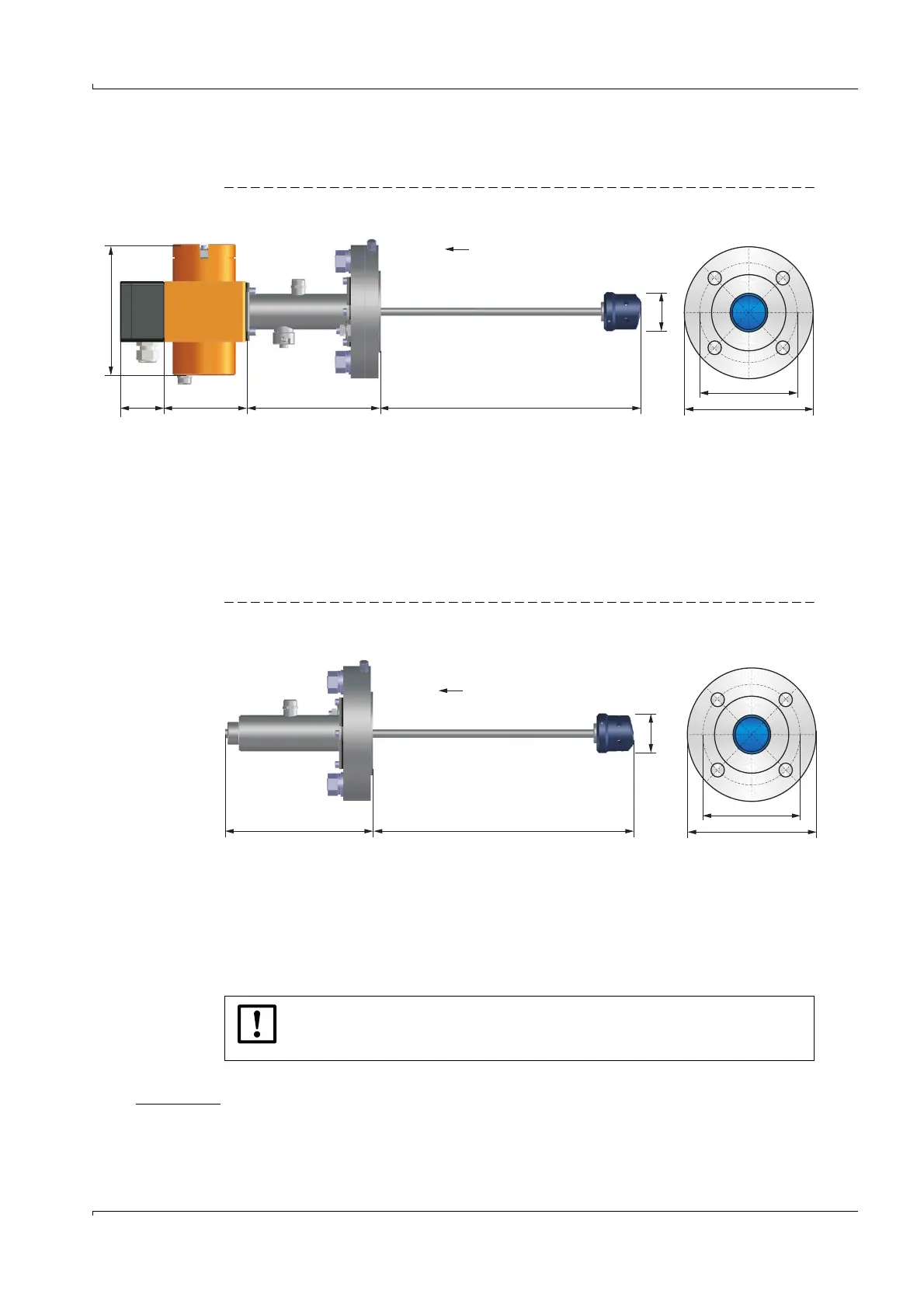

Fig. 146 Sender/receiver unit FLSE100-EXS Master
Fig. 147 Sender/receiver unit FLSE100-EXS Slave
1 For part nos. see → p. 225, 6.2.4
2 Process connections to fit flange 2" CL150 RF acc. to ASME B16.5. DN50 PN16 form B1 acc. to EN
1092-1 available as option
A
A
56.5 103 172 332
A -A
163
48
Ø 120.7
Ø 165
188 332
A
A
48
Ø 120.7
Ø 165
NOTICE:
High temperature version has different design of retraction flange with longer
total lengths of +111mm.
