Specifications
Subject to change without notice
Sender/receiver units FLSE100-EXPR according to ATEX for Ex zone 1/zone 2,
retractable
1
,
2

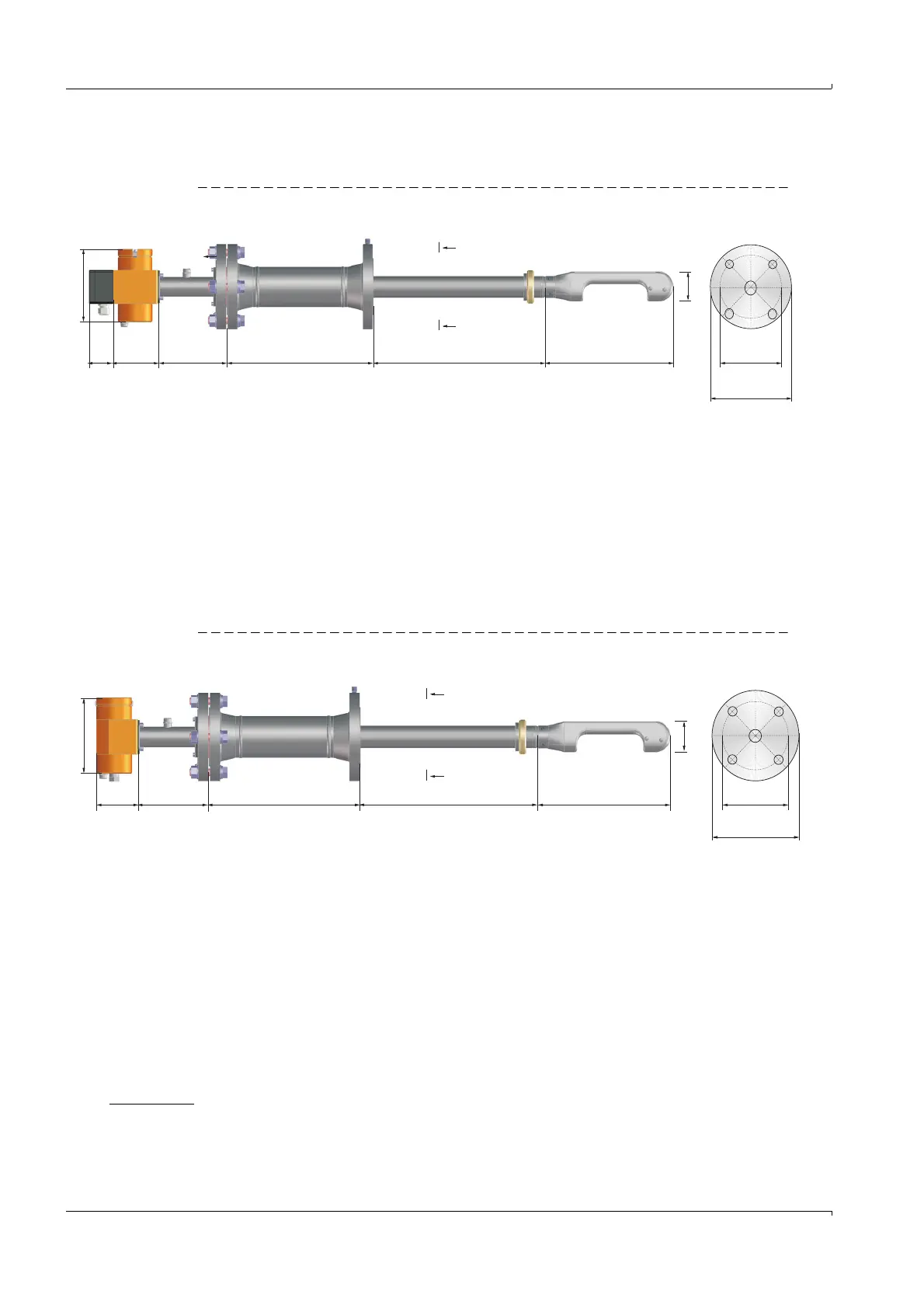

Fig. 160 Sender/receiver unit FLSE100-EXPR
Sender/receiver units FLSE100-EXPR according to ATEX for Ex Zone 1/zone 2, IECEx zone
1 and according to CSA for Cl I, Div.1/Div.2, retractable
1
,
2
Fig. 161 Sender/receiver unit FLSE100-EXPR
1 For part nos. see → p. 225, 6.2.4
2 Process connections to fit flange 3" CL150 RF acc. to ASME B16.5. DN80 PN16 form B1 acc. to EN
1092-1 available as option
56.5 103 158 342 400 297
163
A - A
A
A
65
Ø 190
Ø 152.4
A
93 158 342 400 297
163
A
A - A
65
Ø 190
Ø 152.4
