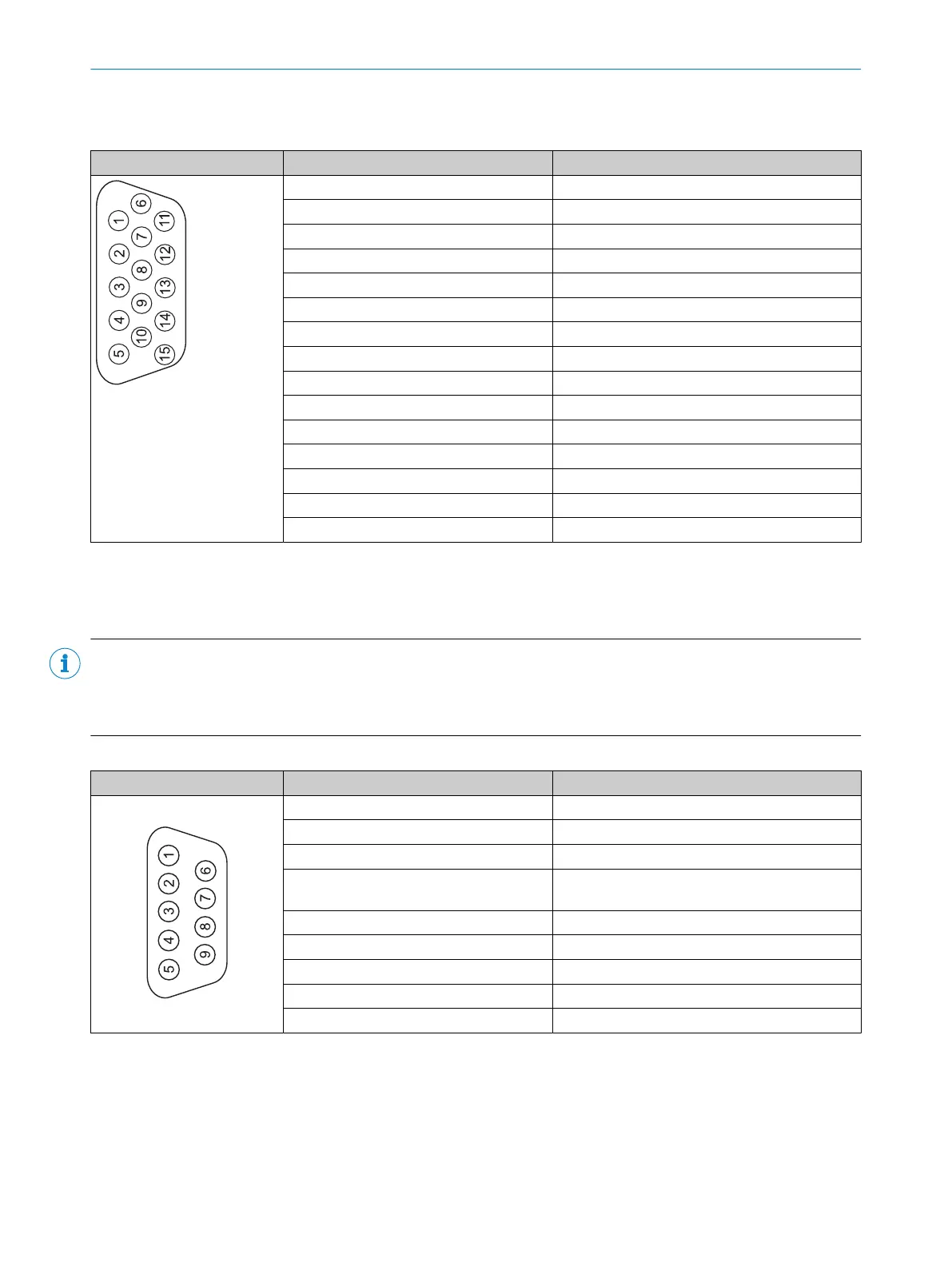

C3 HD-D-Sub female connector
T
able 33: 00C3 HD-D-Sub female connector, FX3-EBX3, for connection to FX3-MOCx
Female connector PIN Designation
1 ENC1_A+
2 ENC1_A–
3 ENC1_24V
4 ENC2_A+
5 ENC2_A–
6 ENC1_B+
7 ENC1_B–
8 ENC_0V
9 ENC2_B+
10 ENC2_B–
11 ENC1_C+
12 ENC1_C–
13 ENC2_24V
14 ENC2_C+
15 ENC2_C–
C4 D-Sub female connector
T
he EBX3 connection unit also has a 9-pin D-Sub female connector for connecting a second FX3-EBX3 encoder/
motor feedback connection unit.
NOTE
•
T
he connection of a dual encoder/motor feedback connection unit FX3-EBX4 is not permitted here.
•
A maximum of two encoder/motor feedback connection units are FX3-EBX3 are allowed per FX3 MOCx
module.
Table 34: C4 D-Sub female connector, FX3-EBX3
Female connector PIN Designation
1 ENC_A+
2 ENC_B+
3 ENC_C+
4 Reserved (ID identifier in combination with volt‐
a
ge supply)
5 ENC_24V
6 ENC_A-
7 ENC_B-
8 ENC_C-
9 ENC_0V
5 ELECTRICAL INSTALLATION
66
O P E R A T I N G I N S T R U C T I O N S | Flexi Soft Modular Safety Controller 8012478/1IG6/2023-02-24 | SICK
Subject to change without notice
