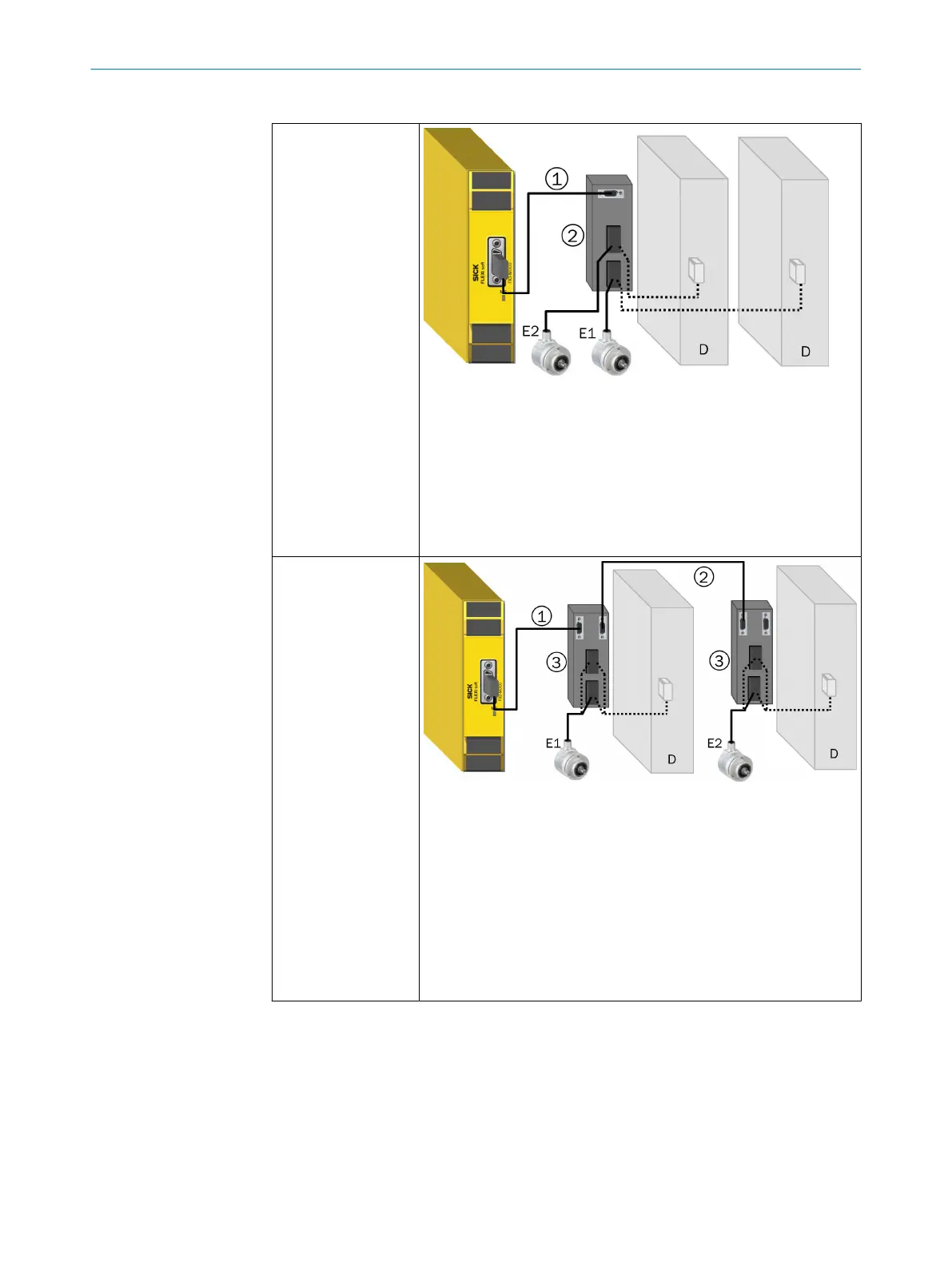

Table 77: Facilities for connecting encoders
Connection to an opti‐
mi
zed dual encoder/
motor feedback con‐
nection box FX3-EBX1
E1 Encoder 1
E2 Encoder 2
D PLC/drive controller
1
Connection cable between the FX3-MOCx and an encoder/
mo
tor feedback connection box (SICK part number 2067798,
2067799, 2077261, or 2077262)
2
Optimized dual encoder/motor feedback connection box
FX3-EBX1 (SICK part number 2079867)
Connection to
twoencoder/motor
feedback connection
boxes FX3-EBX3
E1 Encoder 1
E2 Encoder 2
D PLC/drive control
1
Connection cable between the FX3-MOCx and an encoder/
mo
tor feedback connection box (SICK part number 2067798,
2067799, 2077261, or 2077262)
2
Connection cable for FX3-EBX3 and FX3-EBX4 (SICK part num‐
ber 2078260, 2067800, or 2067801)
3
Encoder/motor feedback connection box FX3-EBX3 (SICK part
number 2068728)
ELECTRICAL INSTALLATION 5
8012478/1IG6/2023-02-24 | SICK O P E R A T I N G I N S T R U C T I O N S | Flexi Soft Modular Safety Controller
93
Subject to change without notice
