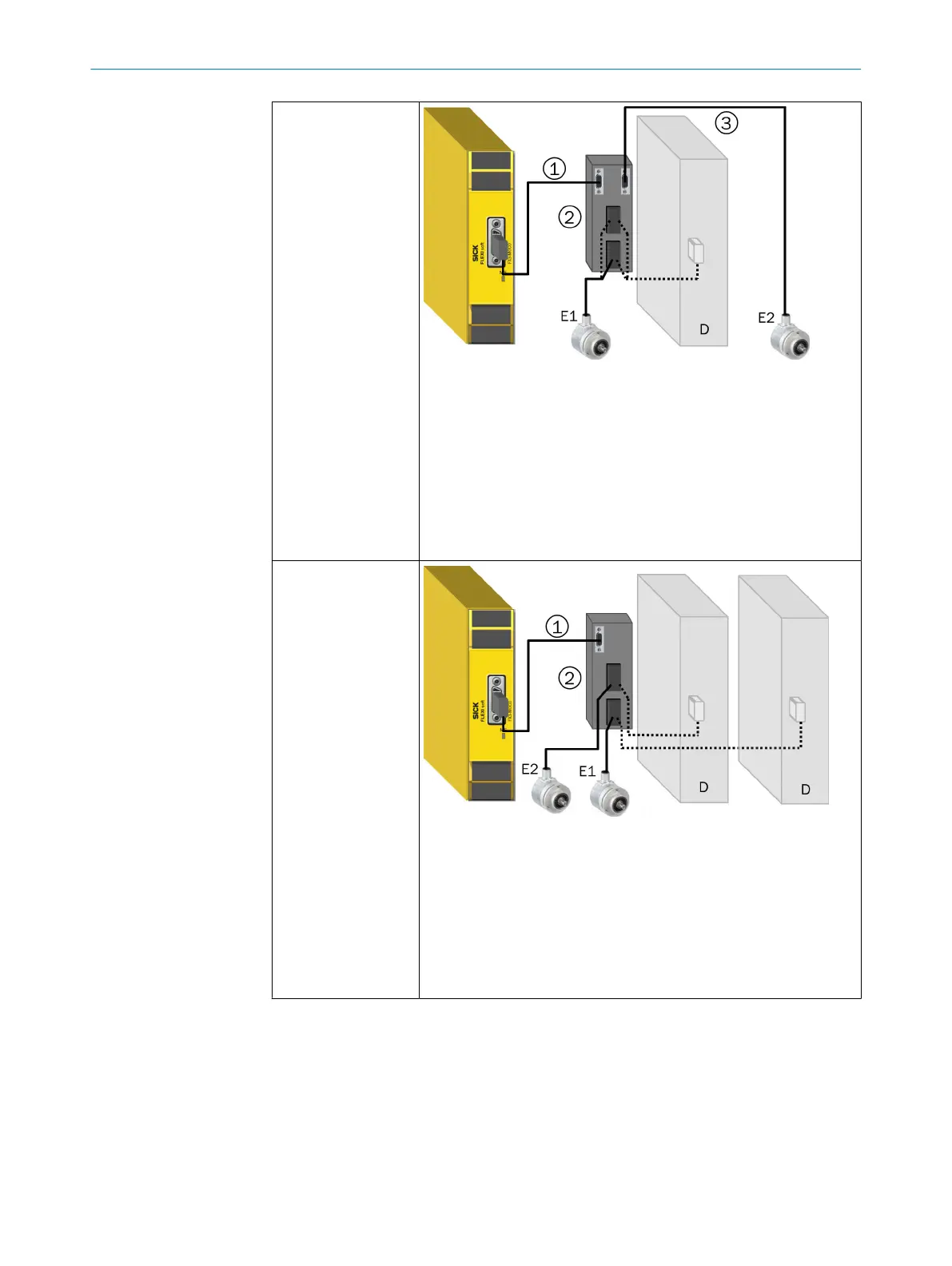

Connection with an
encoder/mo
tor feed‐
back connection box
FX3-EBX3 and user-
side cable for encod‐
ers
E1 Encoder 1
E2 Encoder 2
D PLC/drive control
1
Connection cable between the FX3-MOCx and an encoder/
mo
tor feedback connection box (SICK part number 2067798,
2067799, 2077261, or 2077262)
2
Encoder/motor feedback connection box FX3-EBX3 (SICK part
number 2068728)
3
User-side cable for encoder
Connection to one
dual encoder/motor
feedback connection
box FX3-EBX4
E1 Encoder 1
E2 Encoder 2
D PLC/drive control
1
Connection cable between the FX3-MOCx and an encoder/
mo
tor feedback connection box (SICK part number 2067798,
2067799, 2077261, or 2077262)
2
Dual encoder/motor feedback connection box FX3-EBX4 (SICK
part number 2068729)
5 ELECTRICAL INSTALLATION
94
O P E R A T I N G I N S T R U C T I O N S | Flexi Soft Modular Safety Controller 8012478/1IG6/2023-02-24 | SICK
Subject to change without notice
