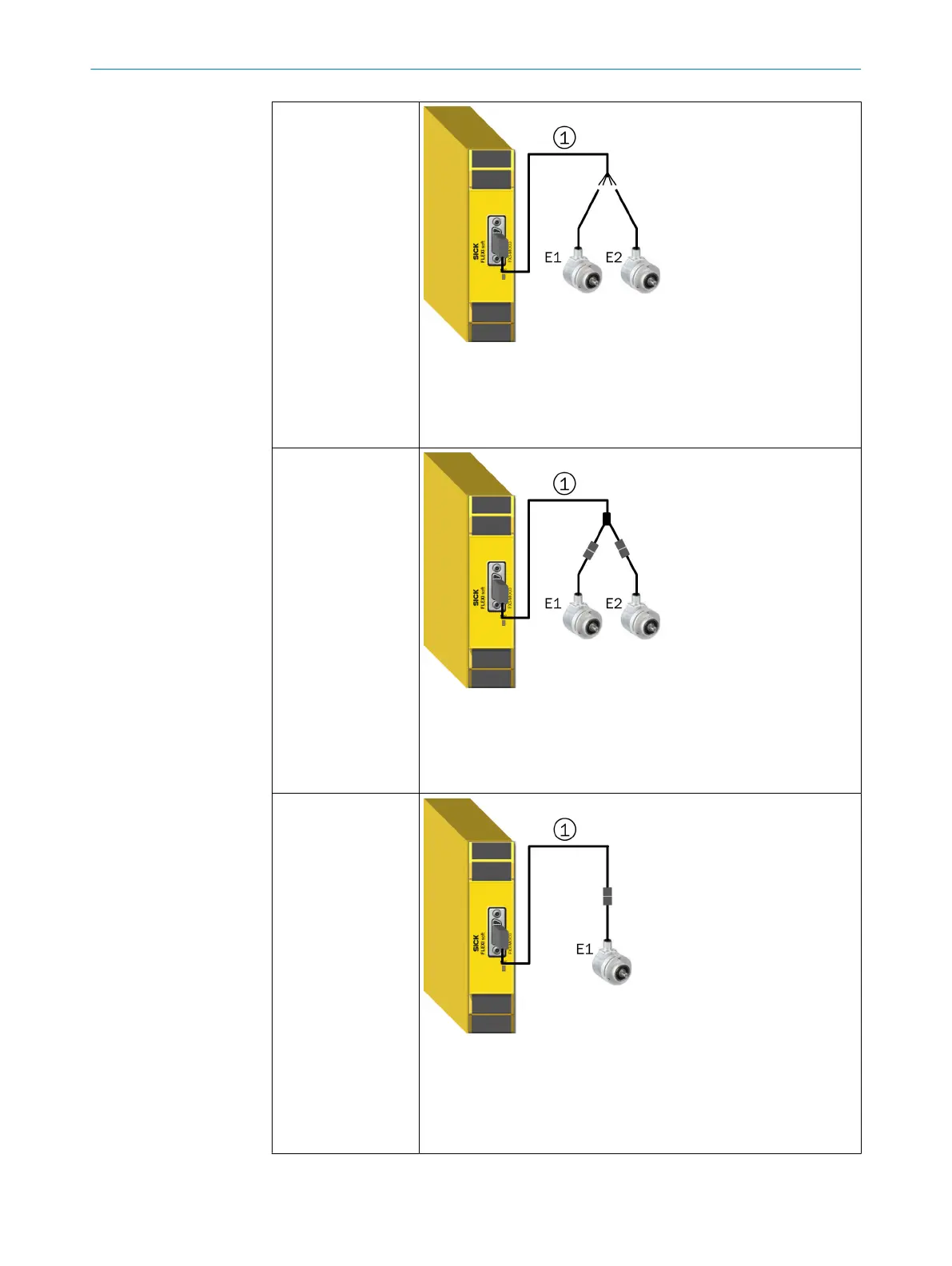

Connection with con‐
nec
tion cable for
direct encoder con‐
nection, open cable
end
E1 Encoder 1
E2 Encoder 2
1
Connection cable for direct connection of two encoders, open
c
able end(SICK part number 2067893 or 2077263)
Connection with con‐
nection cable for
direct encoder con‐
nection, 2×M12
E1 Encoder 1
E2 Encoder 2
1
Connection cable for direct connection of two encoders,
2×M12(SIC
K part number 2094381)
Connection with con‐
nection cable for
direct encoder con‐
nection, chosen from
the following:
1× M12, 8-pin
(e.g., for DFS60S
Pro)
1× M12, 12-pin
(e.g., for SSI+
sine-cosine)
E1 Encoder 1
1
Connection cable for direct connection of one encoder,
1×M12, 8-pin (SIC
K part number 2094403, 2094426,
2094427, or 2094428) or 1×M12, 12-pin (SICK part number
2094372, 2094434, 2094435, or 2094436)
ELECTRICAL INSTALLATION 5
8012478/1IG6/2023-02-24 | SICK O P E R A T I N G I N S T R U C T I O N S | Flexi Soft Modular Safety Controller
