Commissioning
For the alignment of the sender, the laser beam is deflected within the sender onto a
transparent display screen with the aid of the laser deflector mirror. As soon as correct
alignment is achieved, the display screen, which can be seen from the exterior,
illuminates (see Fig. 46).

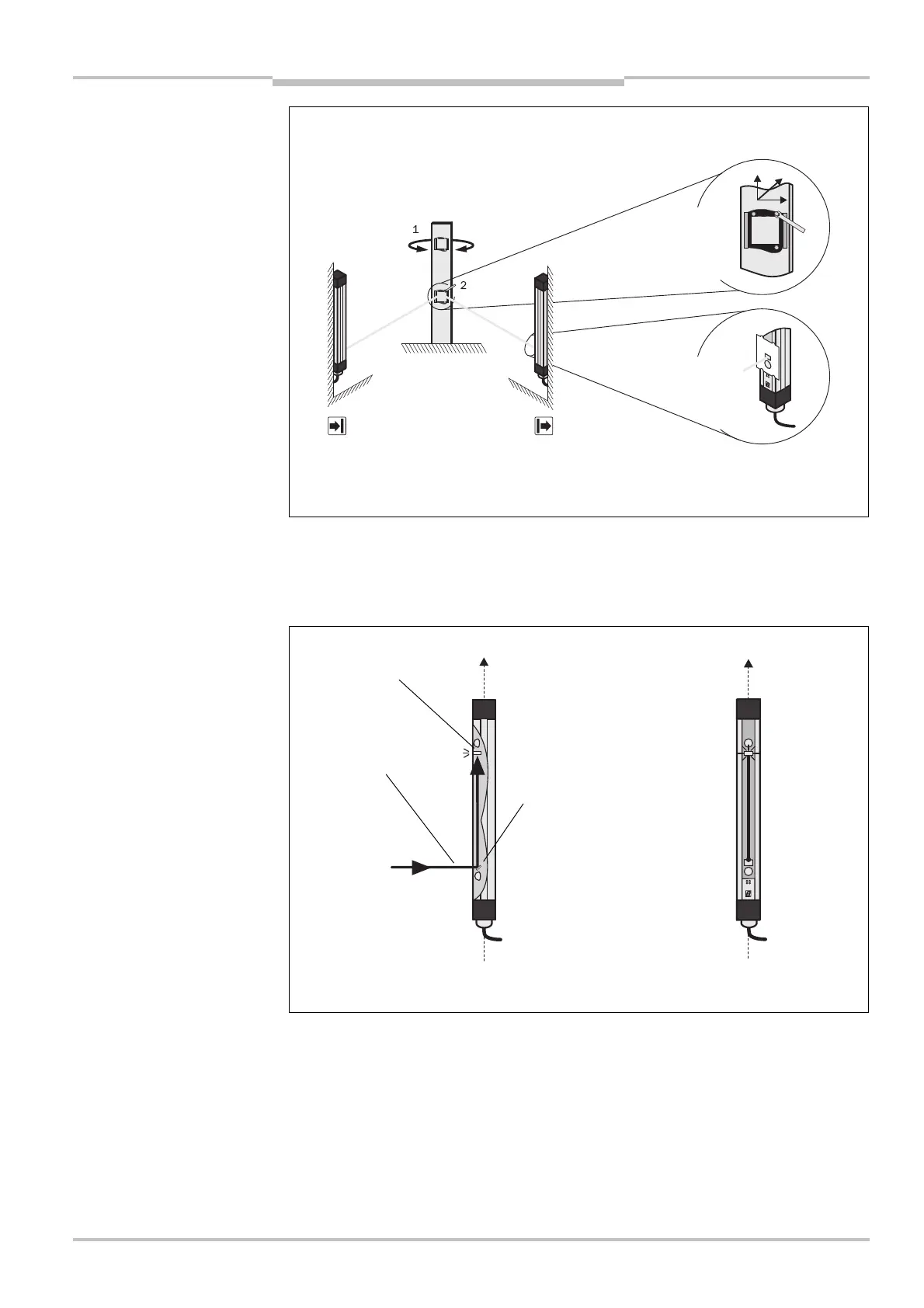

Fig. 45: Alignment of the
deflector mirror to the sender
using the laser alignment aid
Note
Fig. 46: Principle of laser
deflection in the sender
Deflector mirror
Fine
adjustment
is
performed
with
the
aid of the three adjusting screws.
The laser beam is incident in
the middle of the hole in the
alignment
template.
Transparent
display screen
Laser
deflector
mirror
Laser
beam
The
display
screen
illuminates
when
the laser beam is incident on it.
