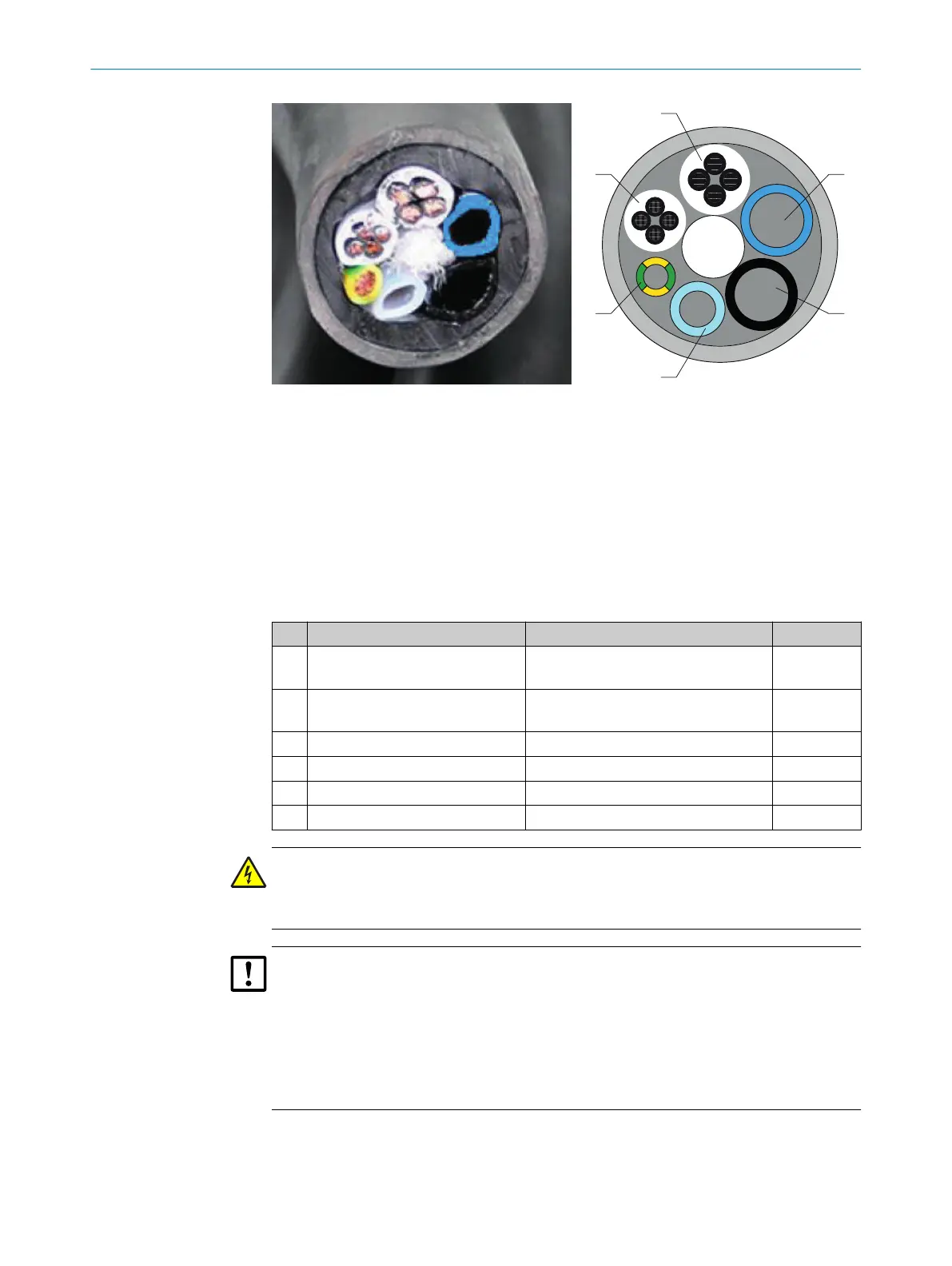

Figure 12: Tube bundle cable - overview
1
Power supply
2
Pt100 lines
3
Grounding conductor
4
PTFE tube DN4/6
5
PA tube black DN6/8; Imprint “1”
Connections on analyzer and gas sampling probe must match
6
PA tube black DN6/8; Imprint “2”
Connections on analyzer and gas sampling probe must match
No. Designation Function Dimension
1
Power supplies Lines 1 and 2: Gas sampling filter
Lines 3 and 4: Probe tube (optional)
4 x 1.5 mm
2
2
Signal lines (Pt100) Lines 1 and 2: Gas sampling filter
Lines 3 and 4: Probe tube (optional)
4 x 1.0 mm
2
3
Grounding conductor (gnge) Ground 1 x 4.0 mm
2
4
PTFE hose (white) Zero gas DN 4/6
5
PA hose (black) Control air main valve DN 6/8
6
PA hose (blue) Backflush air DN 6/8
WARNING
Danger to life by electric voltage
b
Only allow an authorized electrician to work on the electric system
CAUTION
The tube bundle cable is unusable when it is cut off too short.
The tube bundle cable is unusable when a lead inside is damaged when removing the
sheath.
b
If the tube bundle cable is long enough: Leave a piece as “reserve”.
b
Only remove the sheath from the tube bundle cable when you are technically capa‐
ble of doing this.
1. Remove 1900 mm of the tube bundle cable sheath.
2. Lead the tube bundle cable through the screw fitting on the enclosure top.
3. Lead tubes and lines of the tube bundle cable downwards in the cable duct.
INSTALLATION 2
8017585/YXD9/V3-1/2017-05 | SICK T E C H N I C A L I N F O R M A T I O N | MARSIC300
