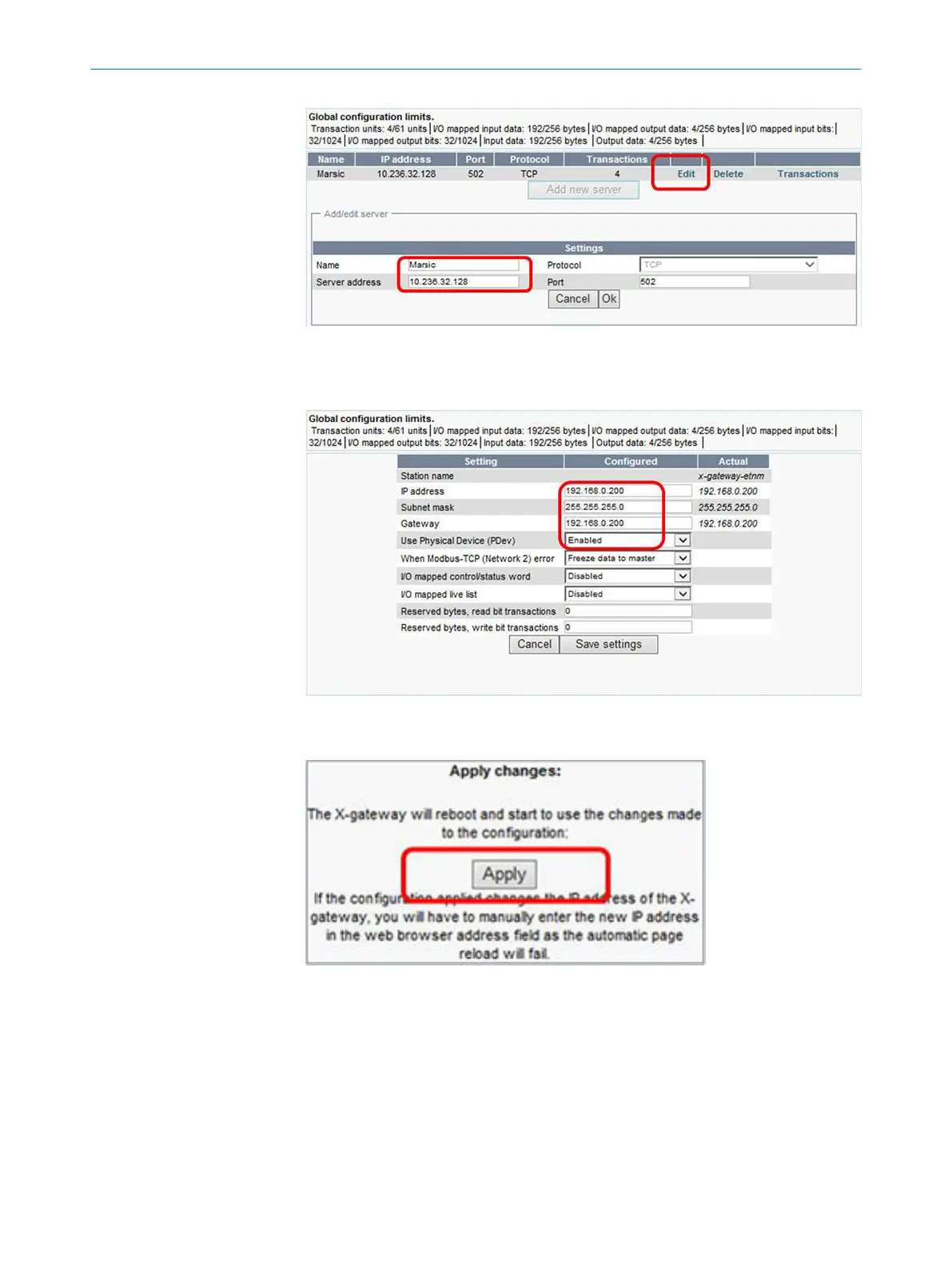

Figure 27: Menu Configuration/Modbus Servers
7. Enter address from PROFINET and save the settings. The address must be the
same as in the operator-side SPS.
Figure 28: Menu Configuration/PROFINET IO
8. Click “Apply” to activate all changes.
Figure 29: Menu Tools/X-gateway management
9. Setup the hardware configuration on the operator-side (operator SPS) according to
the following Table:
INSTALLATION
