Modbus restart with acceptance of the settings
Modbus values (MBVi)
Menu: Parameterization/I/O/Data/Modbus values
The Modbus values determine which values are stored in the Modbus.
Edit window:

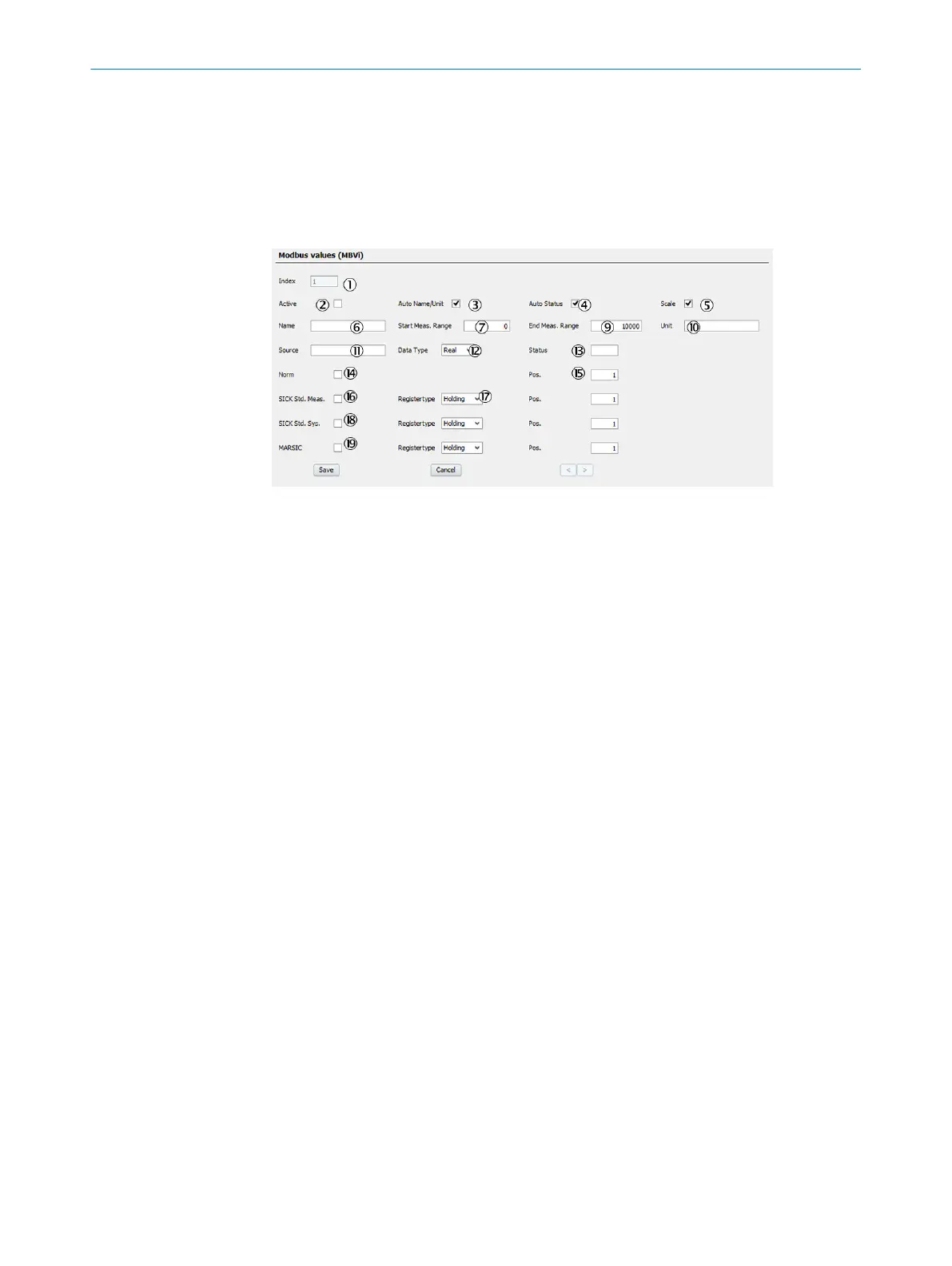

Figure 80: Menu Modbus values
1
Index: Sequential numbering of the Modbus values
2
Active Modbus values: Checkmark: Active
3
When the checkmark for “Auto Name/Unit” is set, the name and unit of the tag specified in
the source are automatically used.
4
With Autostatus, the system status is used automatically as status of the value
5
When the checkmark for scaling is activated, this value is scaled. It is scaled in register
range 4000 et seq. (Holding register) to 0 ... 10000.
6
Value name
7
Measuring range start
9
Measuring range end
ß
Physical unit of value
à
Source: Tag for which the value is to be used.
á
Data type (Real/Integer/Bool) (2 registers)
â
The status of the tag named here is used when Autostatus is not activated.
ã
Checkmark: Use standard range register 4000 et seq. (Holding register)
ä
Position: Offset in respective range
å
Checkmark: Use standard range register 1000 et seq.
æ
Register type (Holding/Input/Coil/DI)
ç
Checkmark: Use standard range register 2000 et seq.
è
Checkmark: Use standard range register 3000 et seq.
Modbus input values (MBIVi)
Menu: Parameterization/I/O/Data/Modbus input values
Serves to assign a name, unit and data type to the measured values stored by the Mas‐
ter in the Holding register, whereby i is the index. Two registers incrementing from the
offset are used per measured value. A status is not considered.
Edit window:
PARAMETERIZATION
6
8017585/YXD9/V3-1/2017-05 | SICK T E C H N I C A L I N F O R M A T I O N | MARSIC300
57
