Plug Subassembly Pin Assignment Tube bundle
cable line
number
1
PROBE1 Gas sampling system probe tube 1
(Lines from tube bundle cable)
4 L (L) 4x1.5
mm
2
3
5 N (L) 4
6 PE (not connected)
TUBE2 Sample gas line 2 1 ... 3 As for TUBE1
FILTER2 Gas sampling system filter 2 1 ... 3 As for FILTER1
PROBE2 Gas sampling system probe tube 2 4 ... 6 As for PROBE1
TUBE3 Sample gas line 3
1
The connections must match the connections on the gas sampling system
Connections for interfaces and SD card
ETHO ETH1 USB CAN PROFIBUS
1 2 RS422/RS485 RS232 02 DISP.
PT100 DIGITAL INPUTS DIGITAL OUTPUTS VALVE OUTPUTS
I/0-MOD.

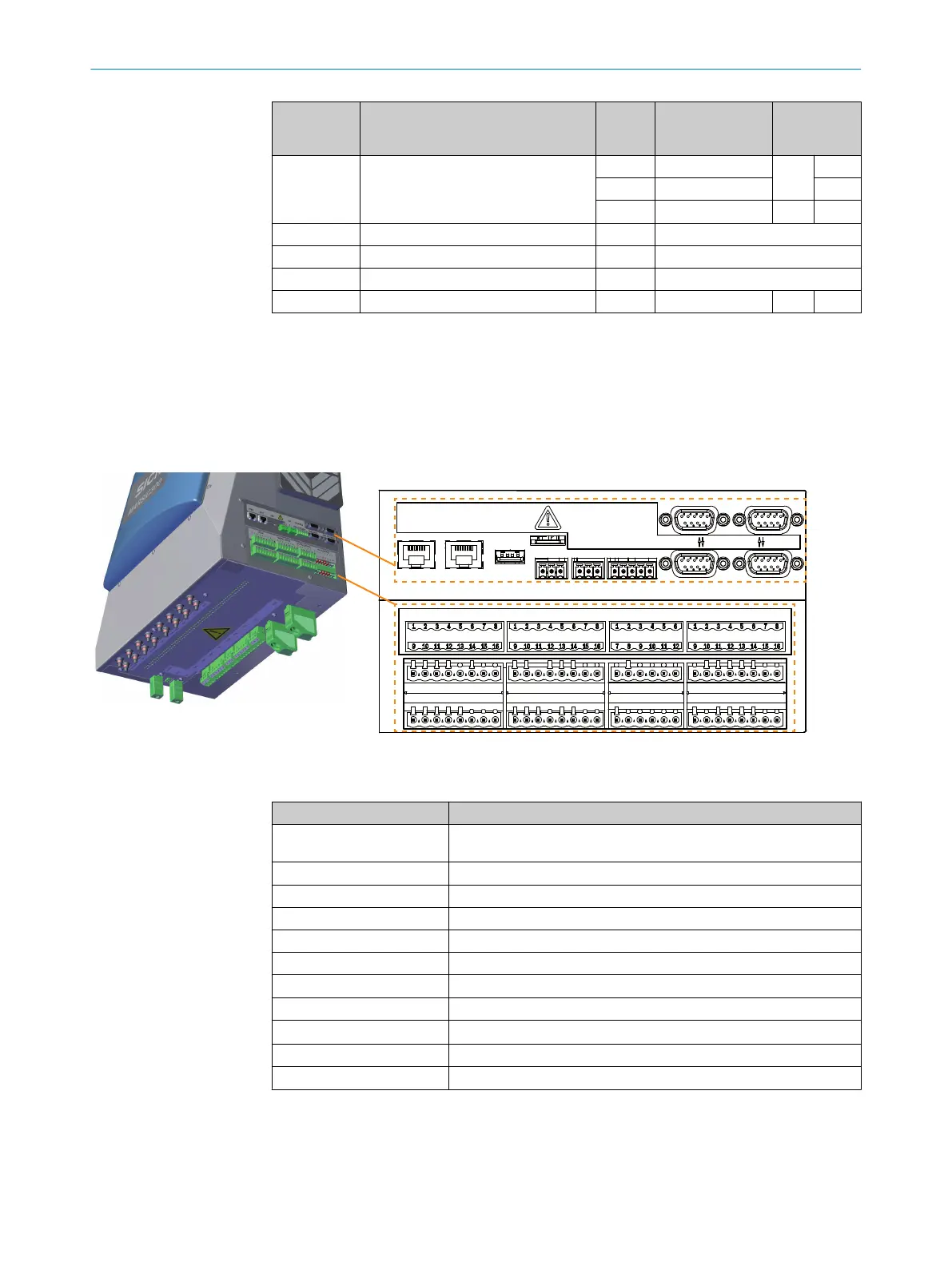

Figure 127: Connections overview
Table 33: Data interfaces - overview
Plug Connection for
ETH0 Ethernet (e.g. SOPAS ET), MPR (remote maintenance), communication via
Modbus TCP
ETH1 Internal
USB Internal
SD card SD card (on the right, next to USB)
CAN1 Internal
CAN2 Internal
RS422, RS485 Internal
RS232 (top plug) Internal
O2 (bottom plug) O
2
sensor
DISP (top plug) Display
I/O-MOD (bottom plug) Internal
TECHNICAL DATA 10
8017585/YXD9/V3-1/2017-05 | SICK T E C H N I C A L I N F O R M A T I O N | MARSIC300
