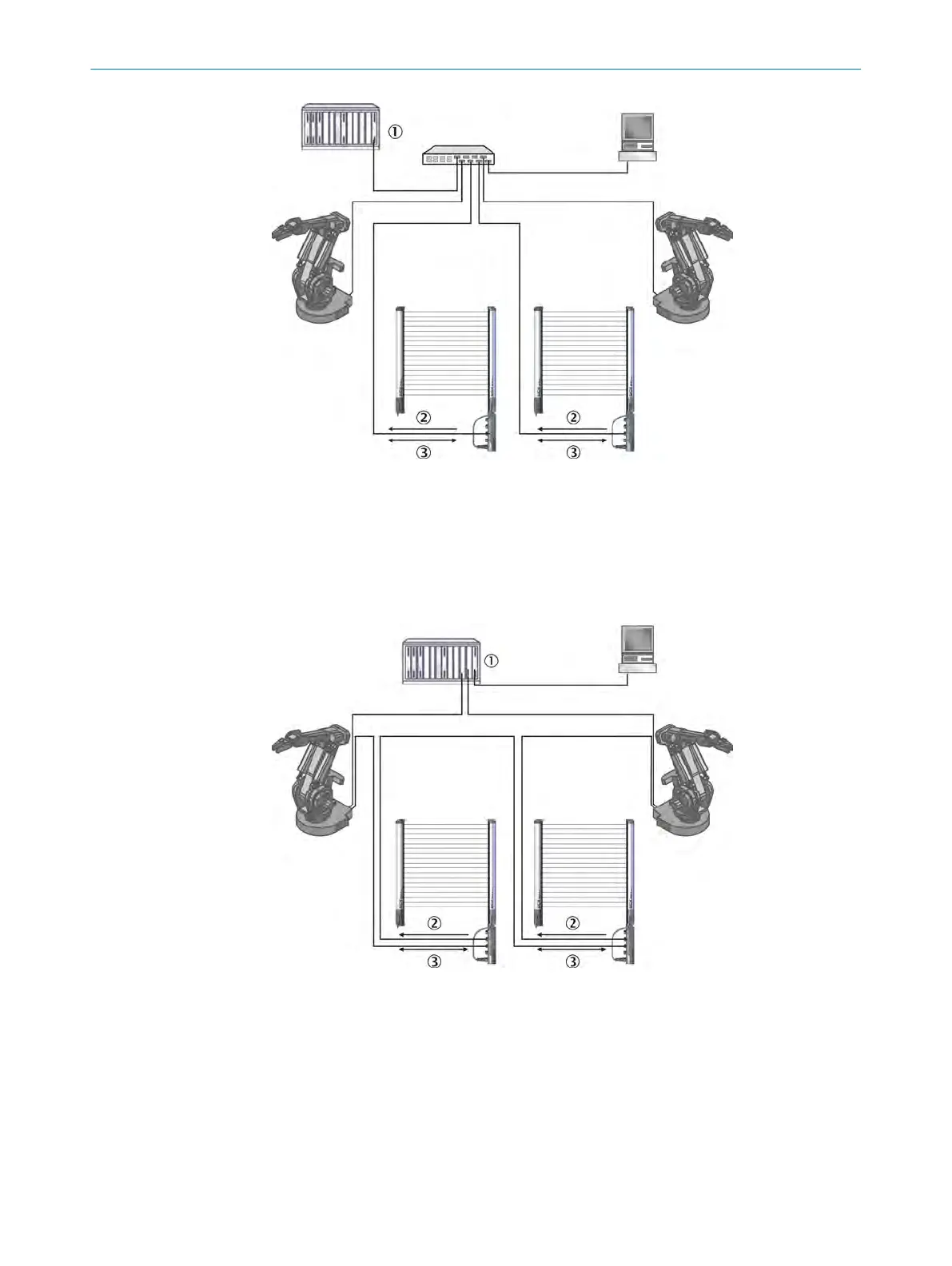

Figure 57: Example of an Ethernet/IP network in a star structure
1
PLC
2
Cyclic data (process data)
3
Acyclic data (service data)
However, to achieve greater availability and reduce the wiring work required, the MLG-2
c
an also be int
egrated in a device level ring (DLR).
Figure 58: Example of an Ethernet/IP network in a device level ring
1
PLC
2
Cyclic data (process data)
3
Acyclic data (service data)
Cyclic data (process data)
The ML
G-2 supports implicit messaging via UDP/IP. Using process data, the MLG-2 can
offer different I/O assemblies.
A configuration assembly can be used to configure the MLG-2.
THE MLG-2 WEBCHECKER IN THE FIELDBUS NETWORK 10
