Structure of data record 1

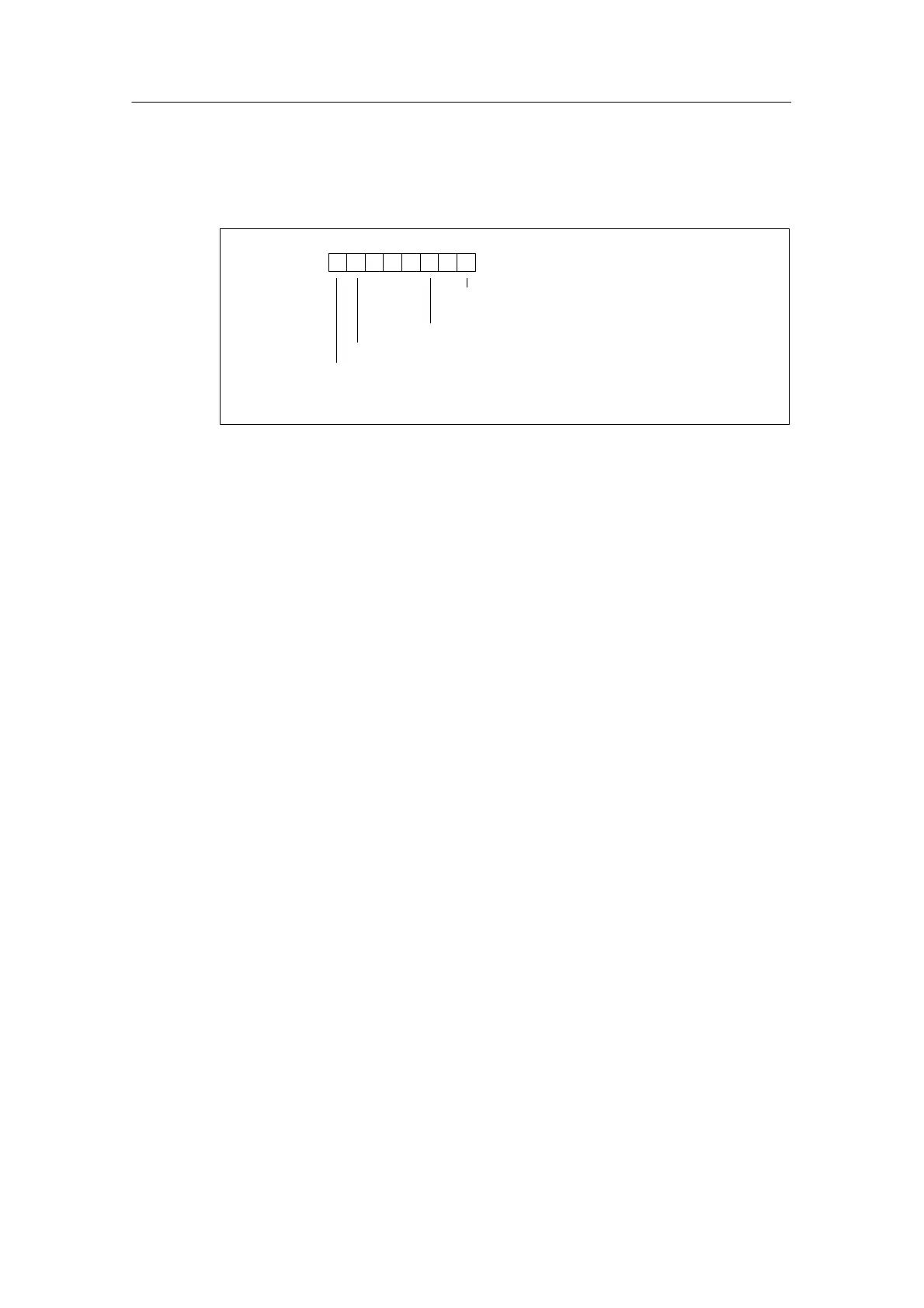

The figure below shows the structure of data record 1 of the SM 331; AI 8 x TC.
You activate a parameter by setting the corresponding bit to “1”.
Byte 0
76 0
Diagnostics interrupt enable
Limit value interrupt enable
Bytes 1 to 13 are not assigned
Cycle end interrupt enable
2
Temperature unit 0: degrees Celsius
1: degrees Fahrenheit
Figure A-8 Data Record 1 of the Parameters for SM 331; AI 8 x TC
