C-2
Programmable Logic Controllers S7-300 Module Data
A5E00105505-03

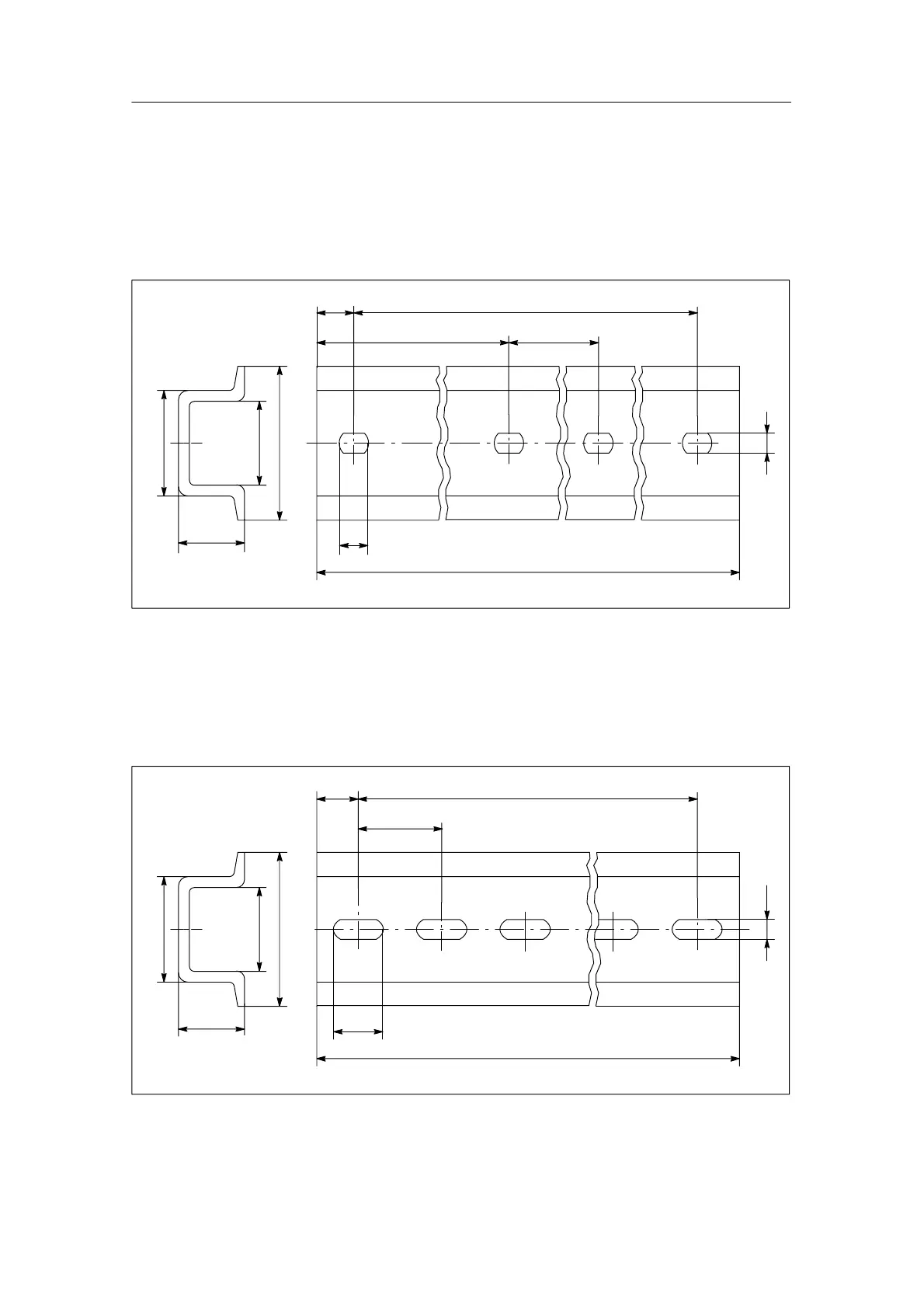

C.1 Dimension Drawings of the Rails
483 mm standard rail
Figure C-1 shows the dimension drawing of the 483 mm standard rail.
15
19
35
24
8.7 465.2
163.9 155
11
482.6
7
Figure C-1 Dimension Drawing of the 483 mm Standard Rail
530 mm standard rail
Figure C-2 shows the dimension drawing of the 530 mm standard rail.
15
19
35
24
15 20 25 = 500
25
18
530
5.2
Figure C-2 Dimension Drawing of the 530 mm Standard Rail
