C-10
Programmable
Logic Controllers S7-300 Module Data
A5E00105505-03
PS 307; 10 A

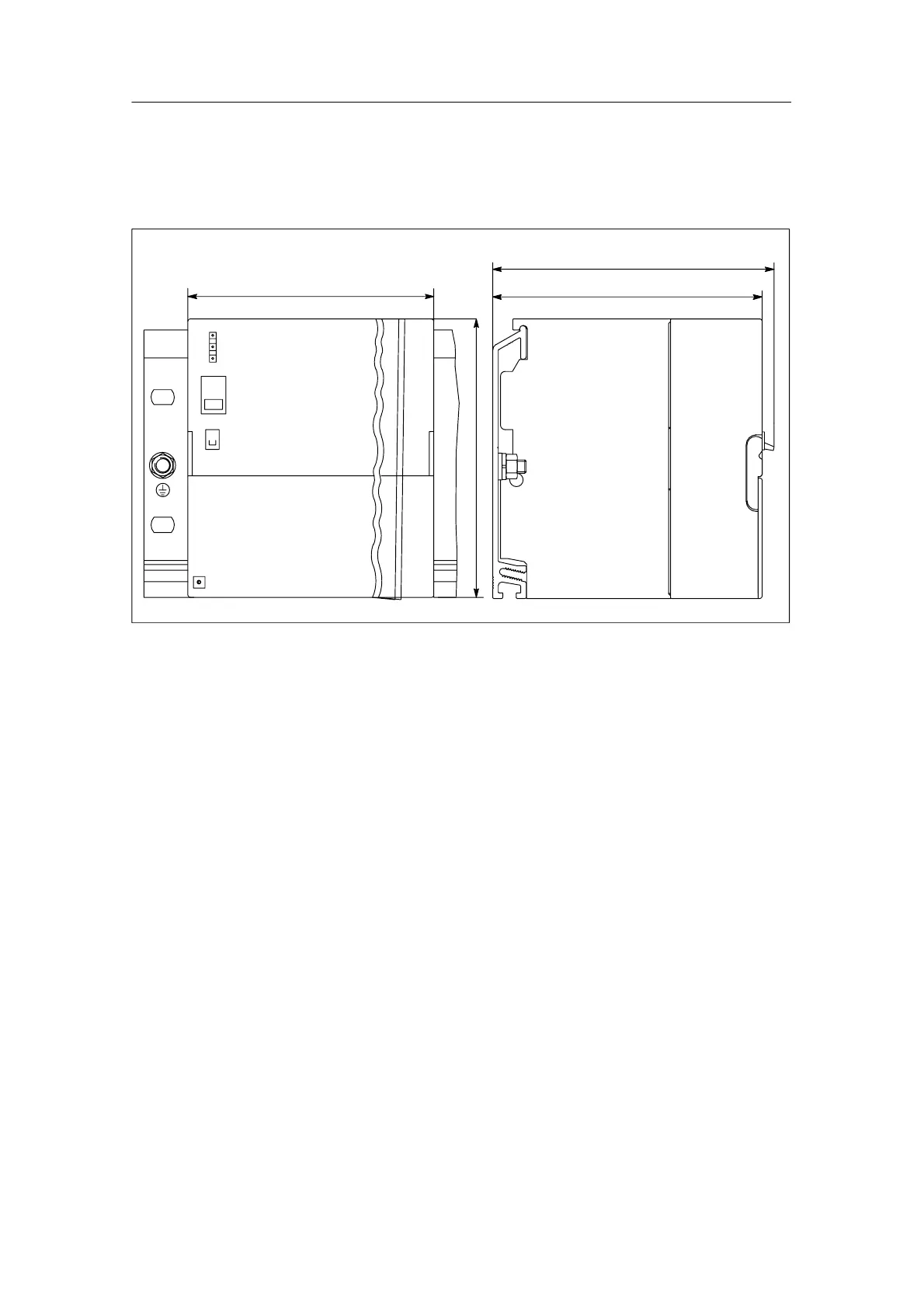

Figure C-14 shows the dimension drawing of the PS 307; 10
A power supply
module.
120
127.5
200
125
Figure C-14
Power Supply Module PS 307; 10 A
529
531
