Interface Modules
6-8
Programmable Logic Controllers S7-300 Module Data
A5E00105505-03
Front View

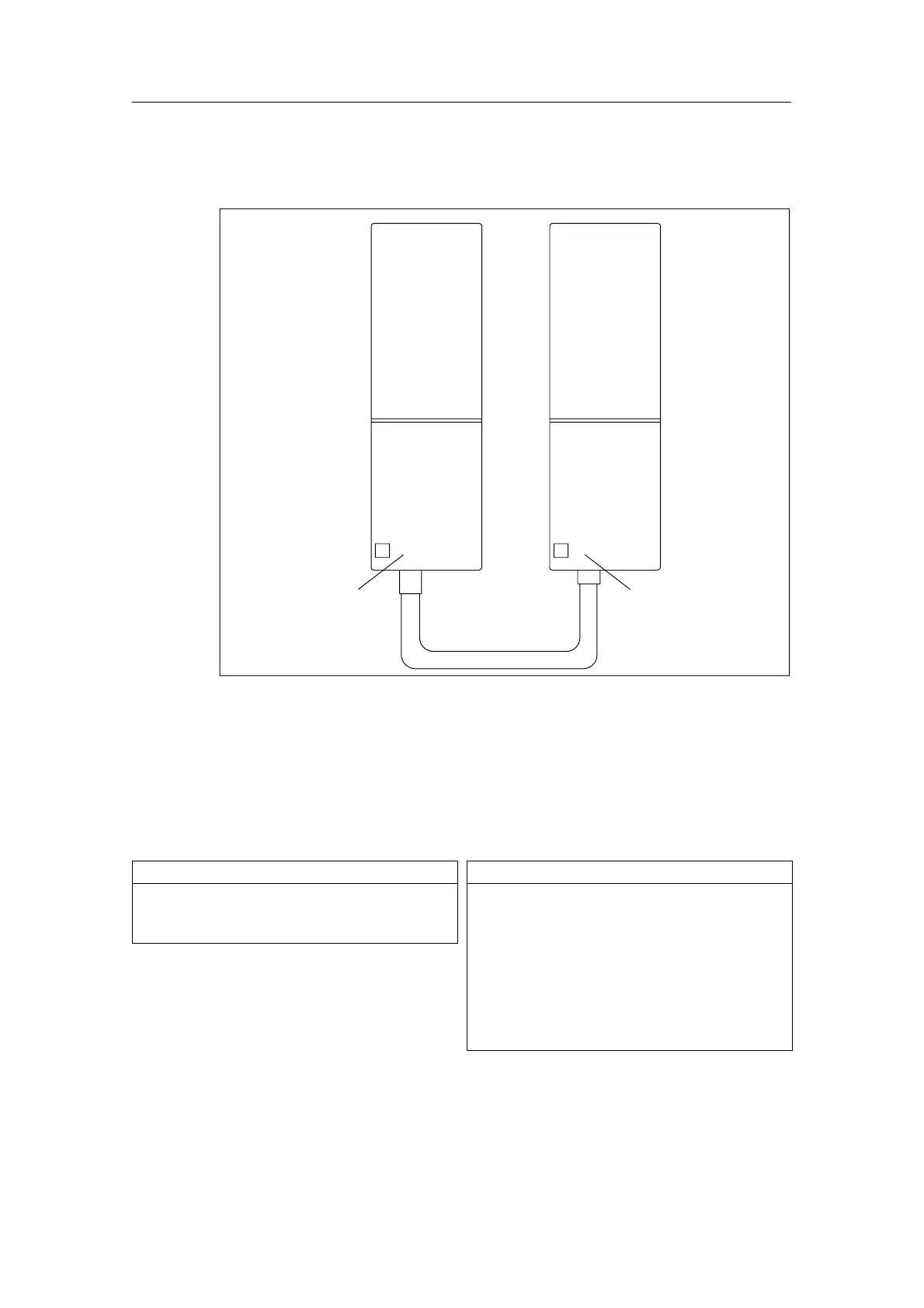

Figure 6-3 shows the front view of the interface module IM 365.
In rack 1 In rack 0
IM 365
RECEIVE
IM 365
SEND
Figure 6-3 Front View of the Interface Module IM 365
Technical specification
The following overview lists the technical specifications for the interface module
IM 365.
Dimensions and Weight
Dimensions W x H x D
per rack (in millimeters)
40 x 125 x 120
Total weight 580 g
Data for Specific Module
Length of cable
Maximum length to next IM 1 m
Current consumption
From the backplane bus
Power loss
100 mA
typ. 0.5 W
Current output
Per rack
max. 1.2 A
0.8 A
Status and fault LEDs No
