Dimension Drawings
C-3
Programmable Logic Controllers S7-300 Module Data
A5E00105505-03
830 mm standard rail

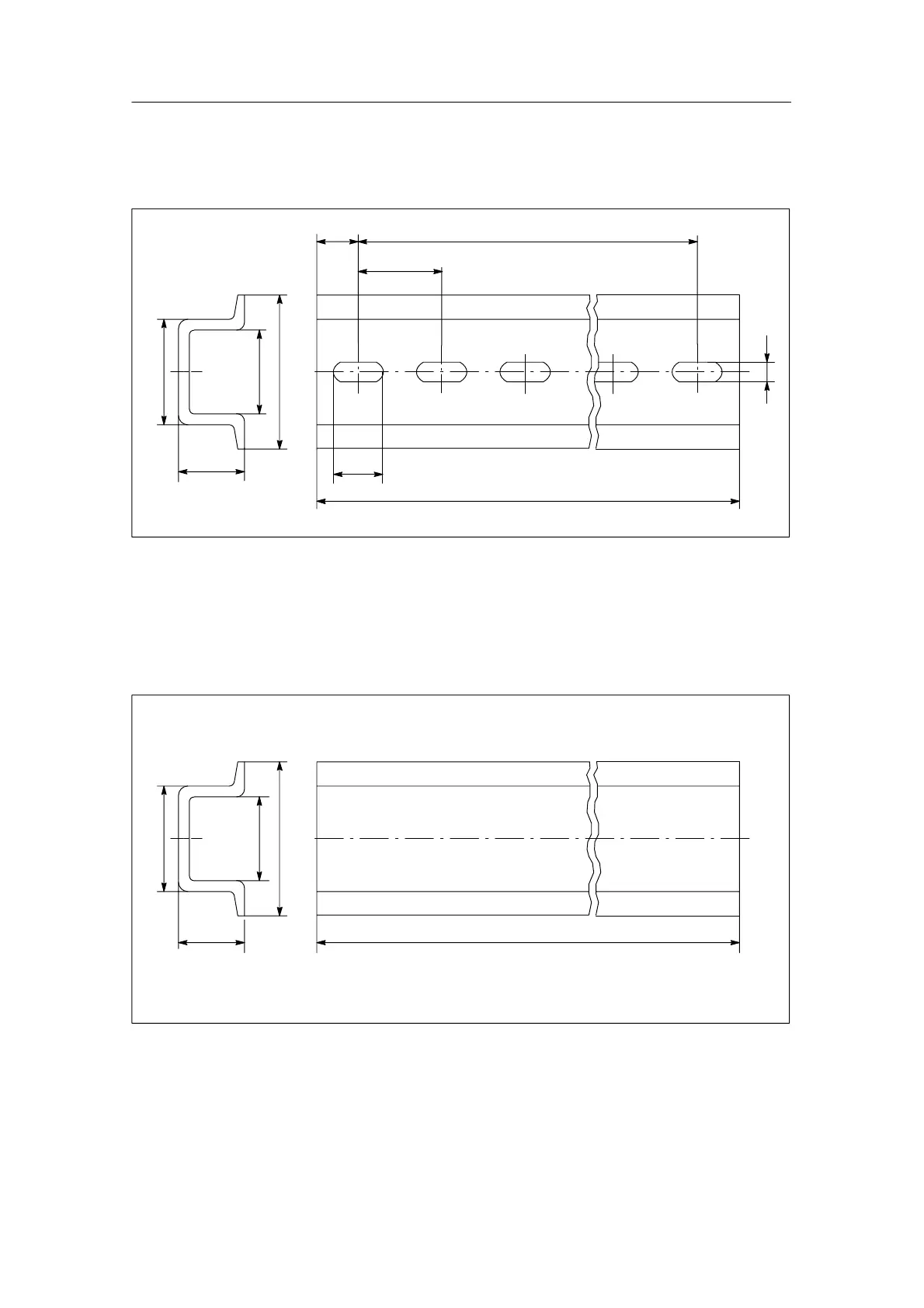

Figure C-3 shows the dimension drawing of the 830 mm standard rail.
15
19
35
24
15 32 25 = 800
25
18
830
5.2
Figure C-3 Dimension Drawing of the 830 mm Standard Rail
2000 mm standard rail
Figure C-4 shows the dimension drawing of the 2000 mm standard rail.
15
19
35
24
2000
Figure C-4 Dimension Drawing of the 2000 mm Standard Rail
