Dimension Drawings
C-7
Programmable Logic Controllers S7-300 Module Data
A5E00105505-03
Rail for “Insert and Remove” function

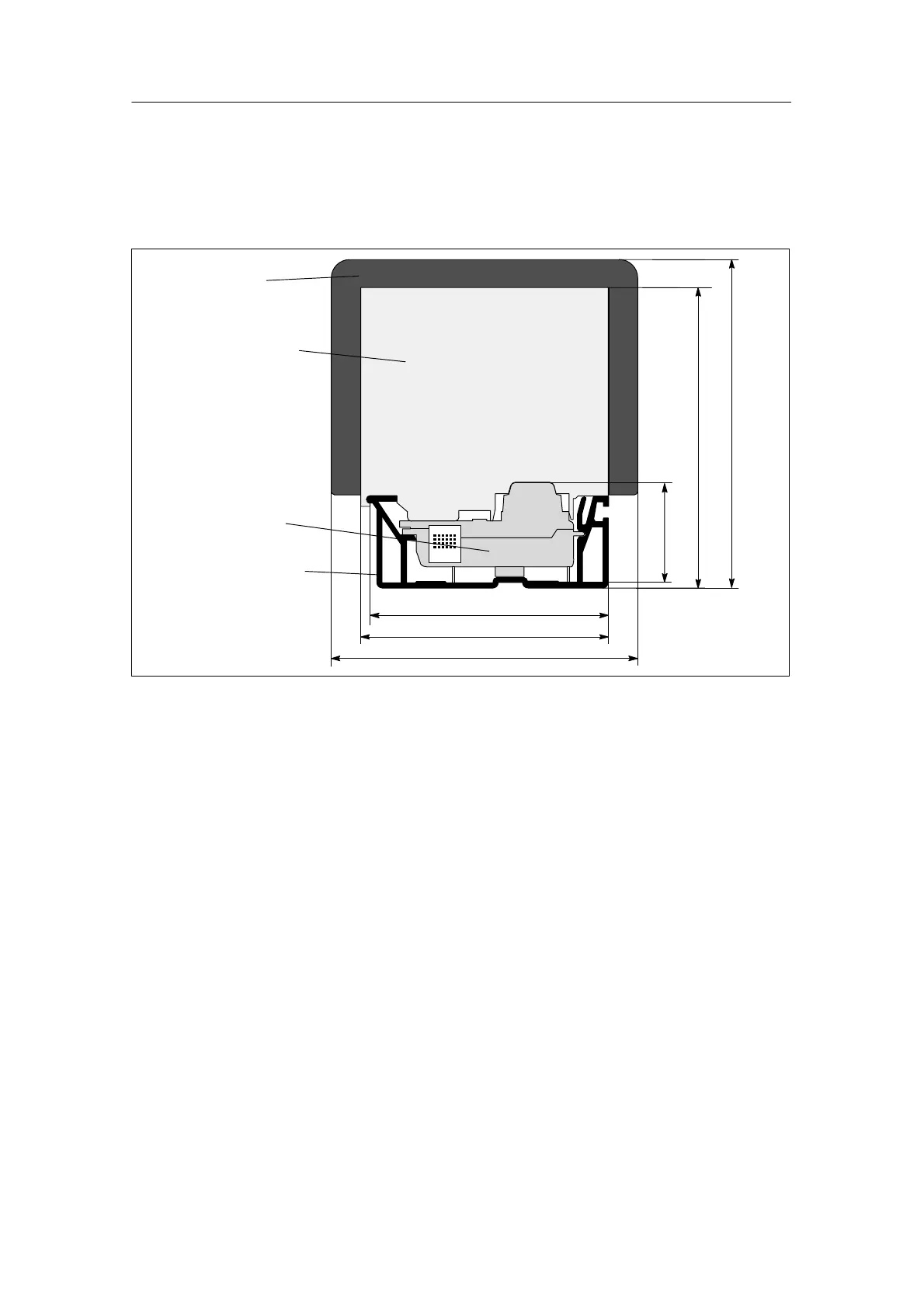

Figure C-10 shows the dimension drawing of the rail for the “Insert and Remove”
function with active bus module, S7-300 module and explosion-proof partition. The
rail is 482.6 mm or 530 mm long.
152
166
122
125
155
Explosion-proof
partition
S7-300 module
Active bus module
Rail for the ”Insert
and Remove”
function
59
Figure C-10 Complete Dimension Drawing of a Rail for “Insert and Remove” Function with Active
Bus Module, S7-300 Module and Explosion-proof Partition
