Siemens 6RA70 Series User Manual

11-10 Siemens Energy & Automation
SIMOREG DC Master Base Drive Panel Operating Instructions

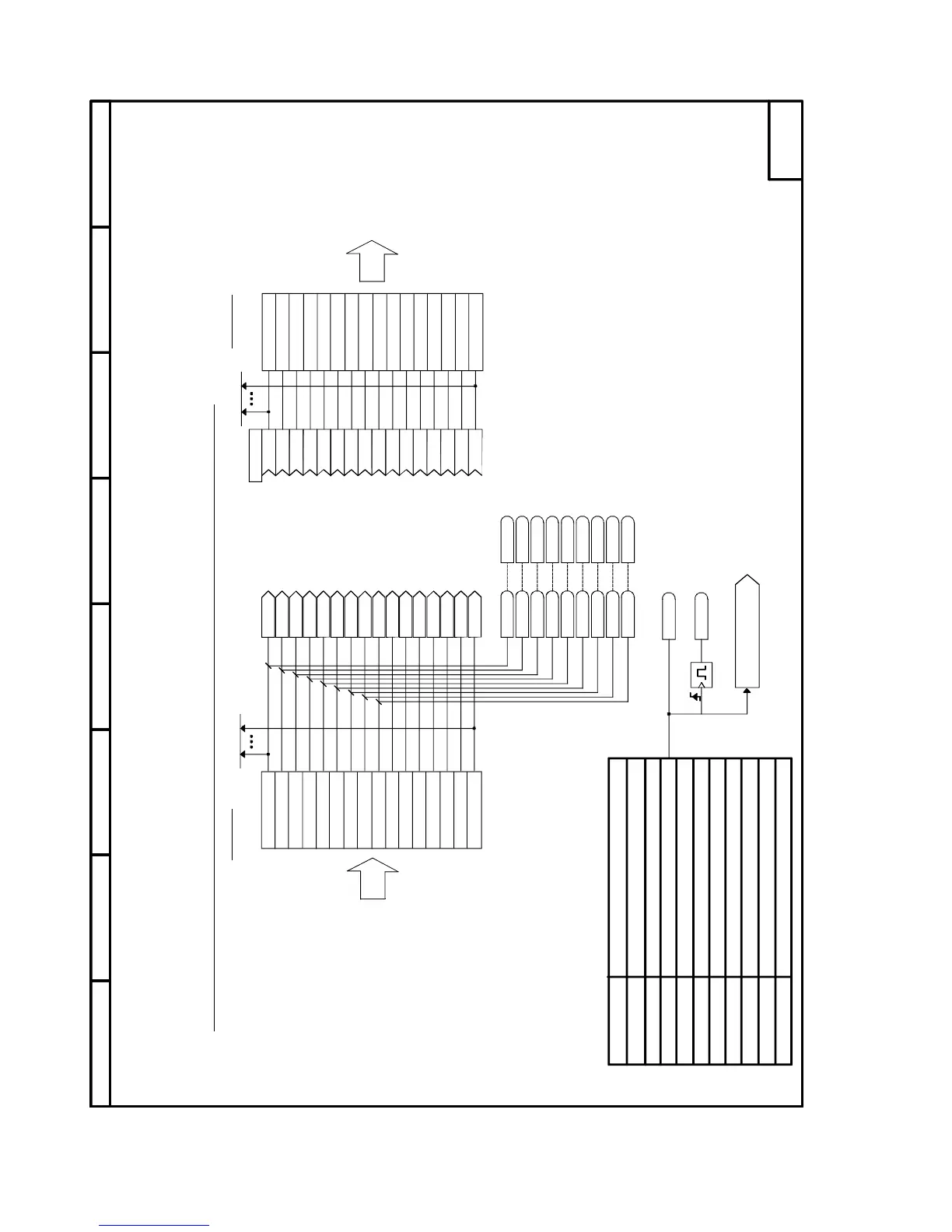

Sheet 9 Data Exchange CB / TB to Base (PZD)
.04 .01 .03 .02 .06 .05 .07 .08 .10 .09 .14 .11 .13 .12 .16 .15
n733.01 to .16
U734 (0)
K K K K K
1s
B3030
B3031
K K K K K
n735.01 to .16
K K K K K K
K3001 K3002
K3003 K3004 K3005
K3006 K3007 K3008
K3009
K3010 K3011 K3012
K3013
K3014
K3015
K3016
B3100
Bit 0 ... Bit 15
B3200 B3300 B3400 B3500 B3600 B3700 B3800 B3900
B3115 B3215
B3315 B3415
B3515 B3615 B3715 B3815 B3915
U722.1 (0 ms) U711-U720 Index.01 n732 Index.01-.32 n738 Index.01-.04 n739 Index.01-.04 P927 U721 Index.01-.05 P918 Index.01
Receive data
Word 1 Word 2 Word 3 Word 4 Word 5 Word 6 Word 7 Word 8 Word 9
Word 10
Transmit data
Fault message trigger
1 = "Telegram monitoring timeout"
Word 11
Word 12 Word 13 Word 14 Word 15 Word 16
Word 1
Word 2 Word 3 Word 4 Word 5 Word 6 Word 7 Word 8
Word 9
Word 10
Word 11
Word 12 Word 13 Word 14 Word 15 Word 16
every 16 bits
1 = "Fault F082" (fault value = 10)
Parameters for the first CB board
Telegram receive monitoring time CB parameters 1 to 10 CB or TB diagnosis CB parameter 11 Bus address Enable parameterization
Display parameter job (PKW) from CB
Display parameter response (PKW) to CB
From supplementary board
To supplementary board
Process data exchange with a communications board (CB) or technology board (TB)
U710 Index.01 Initialize link to supplementary boards n738 Index.09-.12
Display parameter job (PKW) from TB
n739 Index.09-.12
Display parameter response (PKW) to TB
87564321
6RA70 DC MASTER
SIMPLIFIED BLOCK DIAGRAM
(ALL AVAILABLE FUNCTIONS ARE NOT SHOWN ON SIMPLIFIED BLOCK DIAGRAM)
9
