6-6 Siemens Energy & Automation
SIMOREG DC Master Base Drive Panel Operating Instructions

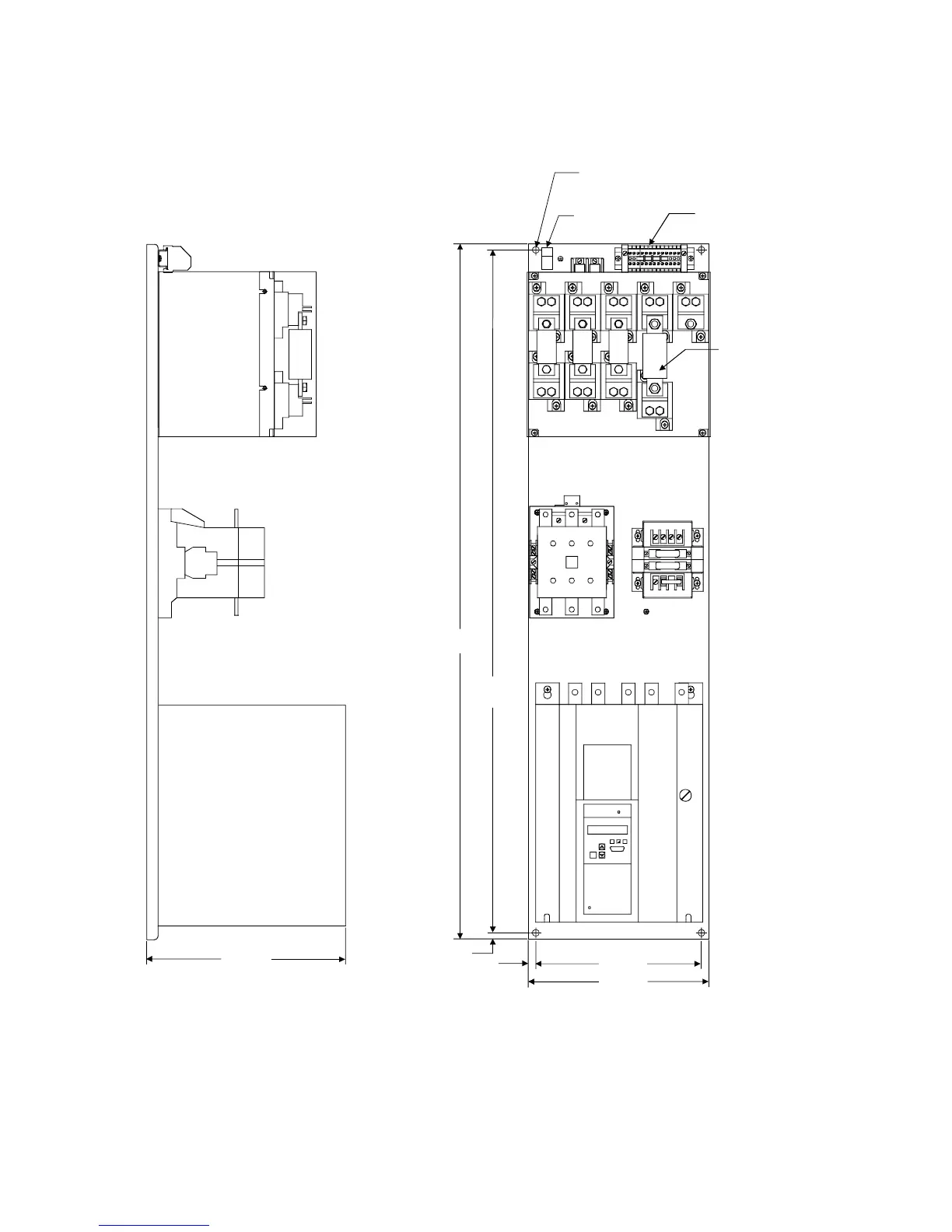

Dimensions are mm (inches)
SIEMENS
P
X300
6RA70
326(12.8)
10
(0.4)
12
(0.45)
1100
(43.3)
1120
(44.1)
266 (10.5)
290 (11.4)
210 AMP BASE DRIVE PANEL, (1 & 4Q)
L1 L2 L3 A1 A2
TERMINALS 80 - 92
GROUND
TERMINAL
MOUNTING HOLES FOR M8,
(.312"), SCREWS, 4-PLACES
FUSE NOT
SUPPLIED ON
1-QUAD UNITS
NOTE, IMPORTANT:
ALLOW AT LEAST 100 MILLIMETERS, (4"), OF CLEARANCE ABOVE AND BELOW THE UNIT
TO ENSURE UNRESTRICTED AIR FLOW. ADDITIONAL CLEARANCE MAY BE REQUIRED TO ALLOW FOR WIRE
OR CABLE ENTRY/EXIT AND BENDING. REFER TO APPLICABLE CODES FOR FURTHER INFORMATION.
