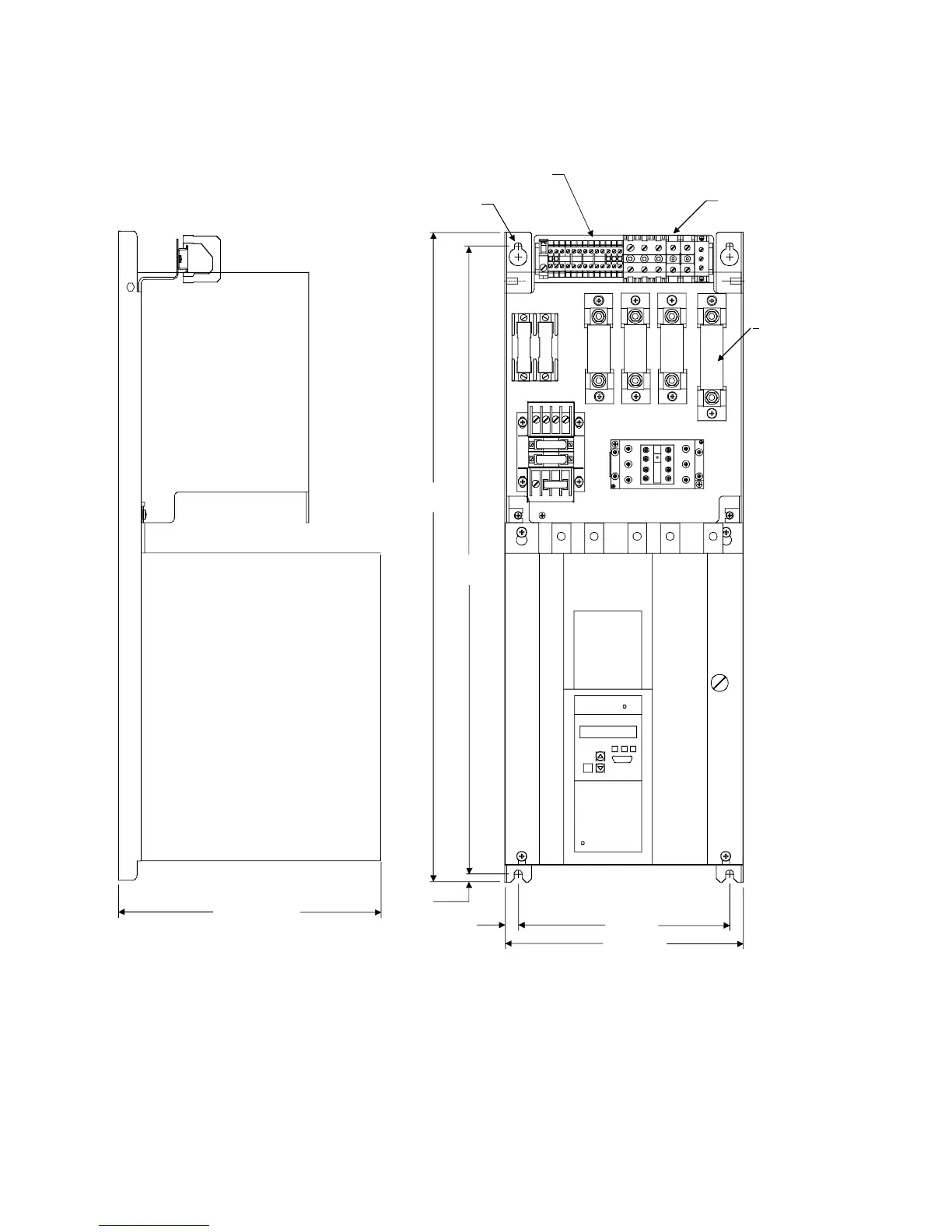

Siemens 6RA70 Series - 60 Amp Base Drive Panels Diagram

Siemens Energy & Automation 6-3
SIMOREG DC Master Base Drive Panel Operating Instructions
Dimensions are mm (inches)
6RA70SIEMENS
P
X300
339 (13.4)
TERMINALS 80 - 92
POWER TERMINALS
L1, L2, L3, A1, A2, GND
709
(27.9)
734
(28.9)
9
(0.4 )
238 (9.4)
268 (10.6)
15
(0.6)
60 AMP BASE DRIVE PANEL, (1 & 4Q)
MOUNTING HOLES FOR M8,
(.312"), SCREWS, 4-PLACES
FUSE NOT
SUPPLIED ON
1-QUAD UNITS
NOTE, IMPORTANT:
ALLOW AT LEAST 100 MILLIMETERS, (4"), OF CLEARANCE ABOVE AND BELOW THE UNIT
TO ENSURE UNRESTRICTED AIR FLOW. ADDITIONAL CLEARANCE MAY BE REQUIRED TO ALLOW FOR WIRE
OR CABLE ENTRY/EXIT AND BENDING. REFER TO APPLICABLE CODES FOR FURTHER INFORMATION.
