Siemens 6RA70 Series User Manual

6-10 Siemens Energy & Automation
SIMOREG DC Master Base Drive Panel Operating Instructions

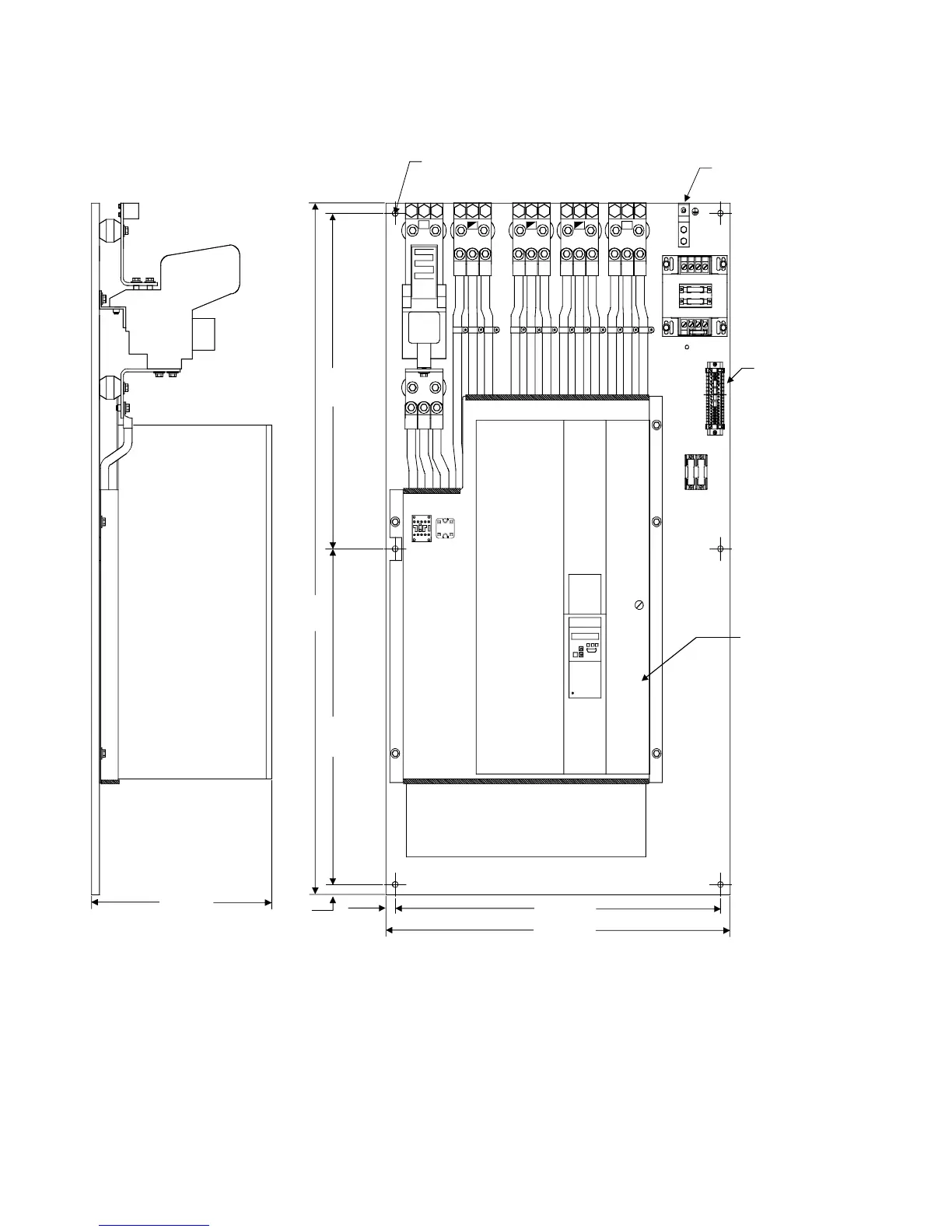

Dimensions are mm (inches)
X300
P
A1
A2
L1
L2
L3
SIEMENS 6RA70
TERMINALS
80 - 94
CABLE CONNECTIONS
TO POWER MODULE
THIS AREA
850 AMP BASE DRIVE PANEL, (1 & 4Q)
425 (16.7)
768 (30.2)
813 (32.0)
22
(0.9)
740
(29.1)
740
(29.1)
1524
(60.0)
22
(0.9)
MOUNTING HOLES FOR M10,
(.375"), SCREWS, 6-PLACES
GROUND
TERMINAL
NOTE:
SEMICONDUCTOR
FUSES ARE
LOCATED INSIDE
THE 6RA70
POWER MODULE

Siemens 6RA70 Series Specifications

General

Brand	Siemens
Model	6RA70 Series
Category	DC Drives
Language	English
