Siemens Energy & Automation 6-9
SIMOREG DC Master Base Drive Panel Operating Instructions

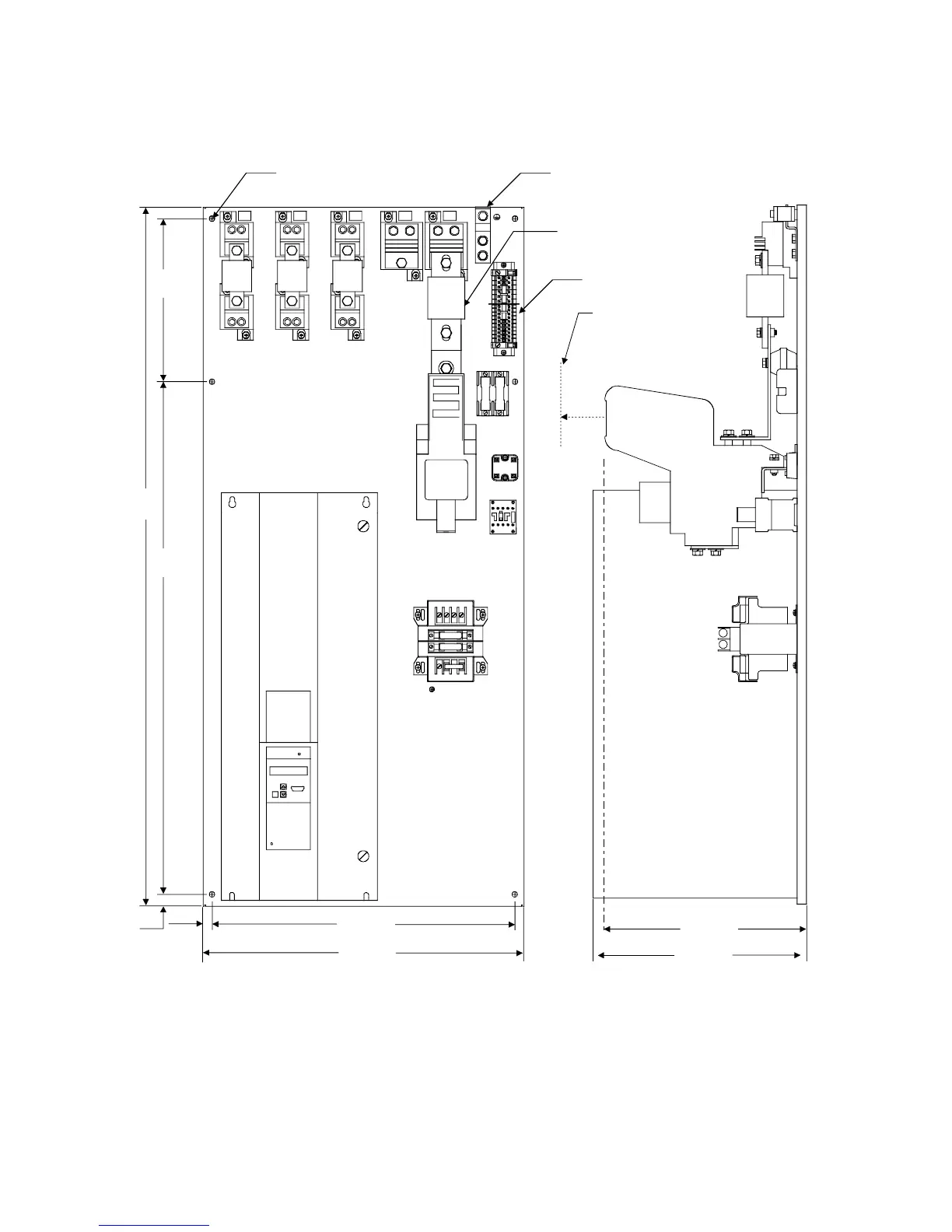

Dimensions are mm (inches)
L1
L2
L3 A1 A2
P
X300
SIEMENS
6RA70
376 (14.8)
520 (20.5)
550 (21.6)
15
(0.6)
20
(0.8)
1200
(47.2)
880
(34.6)
280
(11.0)
TERMINALS 80 - 94
35
(1.4)
510 AMP BASE DRIVE PANEL, (1 & 4Q)
MOUNTING HOLES FOR M10,
(.375"), SCREWS, 6-PLACES
GROUND TERMINAL
FUSE NOT SUPPLIED
ON 1-QUAD UNITS
ADDITIONAL CLEARANCE
REQ'D FROM CONTACTOR
ARC CHUTE TO ANY
GROUNDED METAL
348 (13.7)
NOTE, IMPORTANT:
ALLOW AT LEAST 100 MILLIMETERS, (4"), OF CLEARANCE ABOVE AND BELOW THE UNIT
TO ENSURE UNRESTRICTED AIR FLOW. ADDITIONAL CLEARANCE MAY BE REQUIRED TO ALLOW FOR WIRE
OR CABLE ENTRY/EXIT AND BENDING. REFER TO APPLICABLE CODES FOR FURTHER INFORMATION.
