Siemens 6RA70 Series - Base Drive Panel Outlines

6-2 Siemens Energy & Automation
SIMOREG DC Master Base Drive Panel Operating Instructions

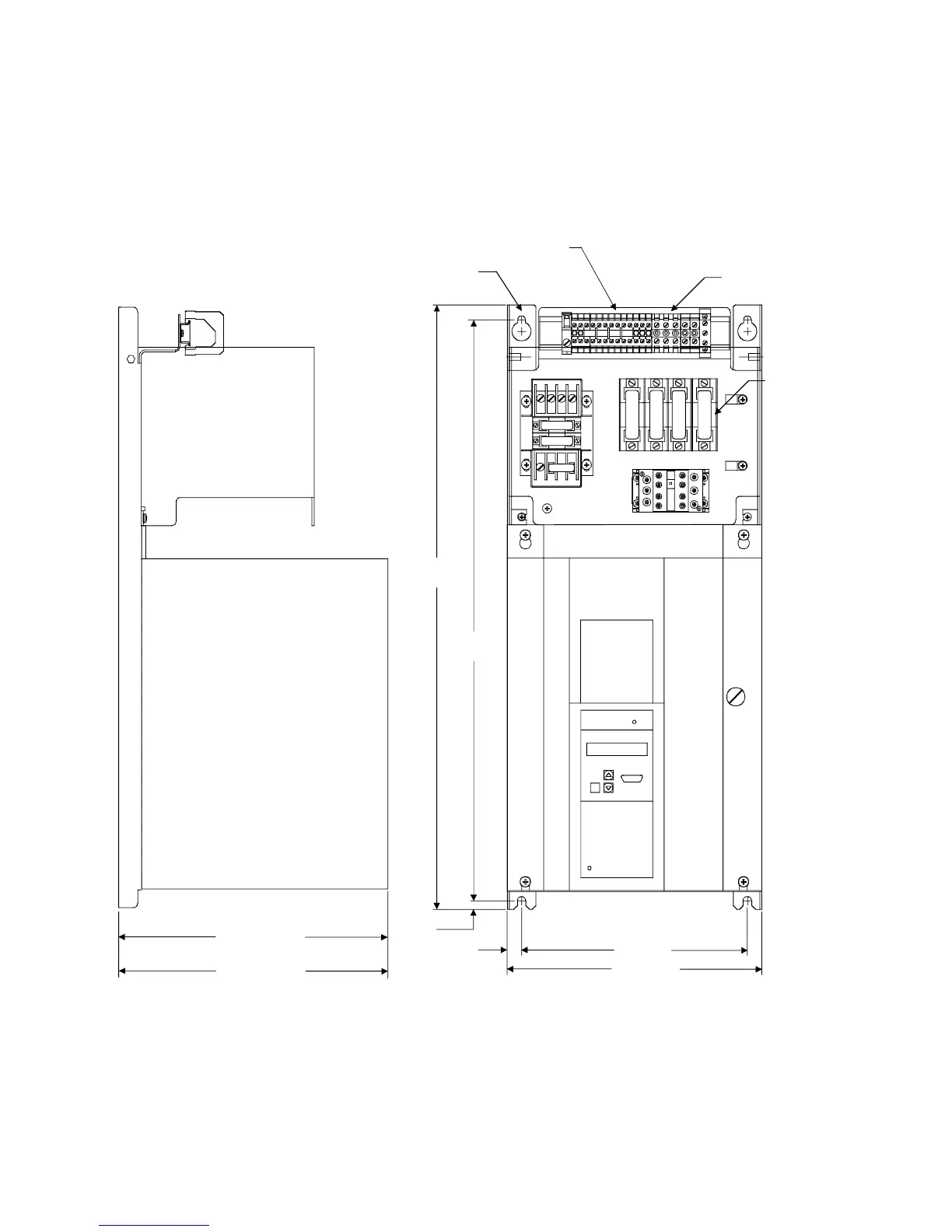

6.2 Base Drive Panel Outlines:
Dimensions are mm (inches)
P
X300
SIEMENS 6RA70
238 (9.4)
613
(24.1)
638
(25.1)
15
(0.6)
9
(0 .4 )
265 (10.4)
POWER TERMINALS
L1, L2, L3, A1, A2, GND
TERMINALS 80 - 92
15 - 30 AMP BASE DRIVE PANELS, (1 & 4Q)
268 (10.6)
(15 Amp)
339 (13.4)
(30 Amp)
MOUNTING HOLES FOR M8,
(.312"), SCREWS, 4-PLACES
FUSE NOT
SUPPLIED ON
1-QUAD UNITS
NOTE, IMPORTANT:
ALLOW AT LEAST 100 MILLIMETERS, (4"), OF CLEARANCE ABOVE AND BELOW THE UNIT
TO ENSURE UNRESTRICTED AIR FLOW. ADDITIONAL CLEARANCE MAY BE REQUIRED TO ALLOW FOR WIRE
OR CABLE ENTRY/EXIT AND BENDING. REFER TO APPLICABLE CODES FOR FURTHER INFORMATION.
