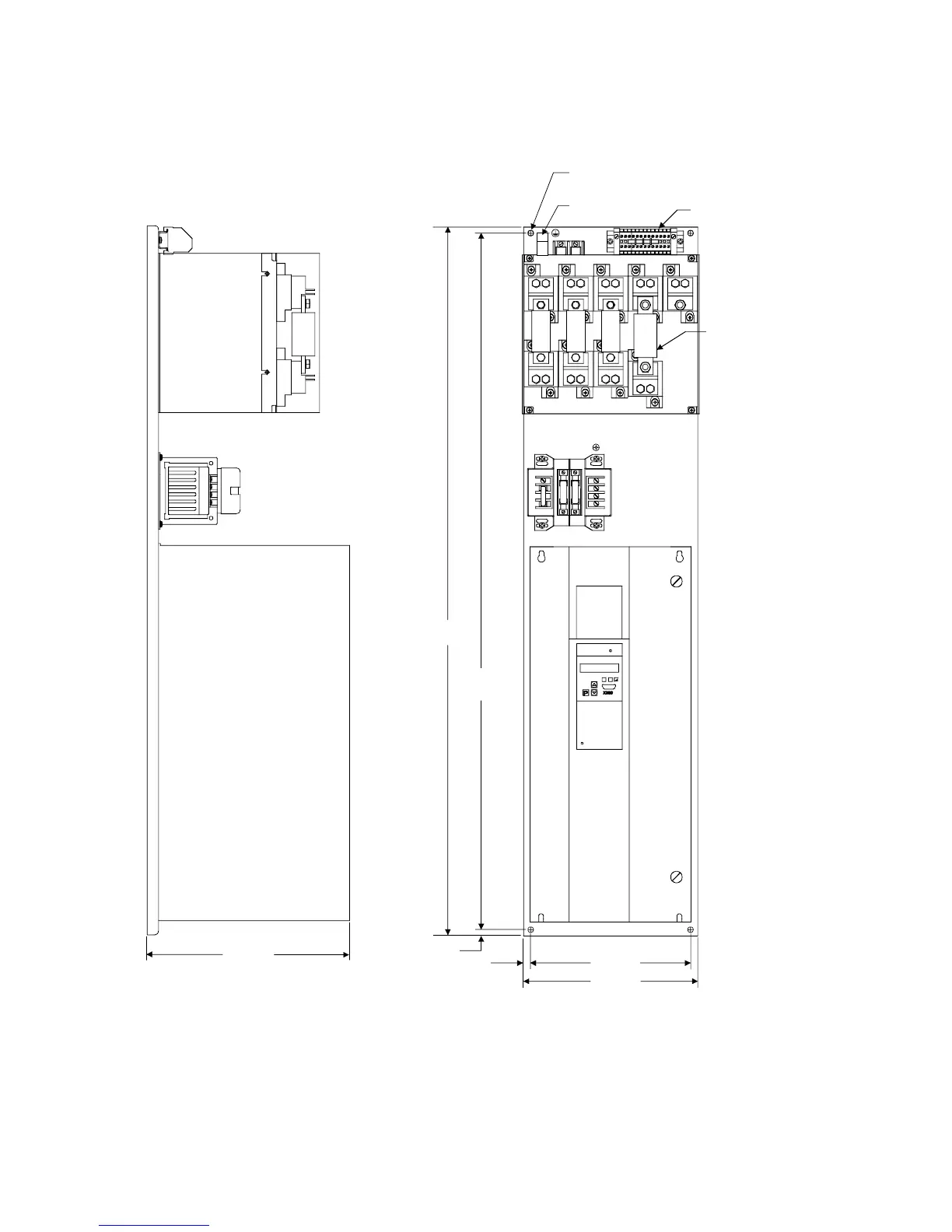

Siemens 6RA70 Series - 255 Amp Base Drive Panel Diagram

Siemens Energy & Automation 6-7
SIMOREG DC Master Base Drive Panel Operating Instructions
Dimensions are mm (inches)
6RA70SIEMENS
TERMINALS 80 - 92
L1 L2
L3
A1
A2
266 (10.5)
10
(0.4)
290 (11.4)
12
(0.45)
1160
(45.7)
1180
(46.5)
331 (13.0)
255 AMP BASE DRIVE PANEL, (1 & 4Q)
GROUND
TERMINAL
MOUNTING HOLES FOR M8,
(.312"), SCREWS, 4-PLACES
FUSE NOT
SUPPLIED ON
1-QUAD UNITS
NOTE, IMPORTANT:
ALLOW AT LEAST 100 MILLIMETERS, (4"), OF CLEARANCE ABOVE AND BELOW THE UNIT
TO ENSURE UNRESTRICTED AIR FLOW. ADDITIONAL CLEARANCE MAY BE REQUIRED TO ALLOW FOR WIRE
OR CABLE ENTRY/EXIT AND BENDING. REFER TO APPLICABLE CODES FOR FURTHER INFORMATION.
