Siemens CLINITEK Status+ User Manual

CLINITEK Status+ Analyzer Operator’s Guide 15
Introduction
6. Feed the edge of the paper through the printer cover.
7. Push the paper holding arm down in the closed position (see
Figure 1-4).
8. Close the paper roll and printer covers by clicking them into
position.
Note By default, the analyzer automatically prints the test results.
To disable the automatic print function, see Section 7, System
Configuration, Changing the System Settings‚ page 107.

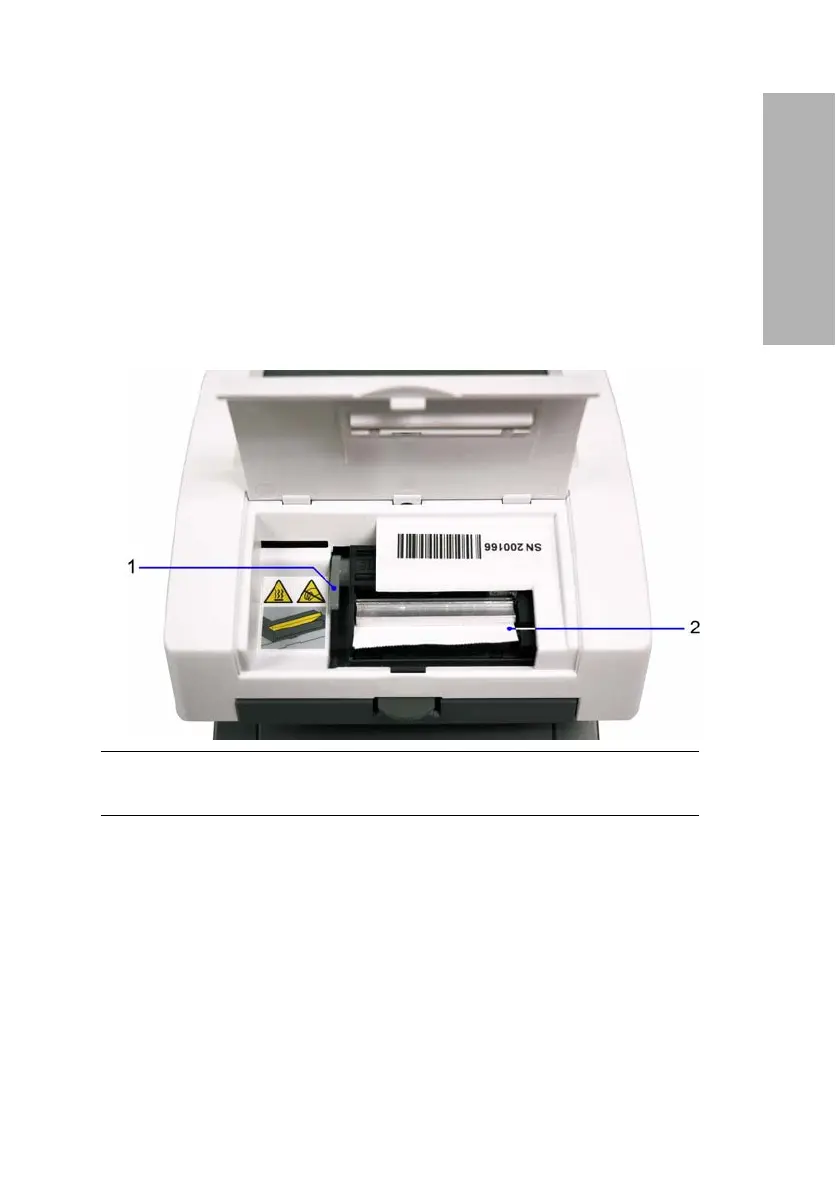

Figure 1-4: Printer Paper Compartment
1 Paper holding arm
2 Printer paper

Siemens CLINITEK Status+ Specifications

General

Display	LCD
Sample Type	Urine
Measurement Method	Reflectance photometry
Type	Urinalysis Analyzer
Test Types	Urine Chemistry
Connectivity	RS232 port
Weight	5.0 kg
Power Supply	100-240 V AC, 50-60 Hz
Data Storage	Up to 200 patient results
Test Parameters	Leukocytes, Nitrite, Urobilinogen, Protein, pH, Blood, Specific Gravity, Ketone, Bilirubin, Glucose
Test Strips	Multistix and other compatible strips
