Siemens CLINITEK Status+ User Manual

156 CLINITEK Status+ Analyzer Operator’s Guide
Symbols
Display Icons

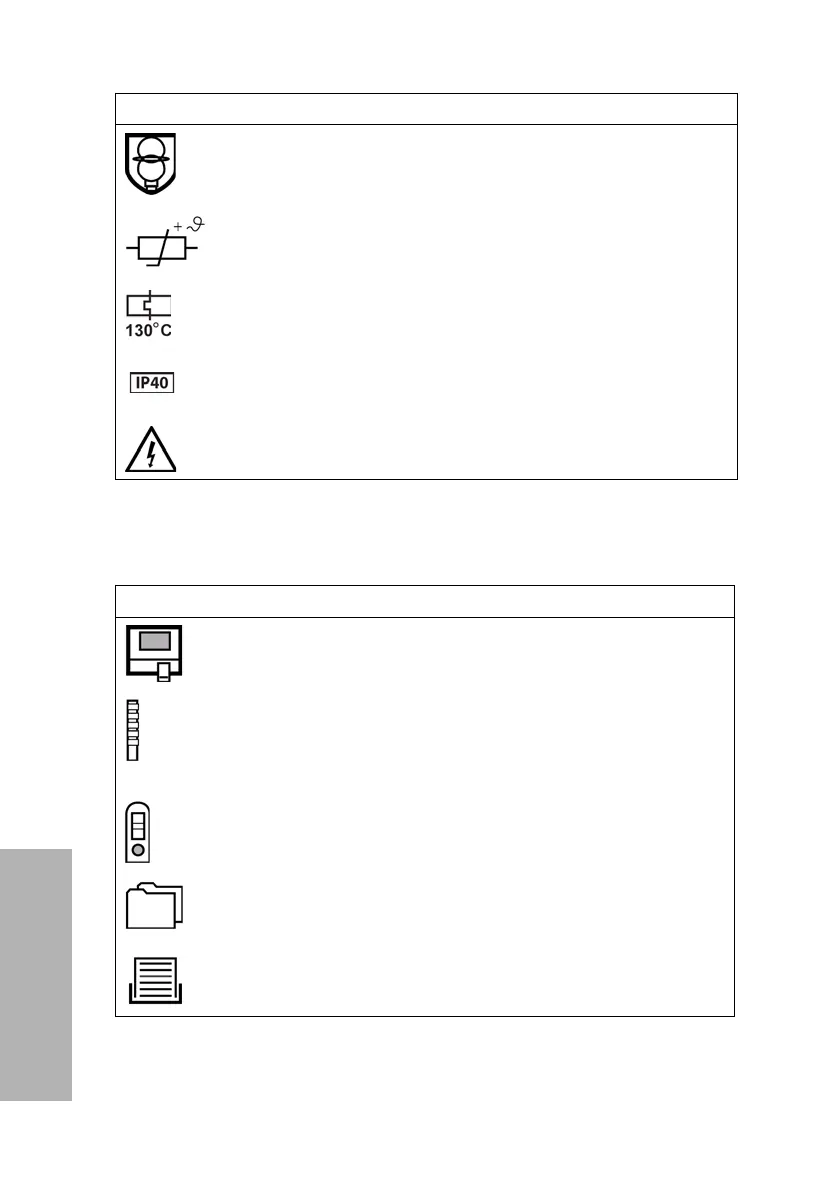

This following table contains the icons that display on the screen.
Encapsulated safety isolating transformer (short-circuit
proof)
Positive Temperature Coefficient (PTC) A thermistor
device used to protect the transformer from short-circuits
or overload. This is an auto reset device
Thermal cut-out (TCO) This safety device disconnects the
supply voltage to the transformer at a specific
temperature. The operation temperature is stated below
Ingress protection rating Protected against the entry of
solid objects >1 mm but no protection from liquids
Risk of electric shock.
Symbol Name Description
Instrument Set Up Allows you to set up the analyzer
to suit your needs.
Strip Test Runs a test with a urinalysis strip
(such as Multistix 10SG) urinalysis
test and displays the strip test
results.
Cassette Test Runs a test with a cassette
(Clinitest hCG) test and displays the
cassette test results.
Results Recall Recalls results from the analyzer
memory.
Printer Prints results.
Symbol Description

Siemens CLINITEK Status+ Specifications

General

Display	LCD
Sample Type	Urine
Measurement Method	Reflectance photometry
Type	Urinalysis Analyzer
Test Types	Urine Chemistry
Connectivity	RS232 port
Weight	5.0 kg
Power Supply	100-240 V AC, 50-60 Hz
Data Storage	Up to 200 patient results
Test Parameters	Leukocytes, Nitrite, Urobilinogen, Protein, pH, Blood, Specific Gravity, Ketone, Bilirubin, Glucose
Test Strips	Multistix and other compatible strips
