Siemens CP-8022 User Manual

Engineering via SICAM WEB
SICAM A8000 / CP-8000 • CP-8021 • CP-8022 Manual Unrestricted 417
DC8-037-2.02, Edition 10.2017

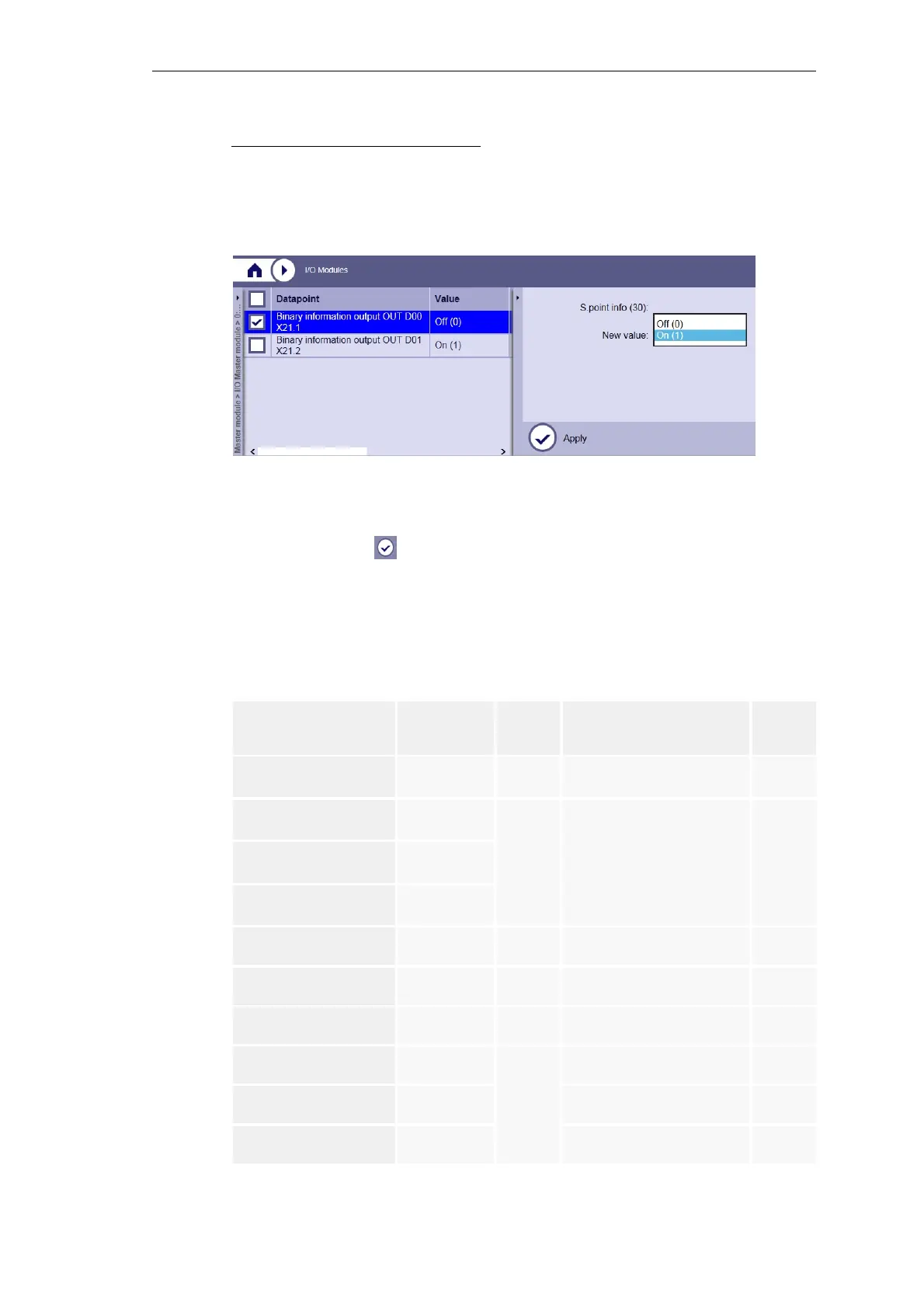

Example: single-point information output
• In the directory tree, mark the corresponding DO module
• Click on the side bar left beside the status area, if you want to extend it
• Mark the row with the desired datapoint
Control area:
• Select a “New value”
• Click on the button
The new process value is transferred to the target device and displayed in the column VALUE.
Type Identifications and Possible Values
The following type identifications and attributes are supported to force a new process value:
Type identification New value Select
before
execute
Qualifier of command Origi-
nator
Single-point information
(TI 30)
Off (0)
On (1)
Single command (TI 45) Off (0)
On (1)
No
Yes
No determination
Long command execution time
Short command execution time
Persistent command
0…255
Double command (TI 46) Off (01)
On (10)
Tap position command
(TI 47)
Lower (01)
Higher (10)
Measured value normal-
ized (TI 34)
-1…+1
-15
Measured value scaled
(TI 35)
-32768…
+32767
Measured value short
floating point (TI 36)
-1.000•10
15
…
+1.000•10
15
Setpoint command nor-
malized (TI 48)
-1…+1
-15
No
Yes
Setpoint command scaled
(TI 49)
-32768…
+32767
Setpoint command short
floating point (TI 50)
-1.000•10
15
…
+1.000•10
15
