Siemens MODULARIS Uro Plus - MUP Menu Ultrasound Device; Ultrasound Localization on SONOLINE G20

8 - 1
Siemens AG SPL1-130.840.02 Page 1 of 8 MODULARIS Uro Plus
Medical Solutions Rev. 03 04.05 CS PS 24
MUP Menu Ultrasound Device 8
Selection of the MODULARIS cross on the SONOLINE G20 8
Ultrasound localization 8
• In ultrasound localization a holder in which an ultrasound probe can be fastened is fitted
to the shock wave head.
Only the following probes can be used:
C5-2 Convex Array 3.5 MHz
• Press the “F6” key.
• Select the MUP with the trackball.
• Press the key.
• Enter the password.
• With the trackball select "Litho mode without X-ray".
• With the trackball select Save.
• Press the key.
• Deselect the screen saver on the SONOLINE G20 (refer to the SONOLINE G20
operating instructions).

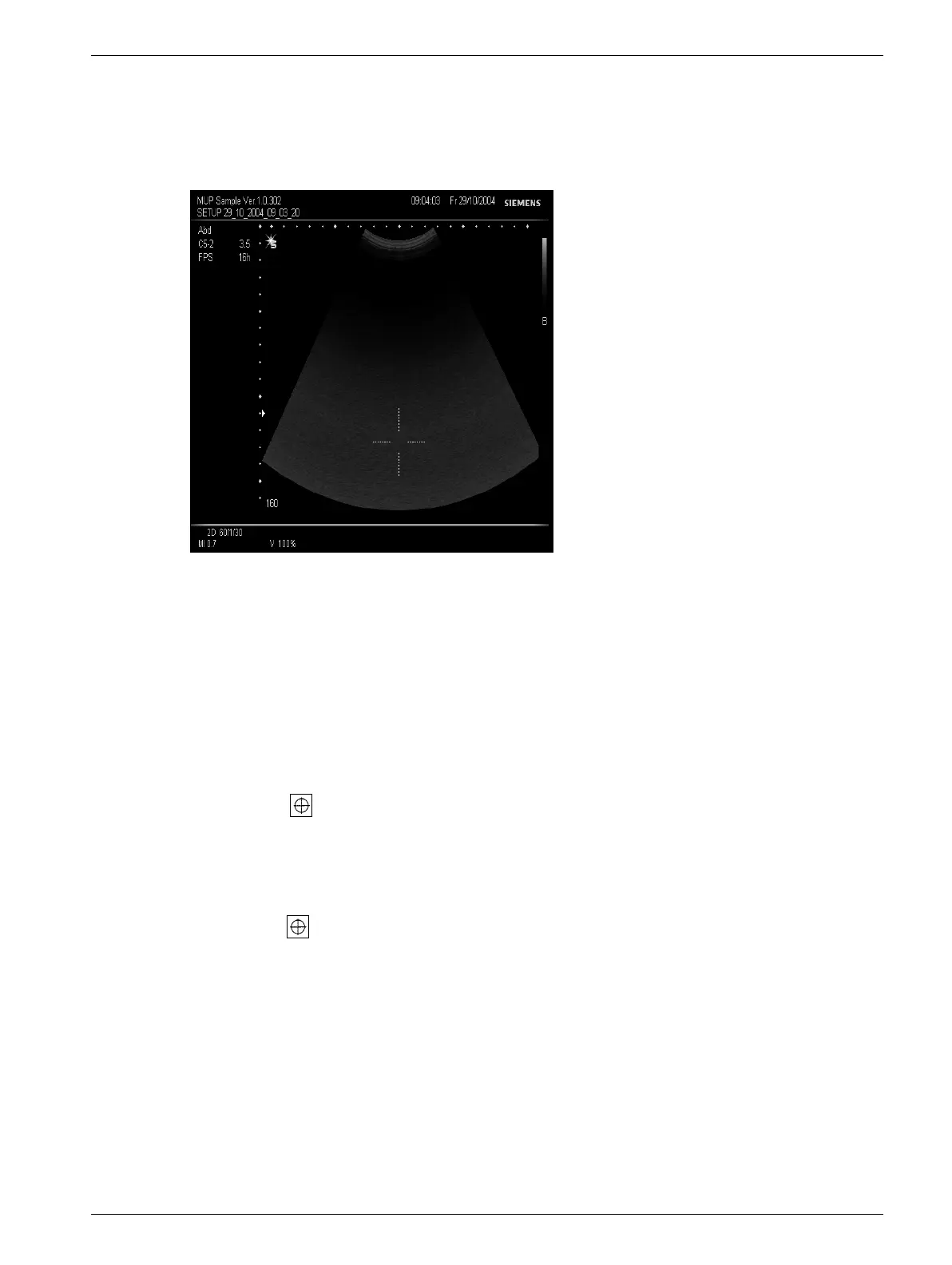

• A cross (Fig. 1) is displayed when a probe is selected.
Fig. 1
