Cooling unit 4
Checking the cooling unit 4
• Disconnect both cables at the temperature switch B1 (located on the cooling unit
underneath board D3 and the fiber optic connections).
• Connect both cables together.
• Switch the system on.
• The ventilator and compressor in the cooling unit start up - if not, check the power supply
- if o.k., replace cooling unit.
• Switch the system off.
• Reconnect both cables.

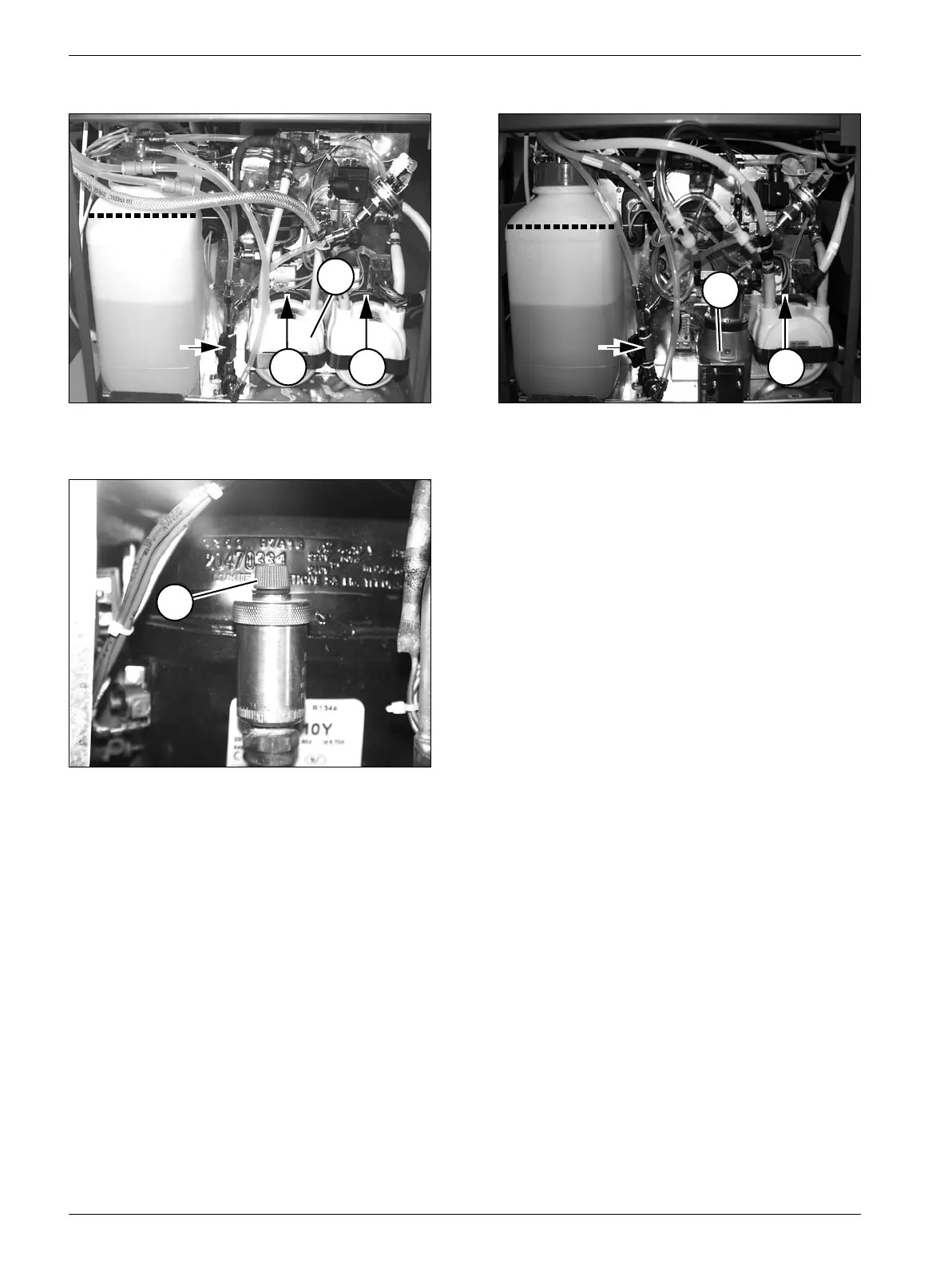

Fig. 10 Fig. 11
Fig. 12
1
Filling limit
3
Valve Y8
1 1
Valve Y8
Filling limit
2
K
