4 - 28 LITHOSTAR MODULARIS
Balancing Spring for the Support Arm 4
• Position the support arm vertically.
• Remove covers from the cart.
• Remove the cover from the column/mount for the ECG triggering.
• Remove the cover from the high voltage connector on the charge device (this simplifies
removing the spring mount).
• Remove the 3 screws (1/Fig. 34). Take out the spring mount.
• Remove the spring mount.
• Replace the balancing spring.
- If the mount is different from the ones delivered, it must be replaced as well.
- Be sure to have correct spacing (Fig. 36).
• Reinstall the spring mount.

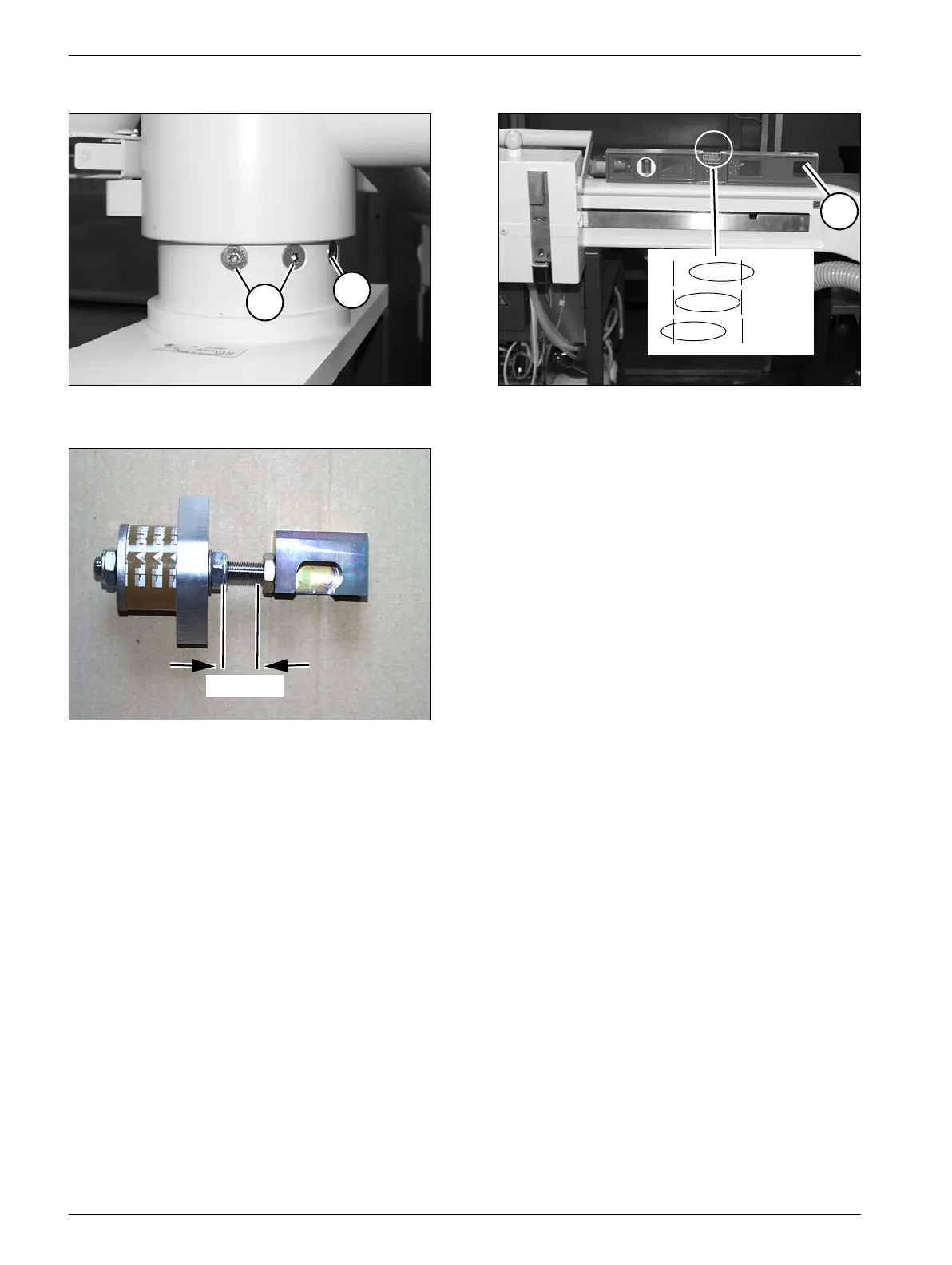

Fig. 34 Fig. 35
Fig. 36
ok
ok
not ok
1
1
1
24 -1 mm
