LITHOSTAR MODULARIS 4 - 27
Siemens AG SPL1-130.840.02 Page 27 of 34 MODULARIS Uro Plus
Medical Solutions Rev. 03 04.05 CS PS 24
• From support arm serial number 0051
- Remove all cover screws.
• Remove upper portion of covers (11/Fig. 30).
• Couple the LITHOSTAR MODULARIS to the SIREMOBIL Iso-C.
• Raise the vertical column of the SIREMOBIL Iso-C until the LITHOSTAR MODULARIS
hooks onto the docking plate of the SIREMOBIL Iso-C (12/Fig. 32).
• Loosen the lock nut (13/Fig. 33).
• Rotate the threaded nut (14/Fig. 33) to adjust the cam (15/Fig. 33) so that the switch is
rotated. Upward movement of the SIREMOBIL Iso-C is blocked.
• Tighten the lock nut (13/Fig. 33).
• Temporarily attach the braking handle.
• Lock the LITHOSTAR MODULARIS and the SIREMOBIL Iso-C together.
• Downward movement must be blocked.
If not:
- loosen the set screw (16/Fig. 33).
- rotate the lever until the switch is activated.
- tighten the set screw (16/Fig. 33).
• Reattach the covers.

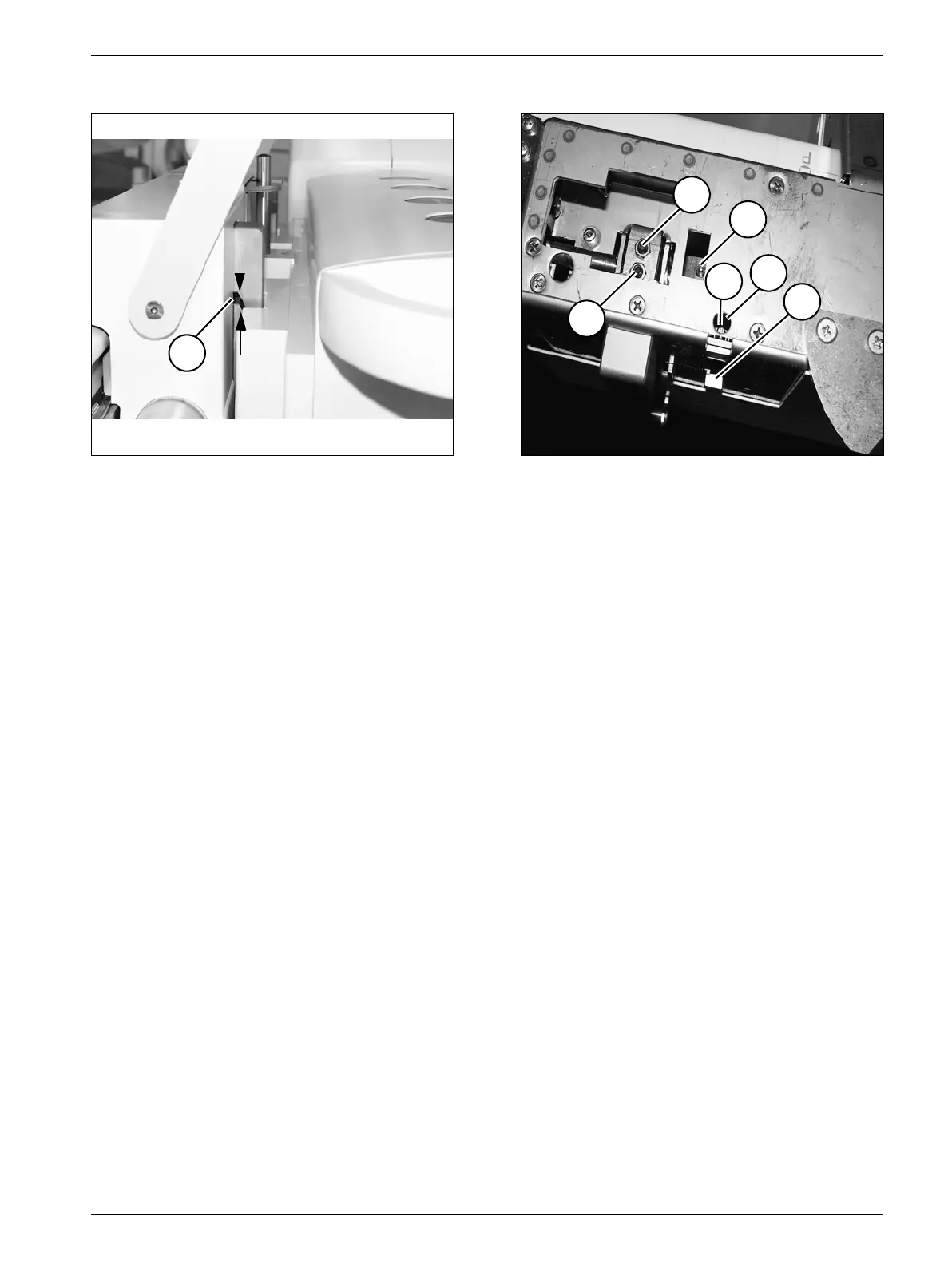

Fig. 32 Fig. 33
13
15
16
14
17
17
12
